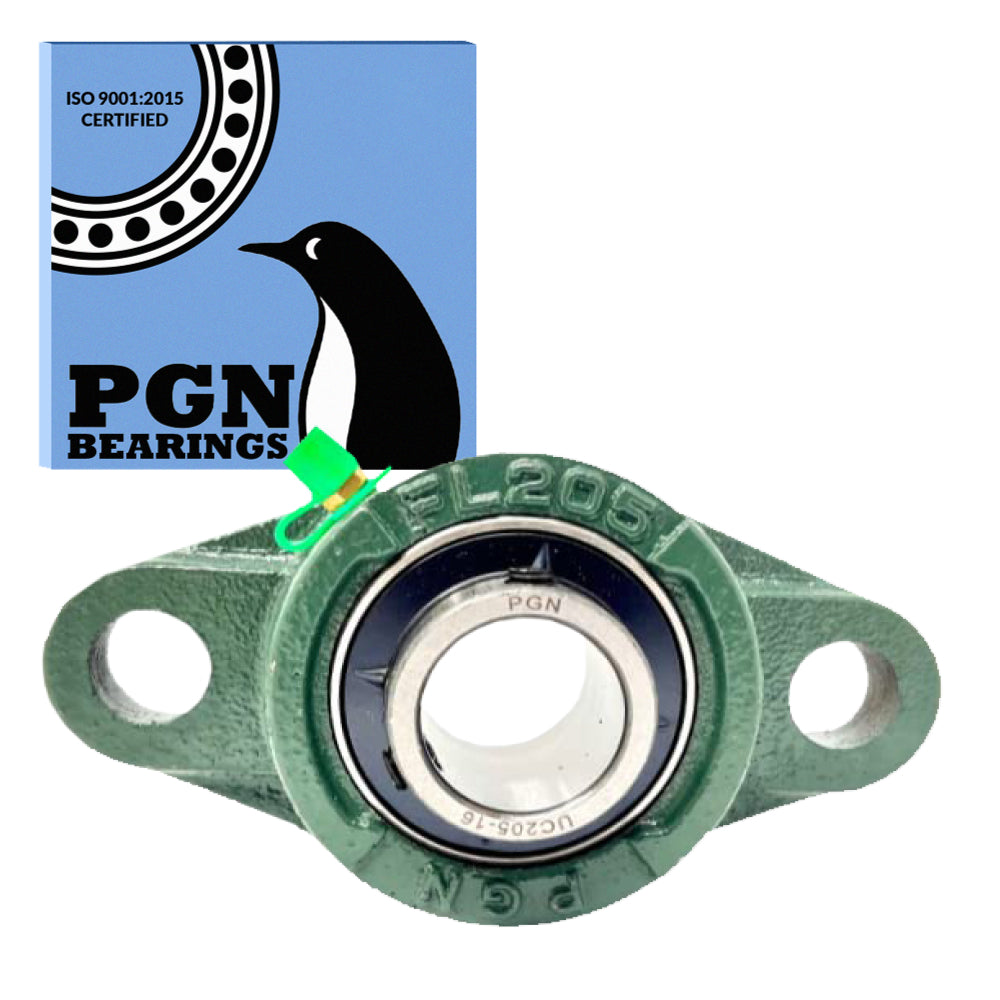

UCFL205-16 Pillow Block Flange Mounted Bearing – 1" Bore

Introduction

The UCFL205-16 Pillow Block Flange Mounted Bearing is designed for industrial applications requiring a compact, durable, and easy-to-install mounted bearing unit for 1-inch shafts. Featuring a two-bolt oval flange housing, it is an excellent solution for equipment with limited mounting space while providing reliable shaft support and long-term performance.

Its heavy-duty cast iron housing delivers excellent structural strength, while the self-aligning insert bearing accommodates minor shaft misalignment to reduce vibration and promote smooth operation. This combination helps extend bearing life while minimizing maintenance requirements in industrial environments.

With a 2,428 lb dynamic load rating, 1,771 lb static load rating, and a maximum operating speed of 5,100 RPM, the UCFL205-16 is ideal for conveyors, agricultural machinery, automated systems, packaging equipment, and light to medium-duty industrial applications.

Hero Product Snippet

Designed for compact industrial equipment, the UCFL205-16 combines a space-saving two-bolt oval flange with dependable shaft support for 1-inch shafts.

Recommended Applications

• Conveyor systems
• Packaging machinery
• Agricultural equipment
• Automated machinery
• Food processing equipment
• Textile machinery
• Power transmission systems
• Light and medium-duty industrial equipment

Compact Two-Bolt Oval Flange

The UCFL Series features a compact two-bolt oval housing that simplifies installation where mounting space is restricted while maintaining secure shaft support.

Durable Cast Iron Housing

Its cast iron housing provides excellent rigidity and vibration resistance for dependable operation in industrial and agricultural environments.

Self-Aligning Bearing Insert

The self-aligning insert bearing accommodates minor shaft misalignment, helping reduce wear while maintaining smooth equipment operation.

Reliable Load Capacity

With a 2,428 lb dynamic load rating and 1,771 lb static load rating, the UCFL205-16 offers dependable support for a wide variety of industrial machinery.

Easy Relubrication

A built-in grease fitting allows routine lubrication, helping maximize bearing life while minimizing maintenance downtime.

Key Features

• UCFL205-16 model
• Two-bolt oval flange housing
• 1" bore
• Cast iron housing
• Self-aligning insert bearing
• 2,428 lb dynamic load rating
• 1,771 lb static load rating
• Maximum speed: 5,100 RPM
• Relubricatable design
• Ideal for compact industrial machinery

FAQ

What is the difference between the UCFL205-16 and the UCF205-16?

The UCFL205-16 features a two-bolt oval flange, while the UCF205-16 uses a four-bolt square flange. The UCFL design is preferred where mounting space is limited.

Where is this bearing commonly used?

It is commonly installed in conveyors, packaging equipment, agricultural machinery, automated systems, and power transmission applications.

What material is the housing made from?

The housing is manufactured from durable cast iron.

What is its load capacity?

The unit features a 2,428 lb dynamic load rating and a 1,771 lb static load rating.

Can it compensate for shaft misalignment?

Yes. The self-aligning insert bearing accommodates minor shaft misalignment.

Is the UCFL205-16 relubricatable?

Yes. The housing includes a grease fitting for routine lubrication and easier maintenance.
