UCF208-24 Pillow Block Square Flange Mounted Bearing – 1-1/2" Bore

Introduction

The UCF208-24 Pillow Block Square Flange Mounted Bearing is designed for industrial equipment requiring increased load capacity, structural strength, and dependable long-term performance. Featuring a 1-1/2-inch bore and a four-bolt square flange housing, this mounted bearing unit provides secure shaft support for demanding power transmission and material handling applications.

Its cast iron housing delivers outstanding structural durability, while the self-aligning insert bearing helps compensate for minor shaft misalignment, reducing vibration and promoting smoother equipment operation. The four-bolt flange design ensures secure mounting and efficient load distribution, making the UCF208-24 an ideal choice for continuous-duty industrial environments.

With a 5,125 lb dynamic load rating, 4,091 lb static load rating, and a maximum operating speed of 3,300 RPM, the UCF208-24 is well suited for conveyors, agricultural machinery, processing equipment, material handling systems, and heavy-duty industrial applications.

Hero Product Snippet

Built for demanding industrial environments, the UCF208-24 delivers exceptional shaft support, high load capacity, and reliable performance for 1-1/2-inch shafts.

Recommended Applications

• Heavy-duty conveyor systems
• Agricultural machinery
• Material handling equipment
• Industrial processing machinery
• Recycling equipment
• Wood processing machinery
• Continuous production lines
• Heavy-duty power transmission systems

Designed for Larger Industrial Equipment

Its 1-1/2-inch bore makes the UCF208-24 an excellent solution for machinery requiring greater shaft support and higher load capacity.

Four-Bolt Square Flange Housing

The square flange housing provides outstanding mounting stability while distributing loads evenly across the equipment structure.

Rugged Cast Iron Housing

Manufactured from cast iron, the housing provides the durability required for demanding industrial environments and continuous-duty applications.

High Load Capacity

With a 5,125 lb dynamic load rating and 4,091 lb static load rating, this mounted bearing unit provides dependable support for heavy industrial machinery operating under continuous loads.

Self-Aligning Bearing Insert

The self-aligning insert bearing accommodates minor shaft misalignment, helping improve equipment reliability while reducing unnecessary wear.

Easy Installation and Reduced Downtime

Delivered as a complete mounted bearing unit, the UCF208-24 simplifies installation and allows maintenance teams to minimize equipment downtime.

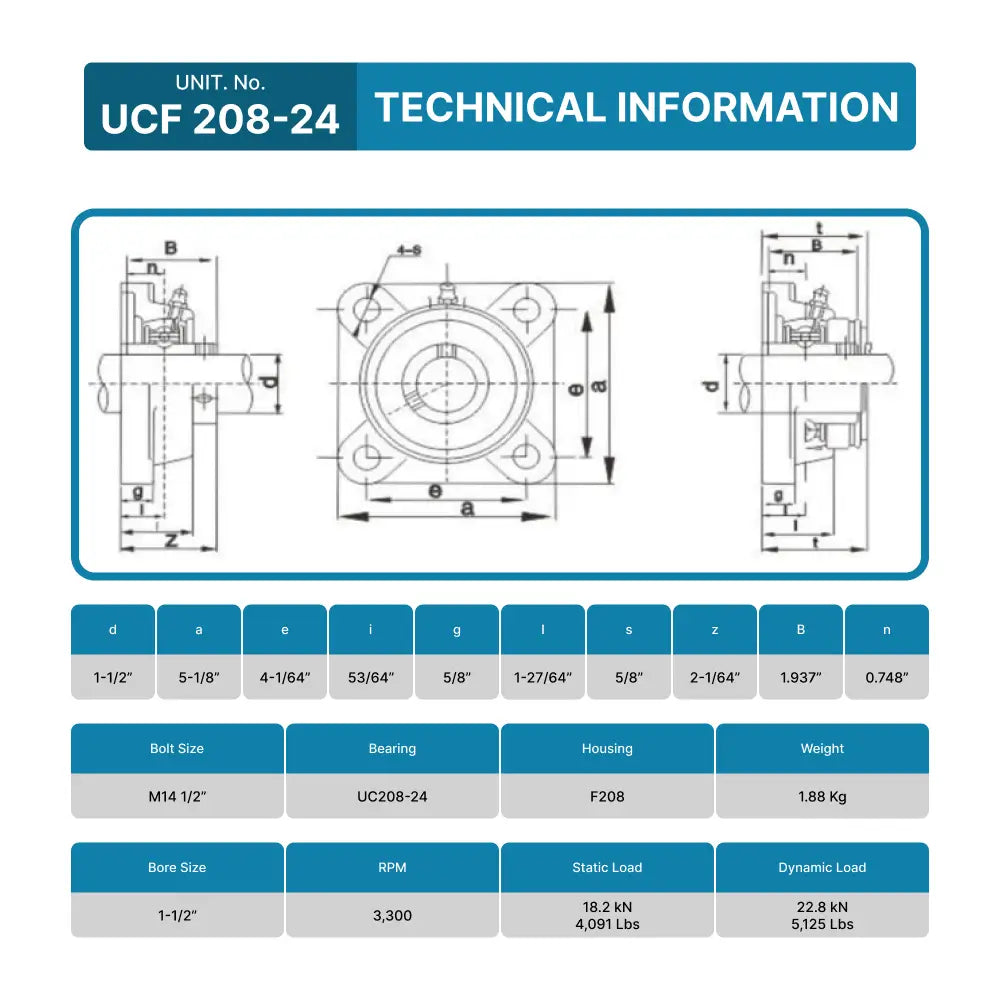

Key Features

• UCF208-24 model
• Four-bolt square flange housing
• 1-1/2" bore
• Cast iron housing
• Self-aligning insert bearing
• 5,125 lb dynamic load rating
• 4,091 lb static load rating
• Maximum speed: 3,300 RPM
• Heavy-duty construction
• Designed for continuous industrial operation

FAQ

What does UCF208-24 mean?

It identifies a UCF Series square flange mounted bearing designed for 1-1/2-inch shafts.

What applications commonly use this bearing?

It is widely used in conveyor systems, agricultural machinery, material handling equipment, processing systems, and industrial power transmission applications.

What material is the housing made from?

The housing is manufactured from durable cast iron for demanding industrial environments.

What is its load capacity?

The unit features a 5,125 lb dynamic load rating and a 4,091 lb static load rating.

Can it compensate for shaft misalignment?

Yes. The self-aligning insert bearing helps accommodate minor shaft misalignment.

Is it suitable for continuous-duty applications?

Yes. The UCF208-24 is engineered for reliable long-term operation in demanding industrial environments.
