UCF205-16 Pillow Block Square Flange Mounted Bearing – 1" Bore

Introduction

The UCF205-16 Pillow Block Square Flange Mounted Bearing is engineered for applications requiring increased load capacity, structural stability, and dependable shaft support. Featuring a 1-inch bore and a four-bolt square flange housing, this mounted bearing unit is ideal for industrial, agricultural, and commercial equipment operating under continuous-duty conditions.

Its cast iron housing provides outstanding strength, while the self-aligning insert bearing helps compensate for minor shaft misalignment, reducing vibration and promoting smoother operation. This combination makes the UCF205-16 an excellent choice for machinery that demands reliable performance with minimal maintenance.

With a 2,428 lb dynamic load rating, 1,771 lb static load rating, and a maximum operating speed of 5,100 RPM, this mounted bearing unit delivers dependable performance for conveyors, agricultural equipment, processing machinery, and power transmission systems.

Hero Product Snippet

Designed for 1-inch shaft applications, the UCF205-16 provides dependable load support, rugged durability, and secure mounting for demanding industrial environments.

Recommended Applications

• Conveyor systems
• Agricultural machinery
• Processing equipment
• Manufacturing lines
• Woodworking machinery
• Textile equipment
• Power transmission systems
• Industrial equipment

Built for 1-Inch Shaft Applications

The 1-inch bore offers an ideal balance between compact size and increased load capacity, making this mounted bearing suitable for a broad range of industrial machinery.

Four-Bolt Square Flange Housing

Its square flange housing provides secure mounting through four attachment points, helping distribute operating loads evenly across the equipment frame.

Rugged Cast Iron Housing

Manufactured with a cast iron housing, the UCF205-16 delivers the durability required for demanding industrial environments and continuous operation.

Increased Load Capacity

With a 2,428 lb dynamic load rating and 1,771 lb static load rating, this bearing unit supports medium and heavy-duty industrial applications requiring dependable shaft support.

Self-Aligning Bearing Insert

The self-aligning insert bearing accommodates minor shaft misalignment, helping extend bearing life while maintaining smooth operation.

Easy Installation and Maintenance

Delivered as a complete mounted bearing unit, the UCF205-16 simplifies installation and reduces maintenance downtime.

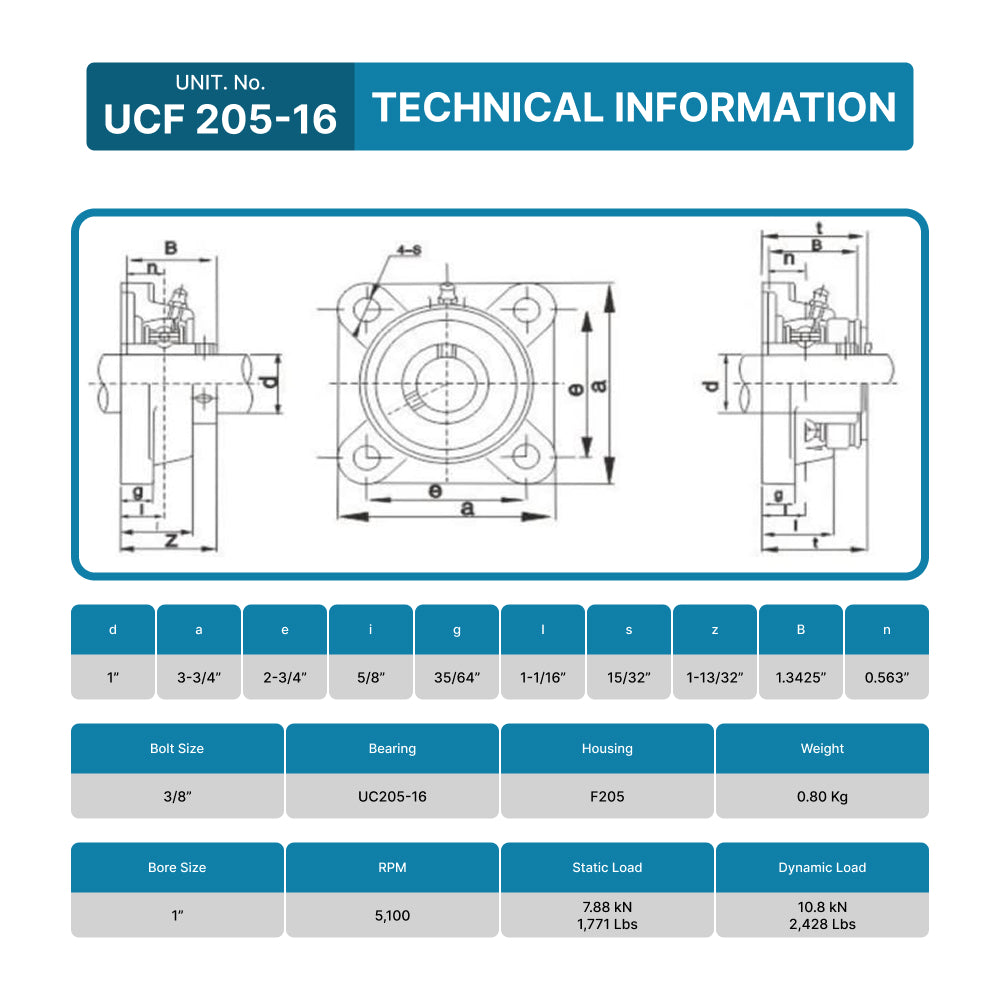

Key Features

• UCF205-16 model
• Four-bolt square flange housing
• 1" bore
• Cast iron housing
• Self-aligning insert bearing
• 2,428 lb dynamic load rating
• 1,771 lb static load rating
• Maximum speed: 5,100 RPM
• Easy installation
• Designed for continuous-duty industrial applications

FAQ

What does UCF205-16 mean?

It identifies a UCF Series square flange mounted bearing designed for 1-inch shafts.

What applications is this bearing suitable for?

It is commonly used in conveyors, agricultural equipment, processing machinery, manufacturing equipment, and power transmission systems.

What material is the housing made from?

The housing is manufactured from durable cast iron.

What is its load capacity?

The unit features a 2,428 lb dynamic load rating and a 1,771 lb static load rating.

Can it compensate for shaft misalignment?

Yes. The self-aligning insert bearing helps accommodate minor shaft misalignment.

Is it suitable for continuous-duty equipment?

Yes. It is designed for reliable long-term operation in industrial environments.
