UCF204-12 Pillow Block Square Flange Mounted Bearing – 3/4" Bore

Introduction

The UCF204-12 Pillow Block Square Flange Mounted Bearing is designed to provide dependable shaft support for 3/4-inch shafts used in industrial, agricultural, and commercial machinery. Positioned between compact bearing units and larger heavy-duty models, it offers an excellent balance of load capacity, durability, and installation flexibility for medium-duty applications.

Its rugged cast iron housing and self-aligning insert bearing provide outstanding stability while helping compensate for minor shaft misalignment. The four-bolt square flange design ensures secure mounting, making the UCF204-12 an ideal solution for conveyor systems, processing equipment, agricultural machinery, packaging equipment, and power transmission assemblies.

With a 2,221 lb dynamic load rating, 1,495 lb static load rating, and a maximum operating speed of 5,800 RPM, this mounted bearing unit delivers reliable long-term performance while minimizing maintenance requirements.

Hero Product Snippet

Built for medium-duty industrial equipment, the UCF204-12 combines a durable cast iron housing, dependable load capacity, and quick installation for reliable 3/4-inch shaft support.

Recommended Applications

• Conveyor systems
• Processing equipment
• Agricultural machinery
• Packaging equipment
• Woodworking machinery
• Manufacturing equipment
• Power transmission systems
• Commercial industrial equipment

Designed for Medium-Duty Machinery

Its 3/4-inch bore makes the UCF204-12 an excellent choice for equipment requiring greater load capacity while maintaining a compact installation footprint.

Four-Bolt Square Flange Housing

The square flange housing provides secure mounting and evenly distributes operating loads across the machine frame for improved stability.

Heavy-Duty Cast Iron Housing

Manufactured with a cast iron housing, the UCF204-12 delivers the structural strength required for demanding industrial environments.

Reliable Performance Under Continuous Operation

With a 2,221 lb dynamic load rating, 1,495 lb static load rating, and maximum operating speed of 5,800 RPM, this mounted bearing unit supports dependable operation in continuously running equipment.

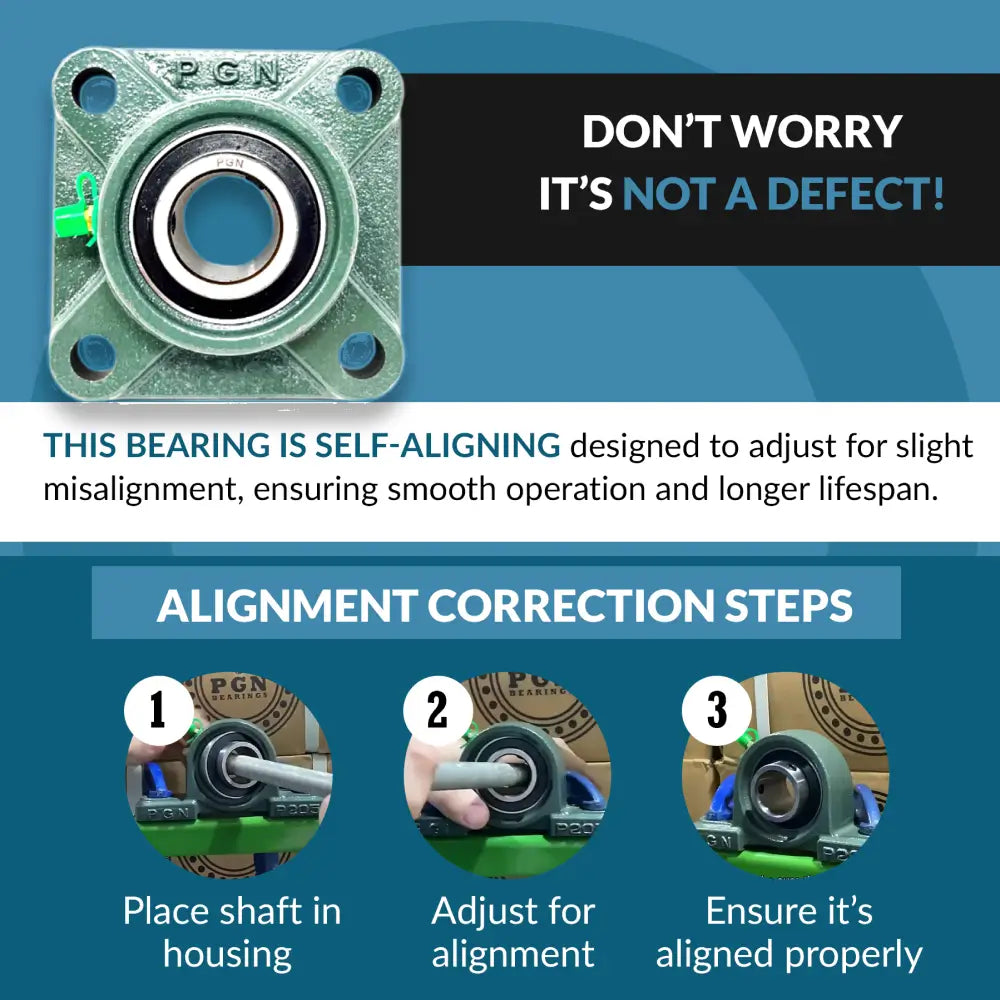

Self-Aligning Insert Bearing

The self-aligning insert bearing accommodates minor shaft misalignment, helping improve bearing life and reduce unnecessary wear.

Easy Installation and Maintenance

Supplied as a complete mounted bearing unit, the UCF204-12 simplifies installation while reducing maintenance downtime.

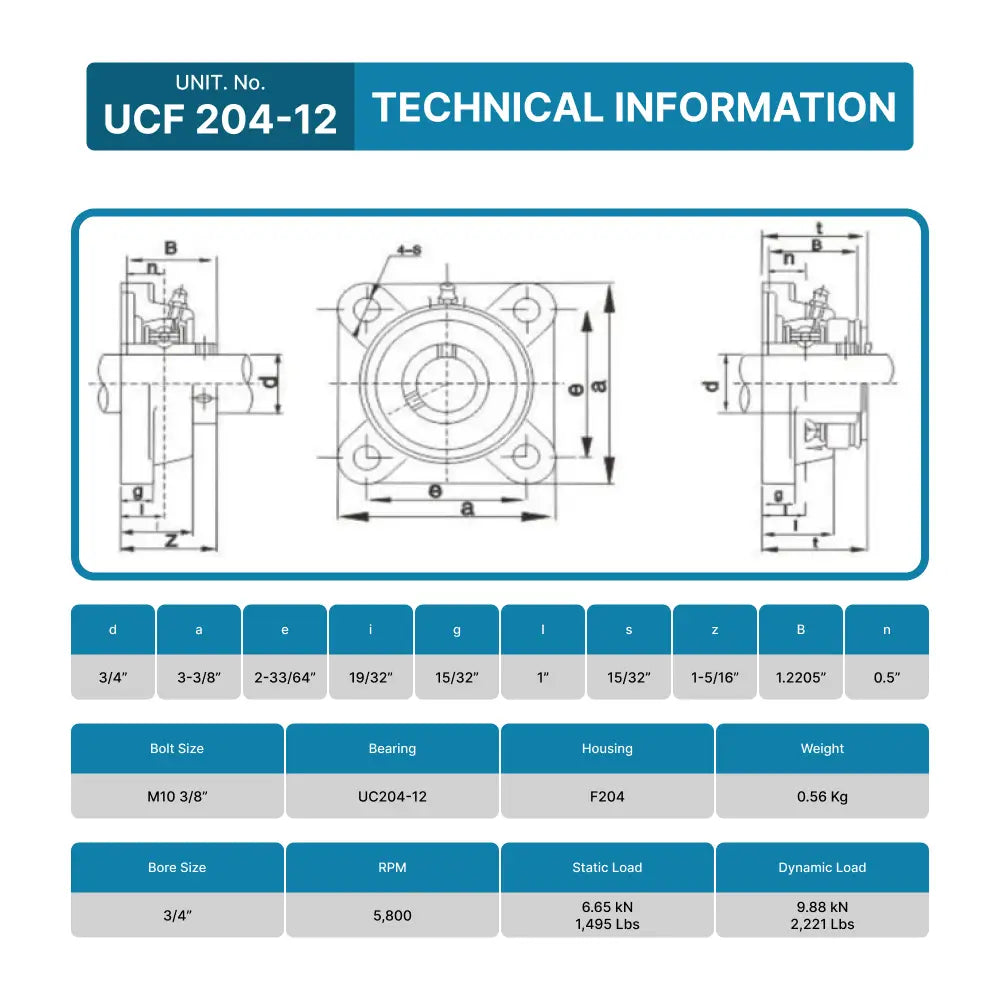

Key Features

• UCF204-12 model
• Four-bolt square flange housing
• 3/4" bore
• Cast iron housing
• Self-aligning insert bearing
• 2,221 lb dynamic load rating
• 1,495 lb static load rating
• Maximum speed: 5,800 RPM
• Easy installation
• Designed for medium-duty industrial applications

FAQ

What does UCF204-12 mean?

It identifies a UCF Series square flange mounted bearing designed for 3/4-inch shafts.

Where is this bearing commonly used?

It is commonly installed in conveyors, agricultural equipment, processing machinery, packaging systems, and manufacturing equipment.

What material is the housing made from?

The housing is manufactured from durable cast iron.

What is its load capacity?

The unit features a 2,221 lb dynamic load rating and a 1,495 lb static load rating.

Can it accommodate shaft misalignment?

Yes. The self-aligning insert bearing helps compensate for minor shaft misalignment.

Is it suitable for continuous-duty equipment?

Yes. It is designed to provide dependable performance in continuously operating industrial machinery.
