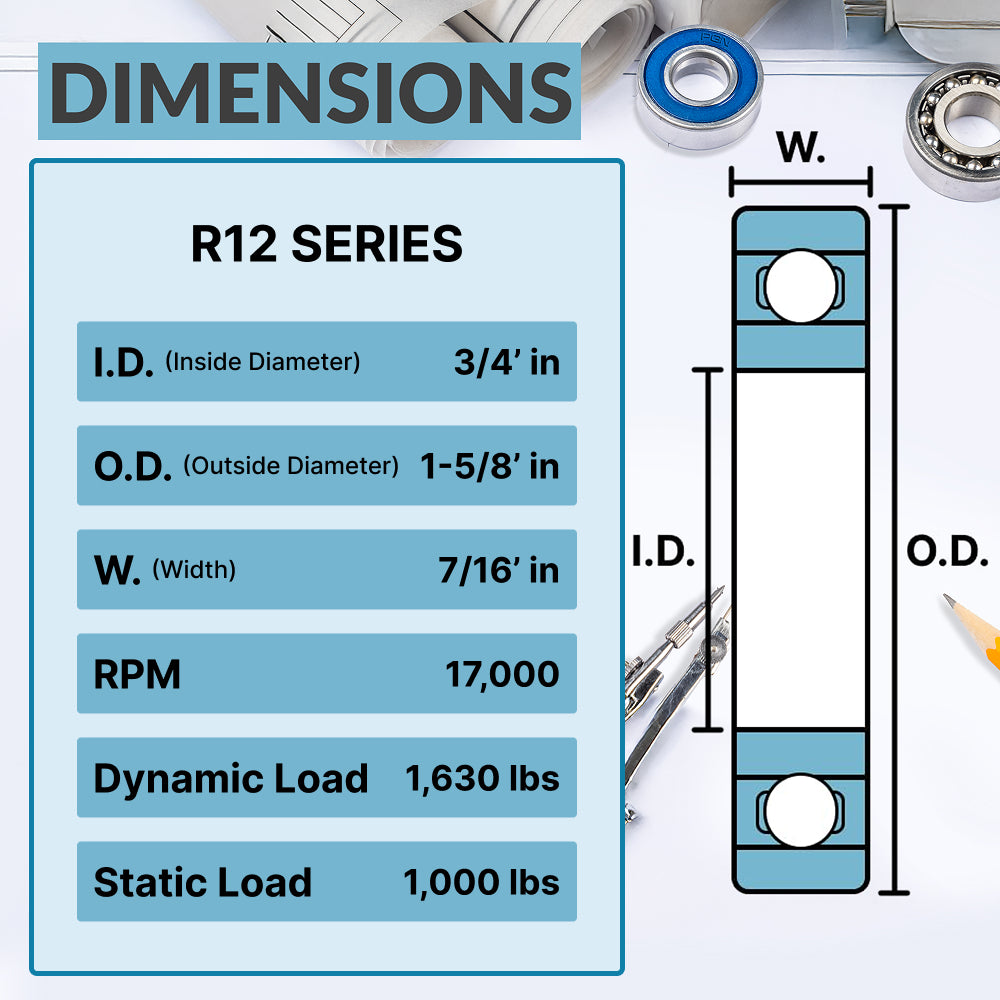

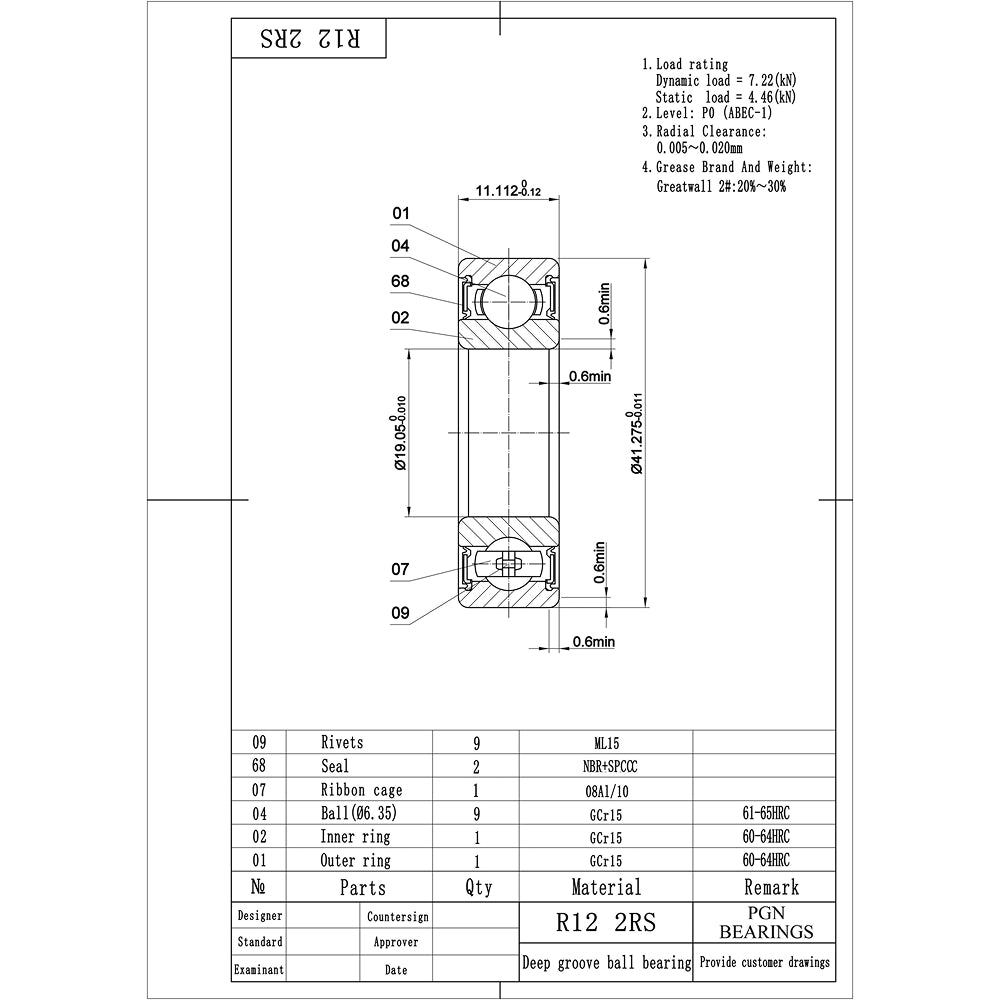

| MODEL | R12-2RS | IN DIAMETER (BORE) | 3/4" (19.05 mm) |
| TYPE | Rubber Seal on both sides | OUT. DIAMETER | 1-5/8" (41.28 mm) |
| MATERIAL | 100% Chrome Steel | RPM | 17,000 |
| CLEARANCE | C3 (Pre-Lubricated) | DYNAMIC LOAD | 7,246 N |
| WIDTH (THICKNESS) | 7/16" (11.11 mm) | STATIC LOAD | 4,445 N |
Additional Information:
PGN’s R12-2RS (3/4" x 1-5/8" x 7/16") is a single-row bearing that supports radial loads, made with Chromium Steel providing superior quality and durability.
It comes pre-lubricated and double-sealed to keep the lubricant in and contaminants, dirt, and debris out.
Image for illustration purposes only. Product may also be supplied in black.
