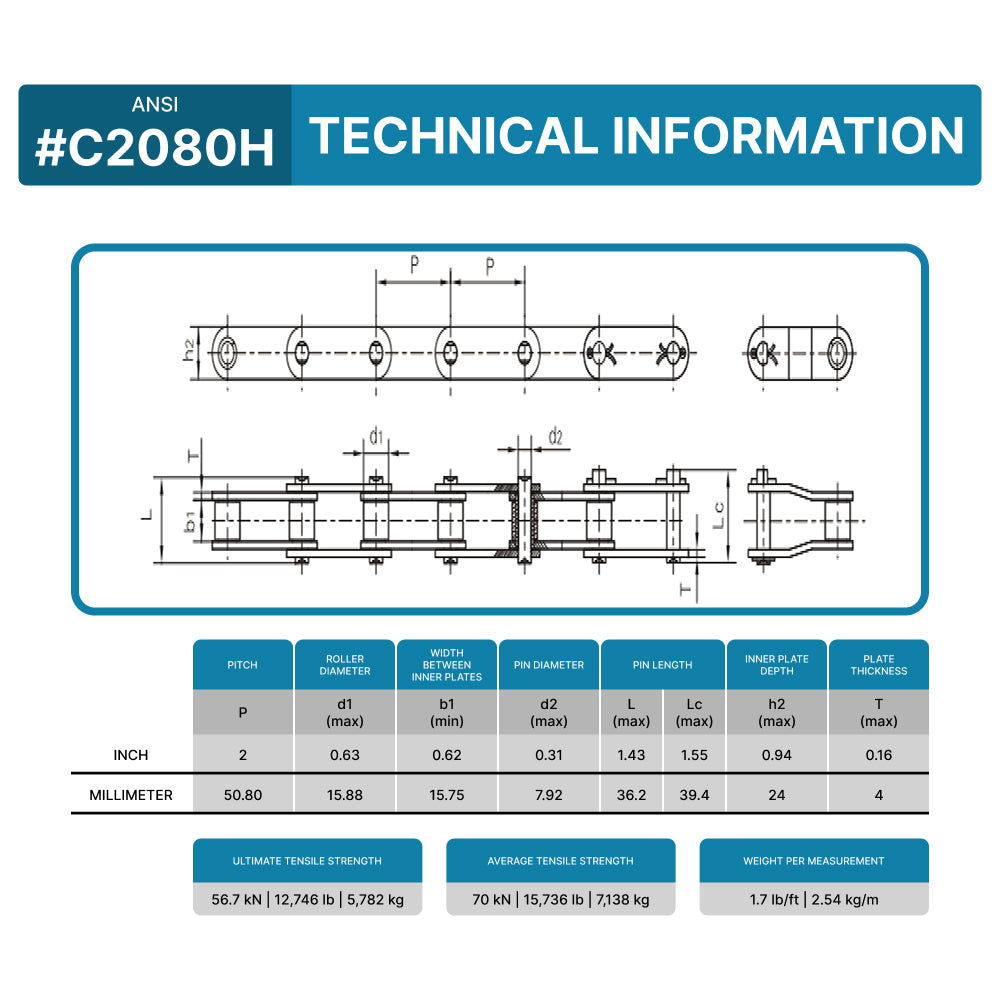

ANSI No |
#C2080 | LENGTH | 10 ft |
| PITCH | 2 inch (50.80 mm) | ROLLER DIAMETER (D1 MAX) |
0.63 inch (15.75 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.62 inch (15.75 mm) | PIN DIAMETER (D2 MAX) |
0.31 inch (7.92 mm) |
| PIN LENGTH (L MAX) |
1.29 inch (32.7 mm) | PIN LENGTH (LC MAX) |
1.44 inch (36.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.94 inch (24 mm) | PLATE THICKNESS (T MAX) |
0.13 inch (3.25 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
56.7/12746 kN/LB | WEIGHT | 2.54 kg/m |
