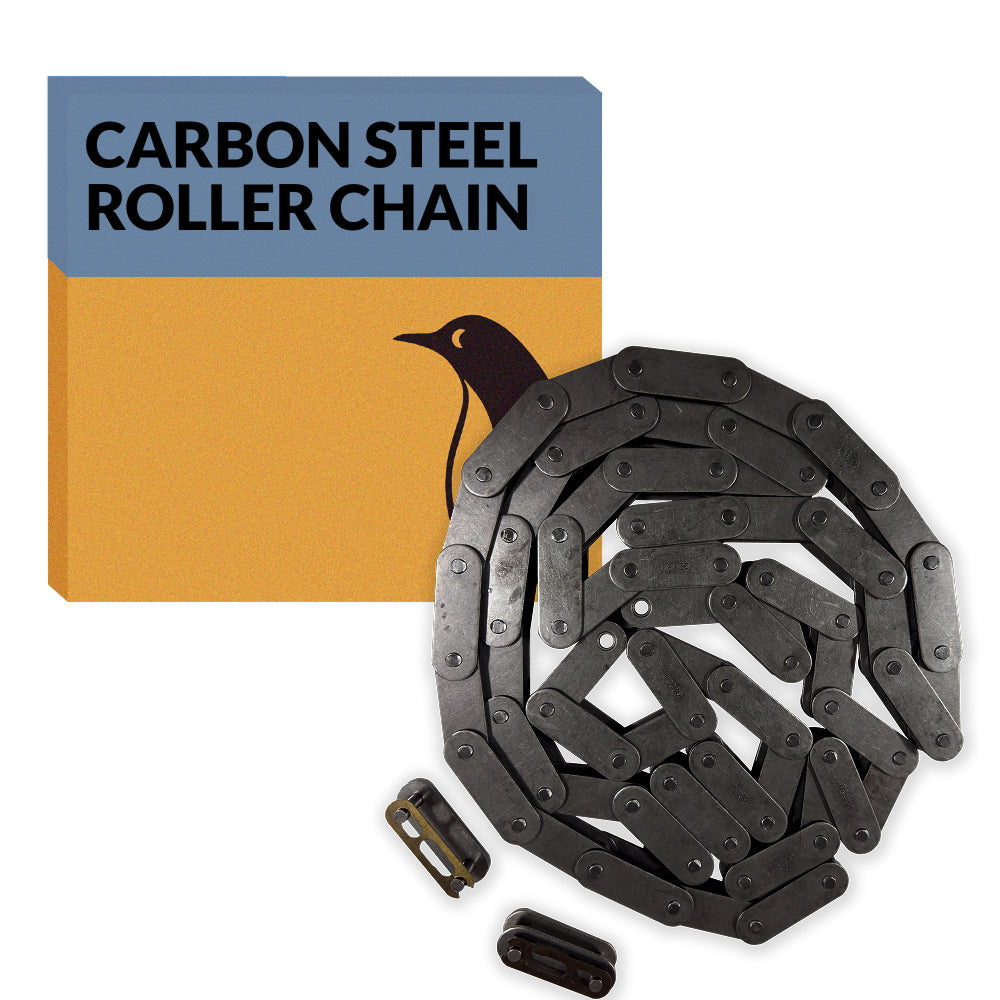

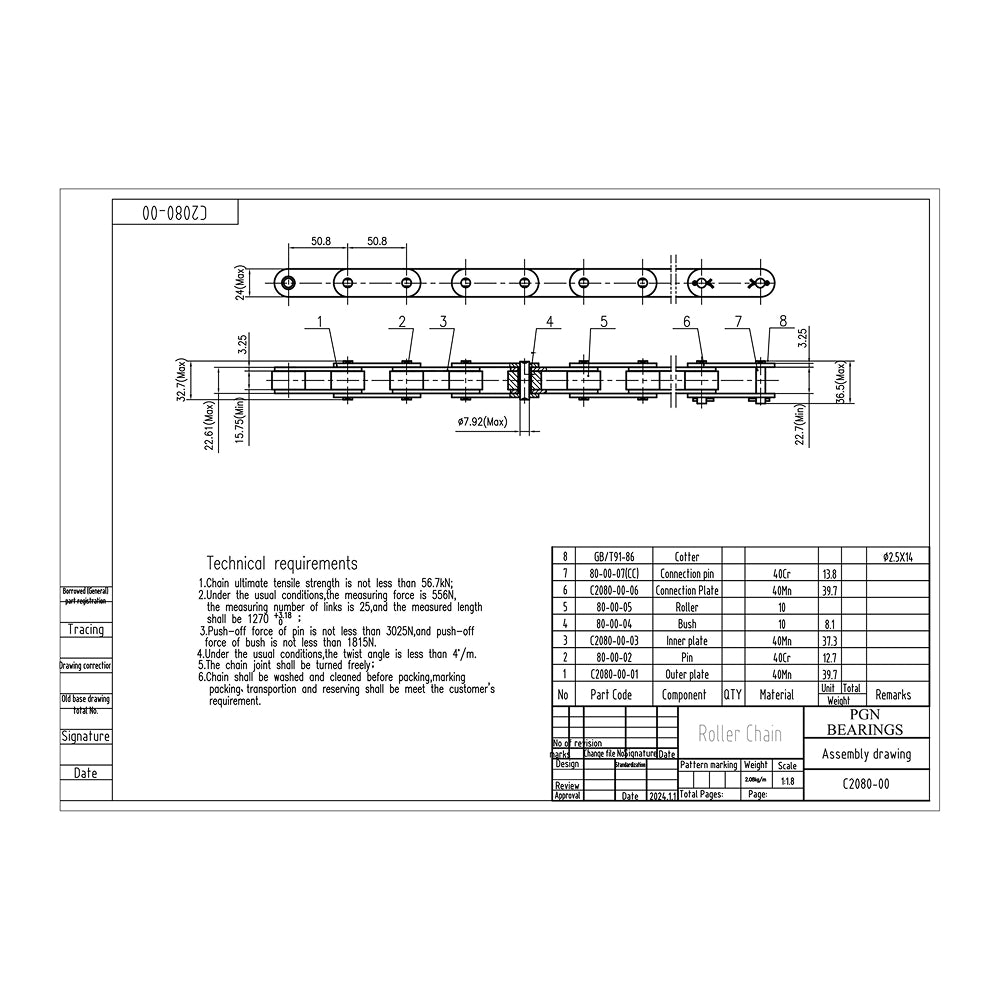

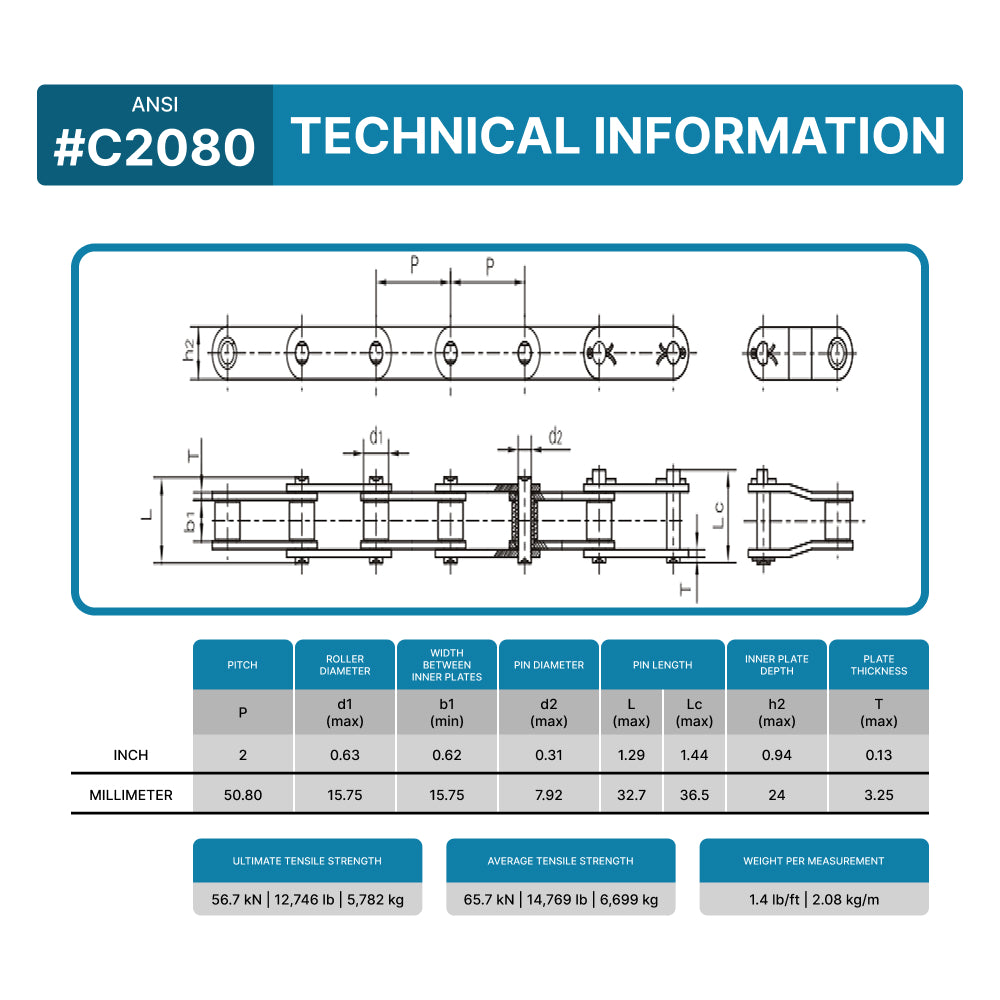

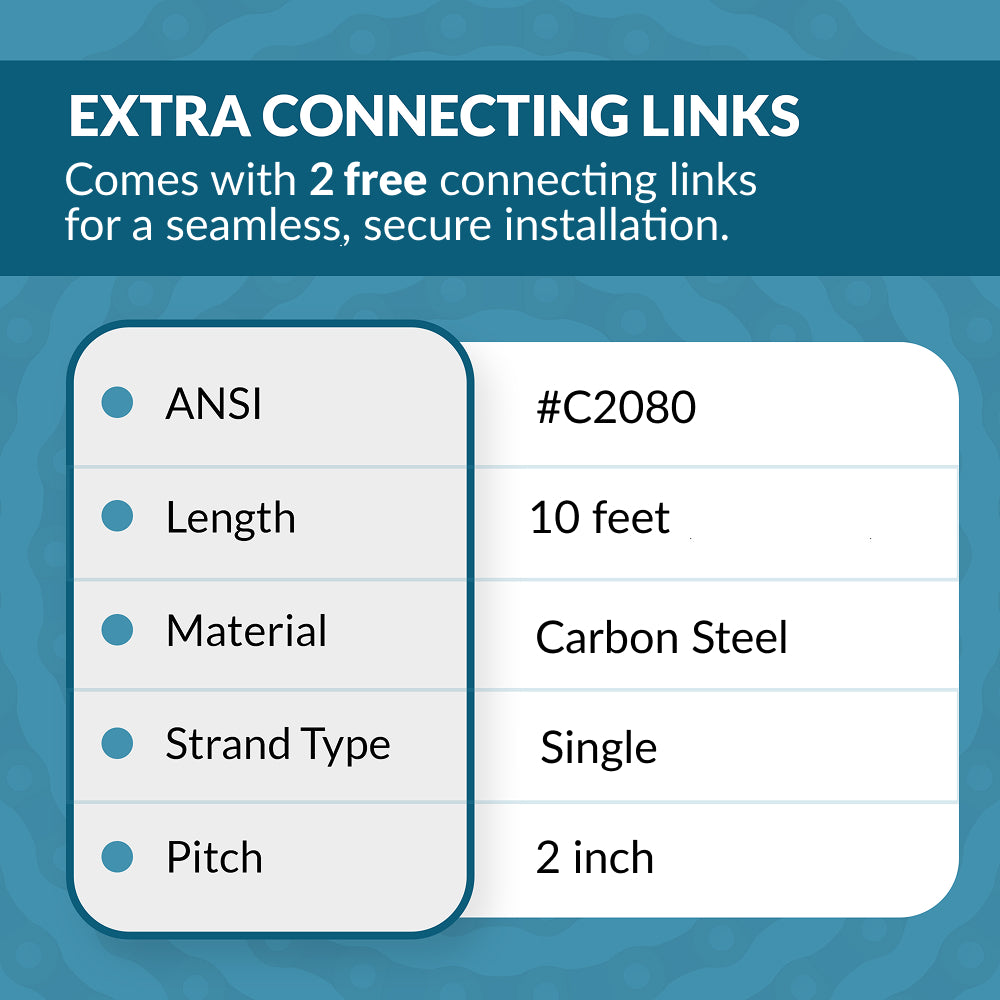

ANSI Chain No.: #C2080
Lenght: 10 feet
Pitch (P): 2 inch (50.80 mm)
Roller Diameter (d1 max): 0.63 inch (15.75 mm)
Width Between Inner Plates (b1 min): 0.62 inch (15.75 mm)
Pin Diameter (d2 max): 0.31 inch (7.92 mm)
Pin Lenght (L max): 1.29 inch (32.7 mm)
Pin Lenght (Lc max): 1.44 inch (36.5 mm)
Inner Plate Depth (h2 max): 0.94 inch (24 mm)
Plate Thickness (T max): 0.13 inch (3.25 mm)
Ultimate Tensile Strenght (Q min): 56.7/12746 kN/LB
Average Tensile Strenght (Qo): 65.7 kN
Weight (q): 2.08 lb/ft (0.94 kg/m)
