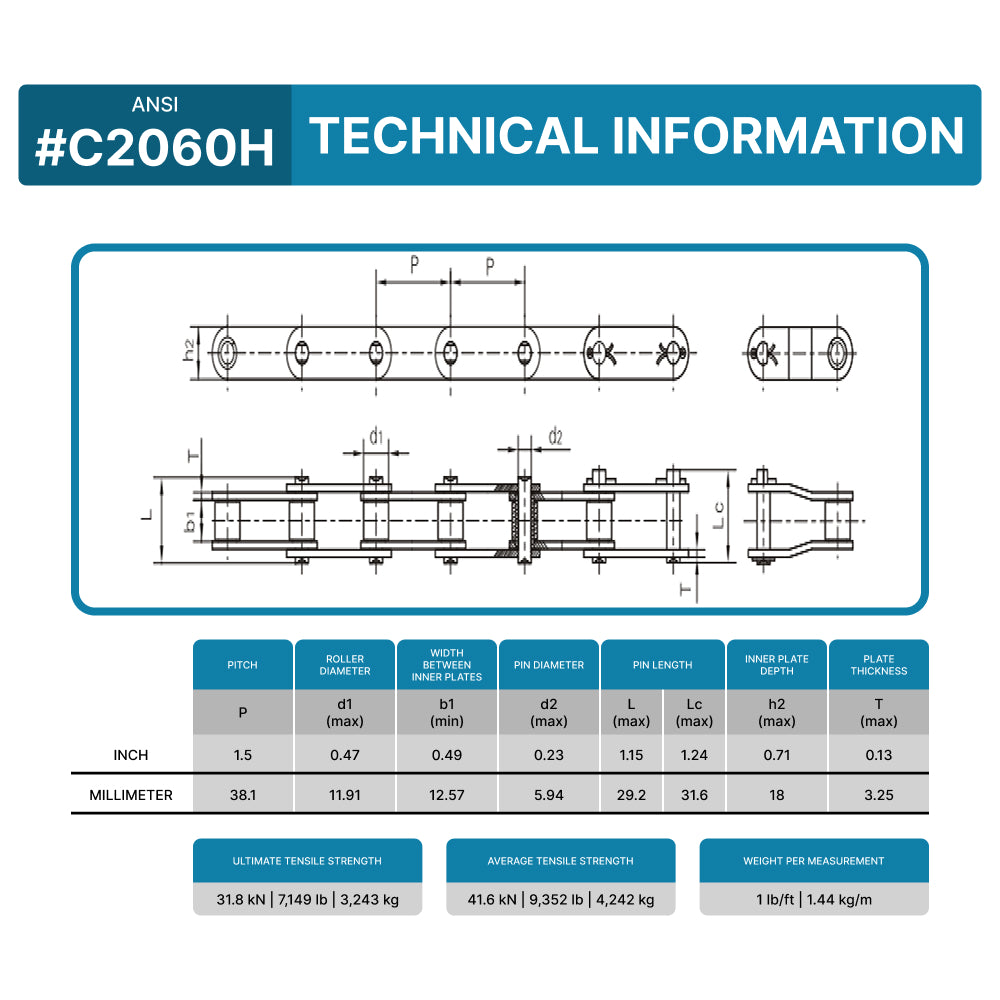

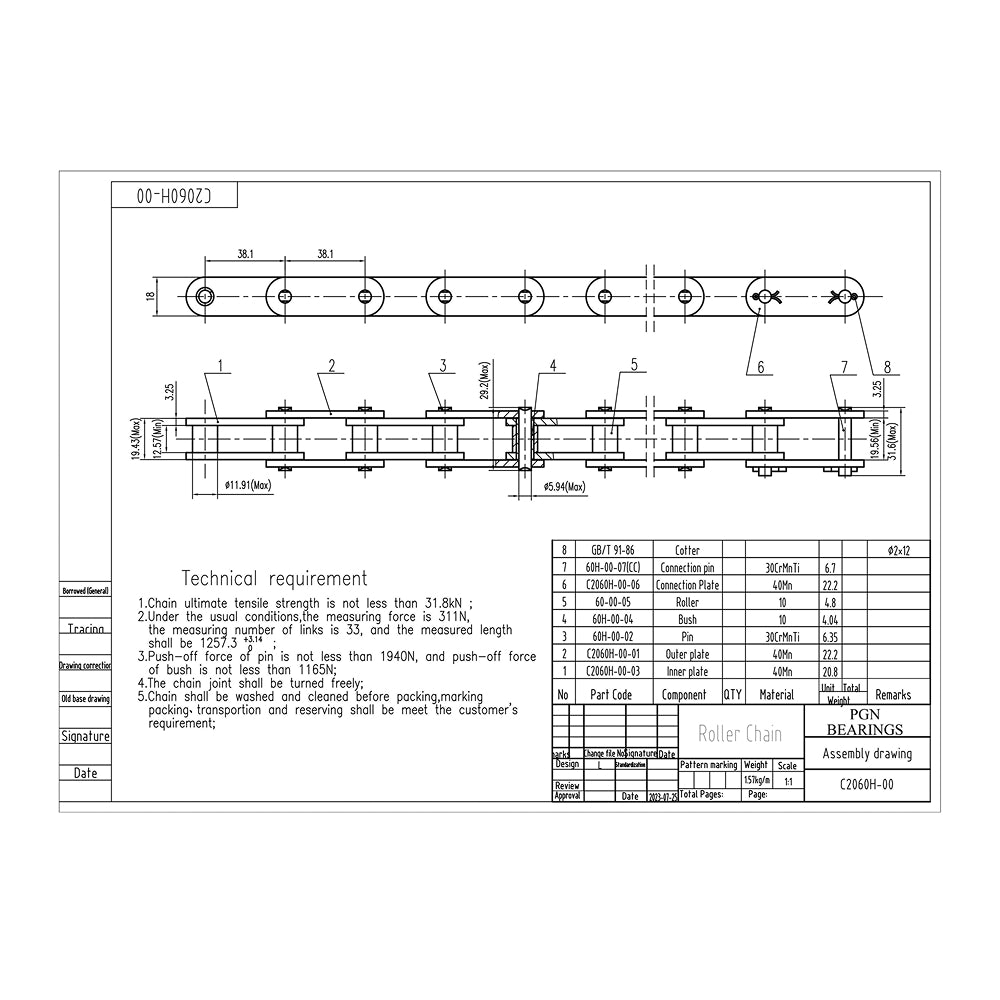

ANSI No |
#C2060H | LENGTH | 10 ft |
| PITCH | 1.5 inch (38.1 mm) | ROLLER DIAMETER (D1 MAX) |
0.46 inch (11.91 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.49 inch (12.57 mm) | PIN DIAMETER (D2 MAX) |
0.23 inch (5.94 mm) |
| PIN LENGTH (L MAX) |
1.01 inch (25.9 mm) | PIN LENGTH (LC MAX) |
1.09 inch (27.7 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.70 inch (18 mm) | PLATE THICKNESS (T MAX) |
0.09 inch (2.42 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
31.8/7227 kN/LB | WEIGHT | 1.02 lb/ft (0.46 kg/m) |
