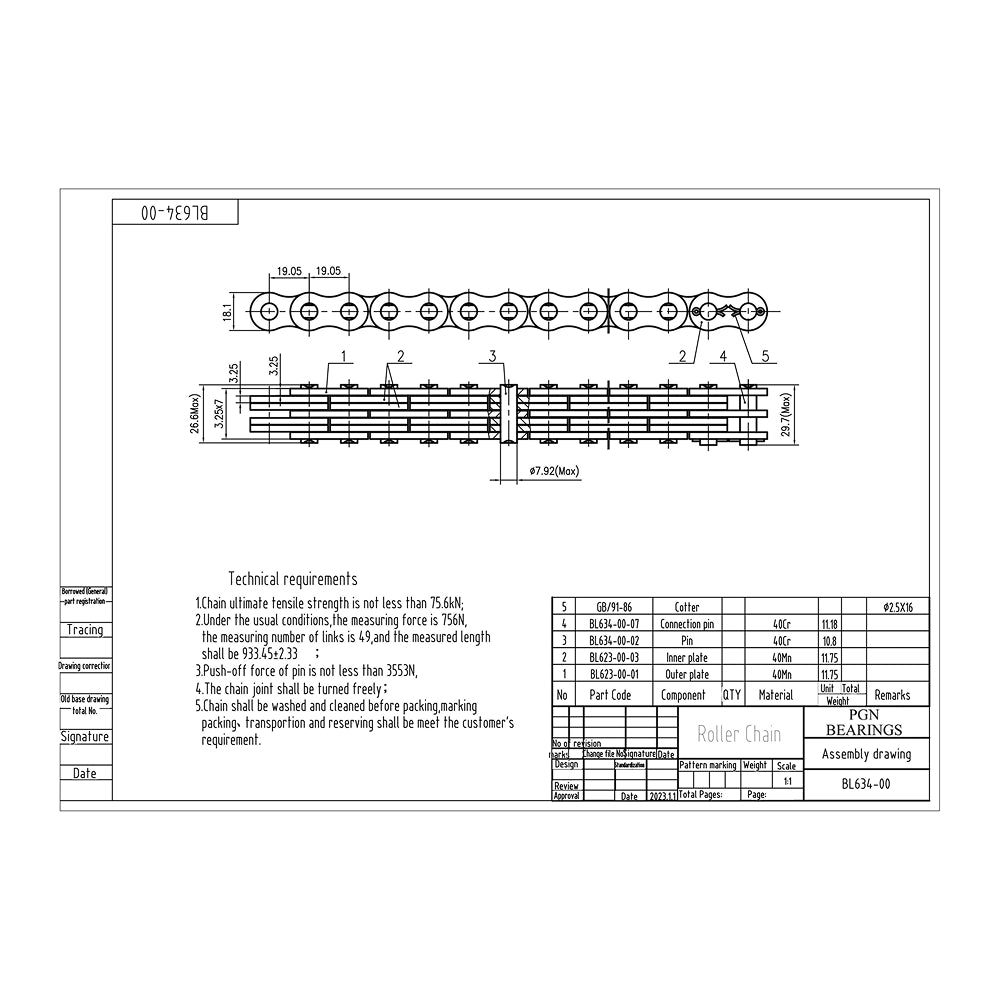

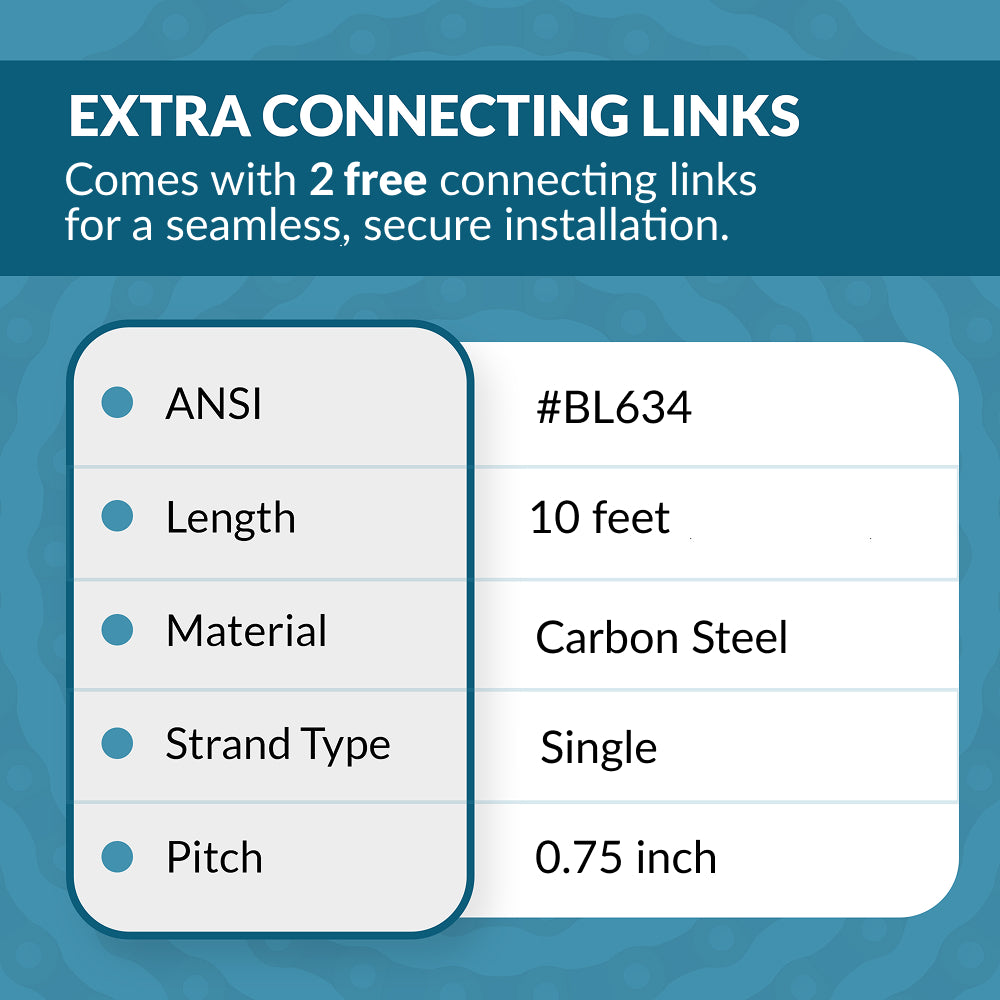

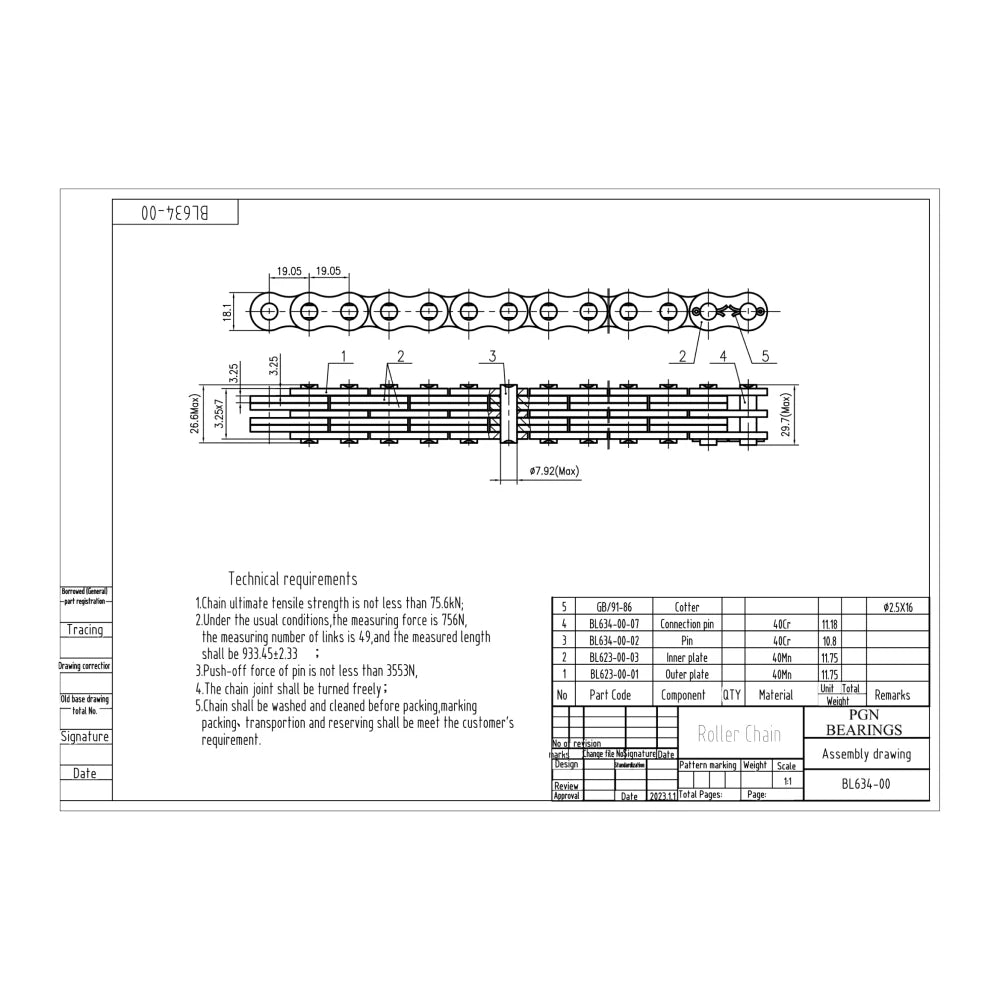

ANSI Chain No.: #BL634
Lenght: 10 feet

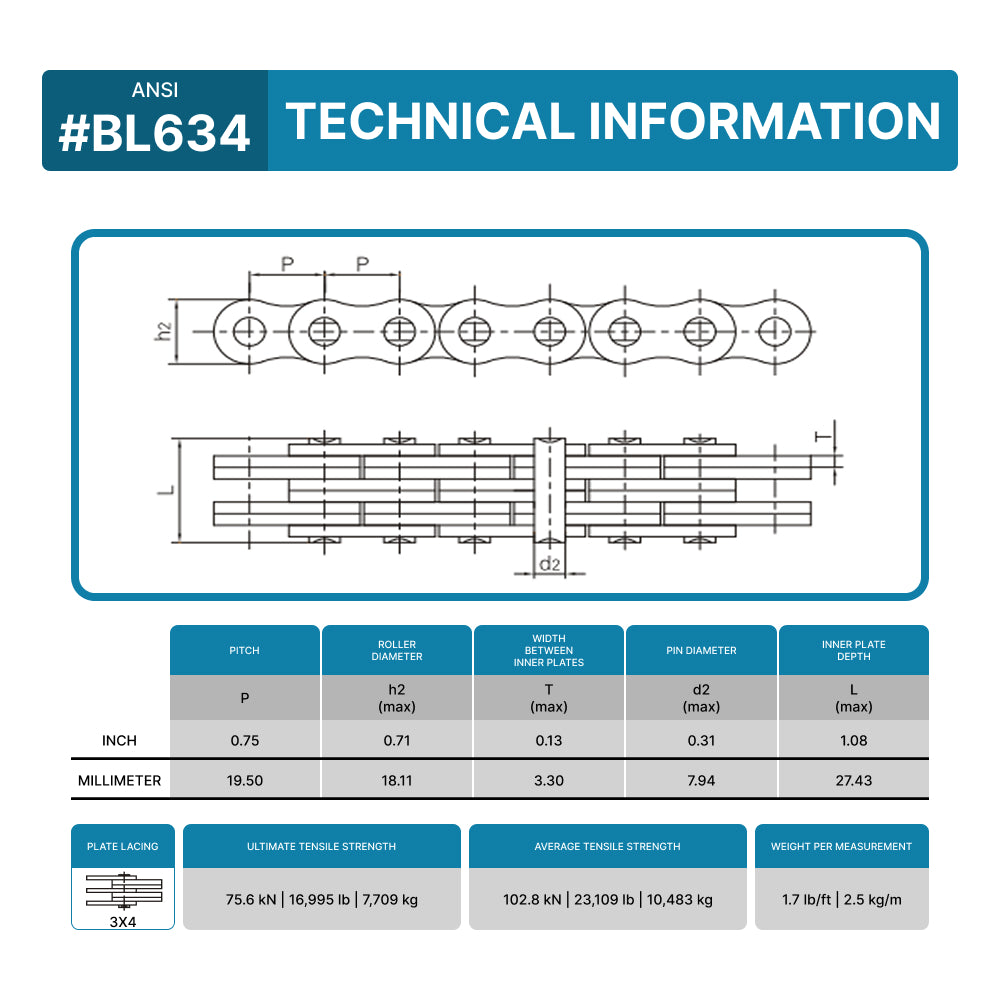

Pitch (P): 0.76 inch (19.5 mm)
Plate Lacing: 3x4
Inner Plate Depth (h2 max): 0.71 inch (18.11 mm)
Plate Thickness (T max): 0.12 inch (3.30 mm)
Pin Diameter (d2 max): 0.31 inch (7.94 mm)
Pin Lenght (L max): 1.07 inch (27.43 mm)
Ultimate Tensile Strenght (Q min): 75.6/17181 kN/LB
Average Tensile Strenght (Qo): 102.8 kN
Weight (q): 2.5 lb/ft (1.133 kg/m)
Lenght: 10 feet
Pitch (P): 0.76 inch (19.5 mm)
Plate Lacing: 3x4
Inner Plate Depth (h2 max): 0.71 inch (18.11 mm)
Plate Thickness (T max): 0.12 inch (3.30 mm)
Pin Diameter (d2 max): 0.31 inch (7.94 mm)
Pin Lenght (L max): 1.07 inch (27.43 mm)
Ultimate Tensile Strenght (Q min): 75.6/17181 kN/LB
Average Tensile Strenght (Qo): 102.8 kN
Weight (q): 2.5 lb/ft (1.133 kg/m)
