ANSI No |
#88K | LENGTH | 10 ft |

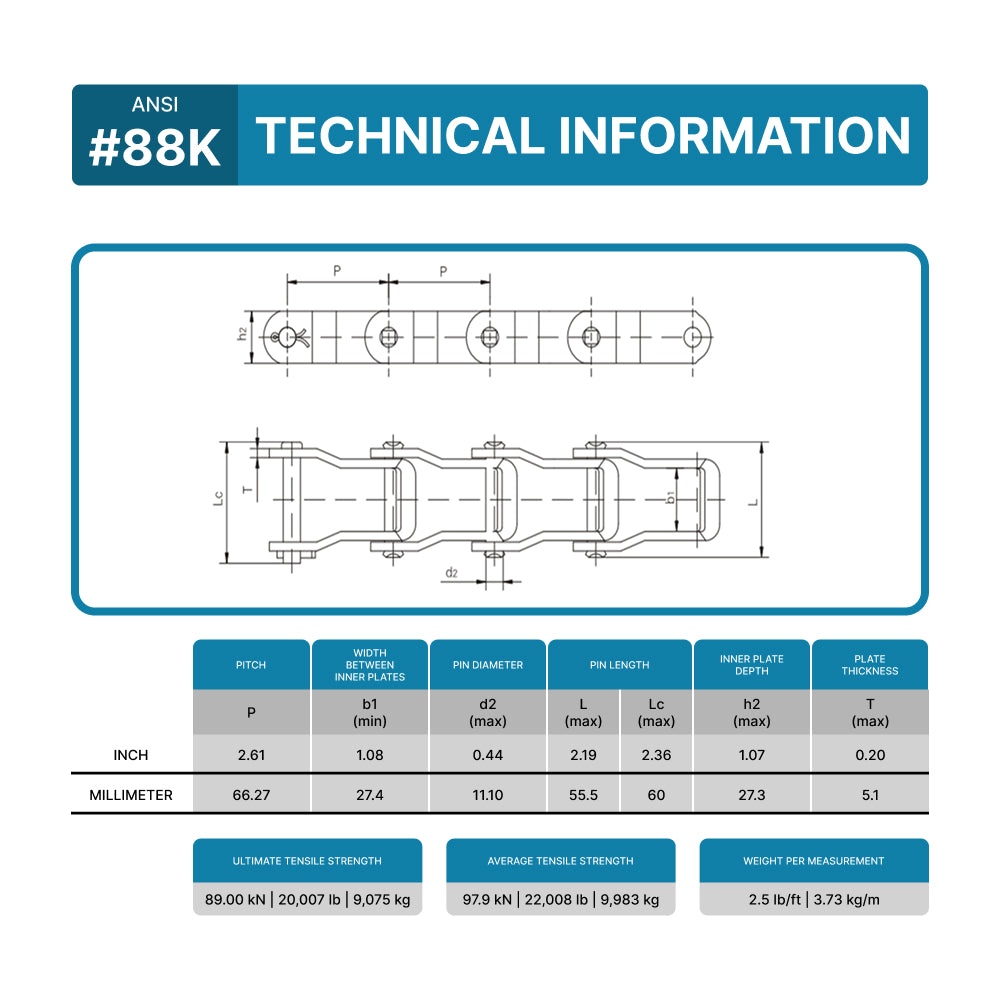

| PITCH | 2.60 inch (66.27 mm) | WEIGHT | 3.73 lb/ft (1.69 kg/m) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.07 inch (27.4 mm) | PIN DIAMETER (D2 MAX) |
0.43 inch (11.10 mm) |
| PIN LENGTH (L MAX) |
2.18 inch (55.5 mm) | PIN LENGTH (LC MAX) |
2.36 inch (60.0 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.07 inch (27.3 mm) | PLATE THICKNESS (T MAX) |
0.20 inch (5.1 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
89.00/20227 kN/LB | AVG TENSILE STRENGTH (QMIN) |
97.9 kN |
