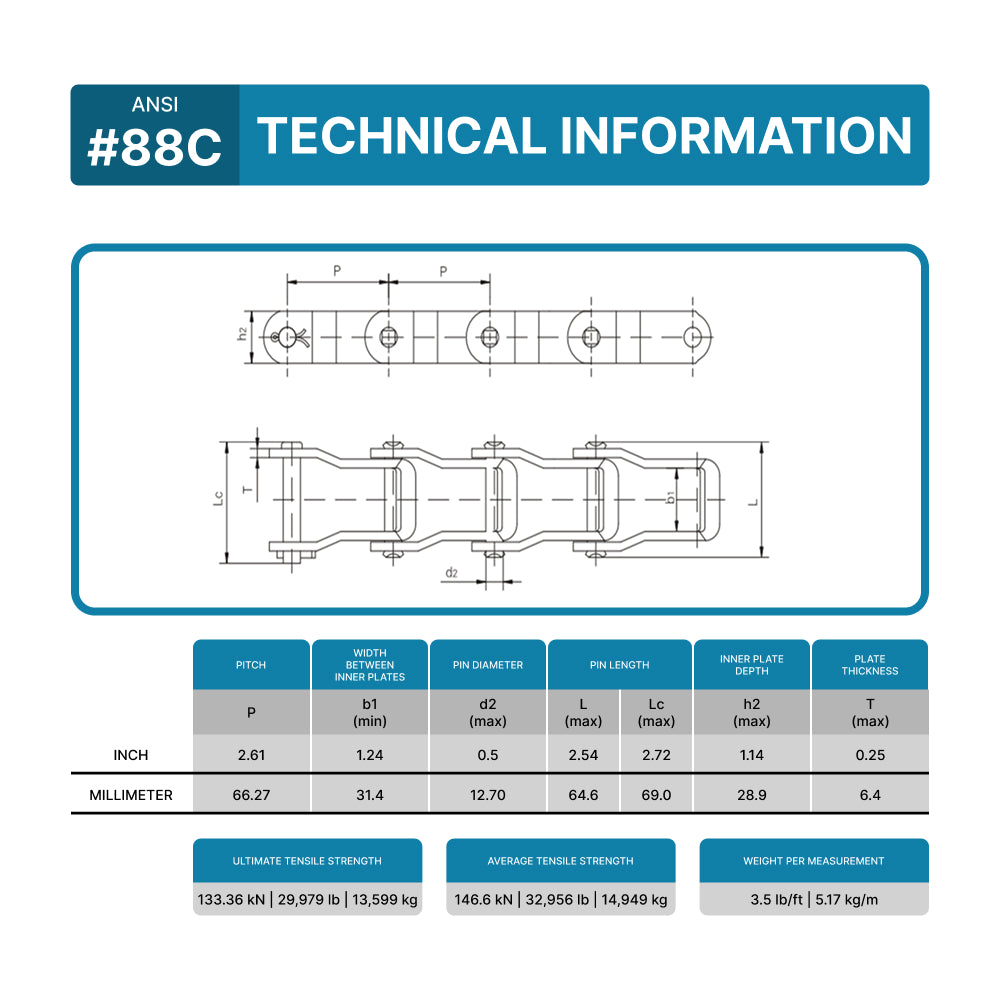

ANSI No |
#88C | LENGTH | 10 ft |
| PITCH | 2.60 inch (66.27 mm) | WEIGHT | 5.17 lb/ft (2.345 kg/m) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.23 inch (31.4 mm) | PIN DIAMETER (D2 MAX) |
0.5 inch (12.70 mm) |
| PIN LENGTH (L MAX) |
2.54 inch (64.6 mm) | PIN LENGTH (LC MAX) |
2.71 inch (69.0 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.13 inch (28.9 mm) | PLATE THICKNESS (T MAX) |
0.25 inch (6.4 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
133.36/30309 kN/LB | AVG TENSILE STRENGTH (QMIN) |
146.6 kN |
