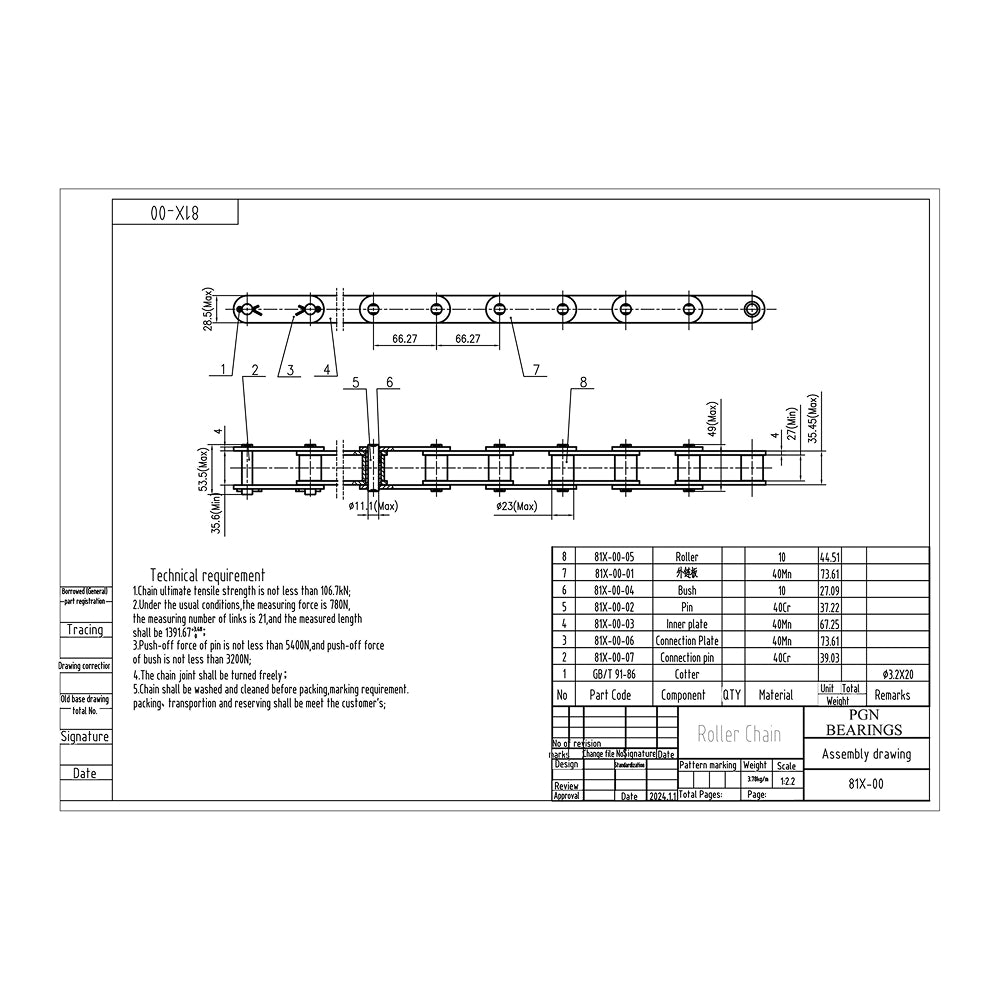

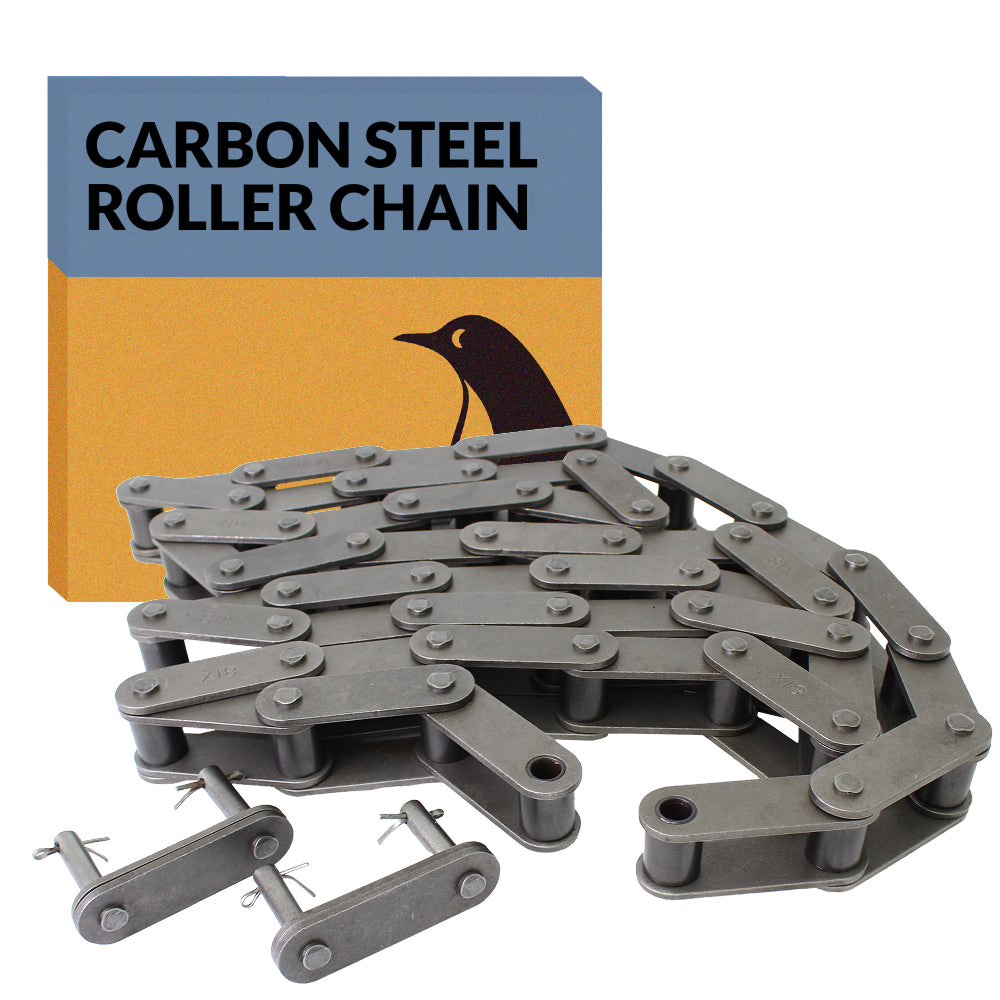

ANSI No |
#81X | LENGTH | 10 ft |

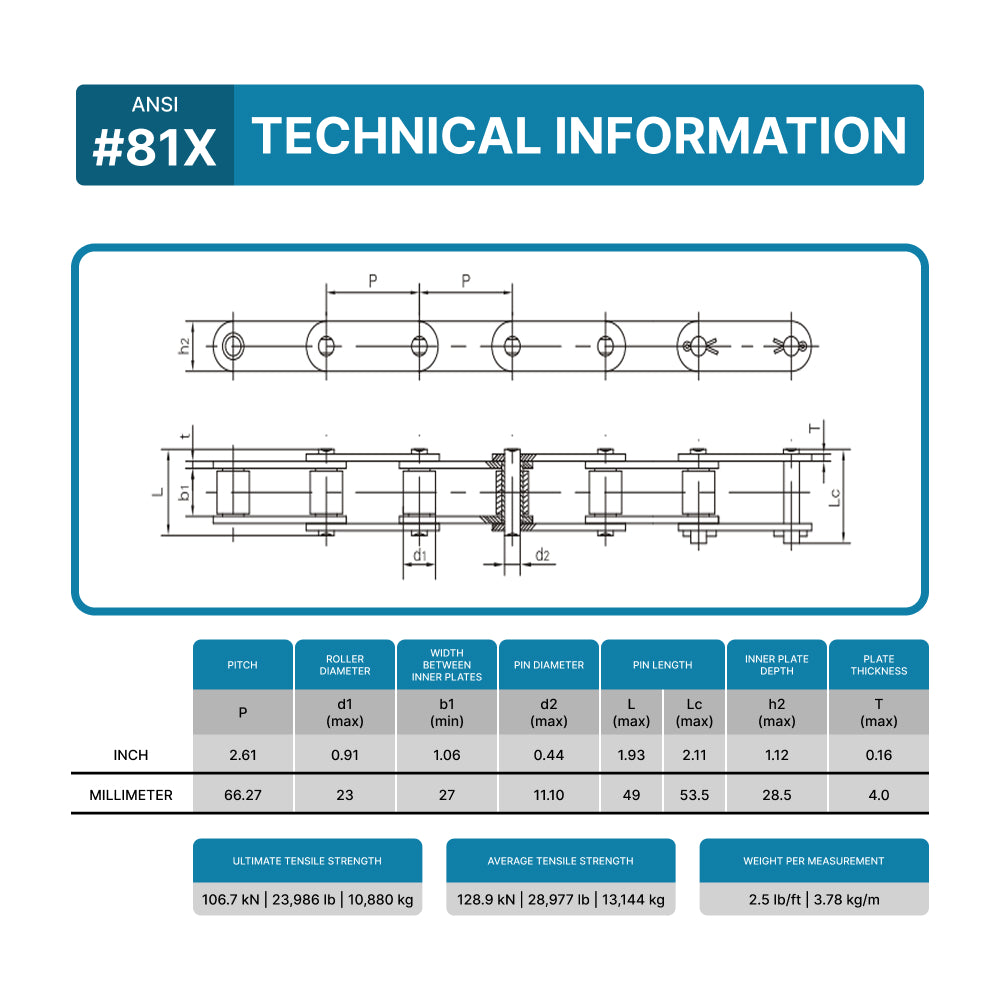

| PITCH | 2.60 inch (66.27 mm) | ROLLER DIAMETER (D1 MAX) |
0.90 inch (23 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.06 inch (27 mm) | PIN DIAMETER (D2 MAX) |
0.43 inch (11.10 mm) |
| PIN LENGTH (L MAX) |
1.92 inch (49 mm) | PIN LENGTH (LC MAX) |
2.10 inch (53.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.12 inch (28.5 mm) | PLATE THICKNESS (T MAX) |
0.15 inch (4.0 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
106.7/24250 kN/LB | WEIGHT | 3.78 lb/ft (1.71 kg/m) |
