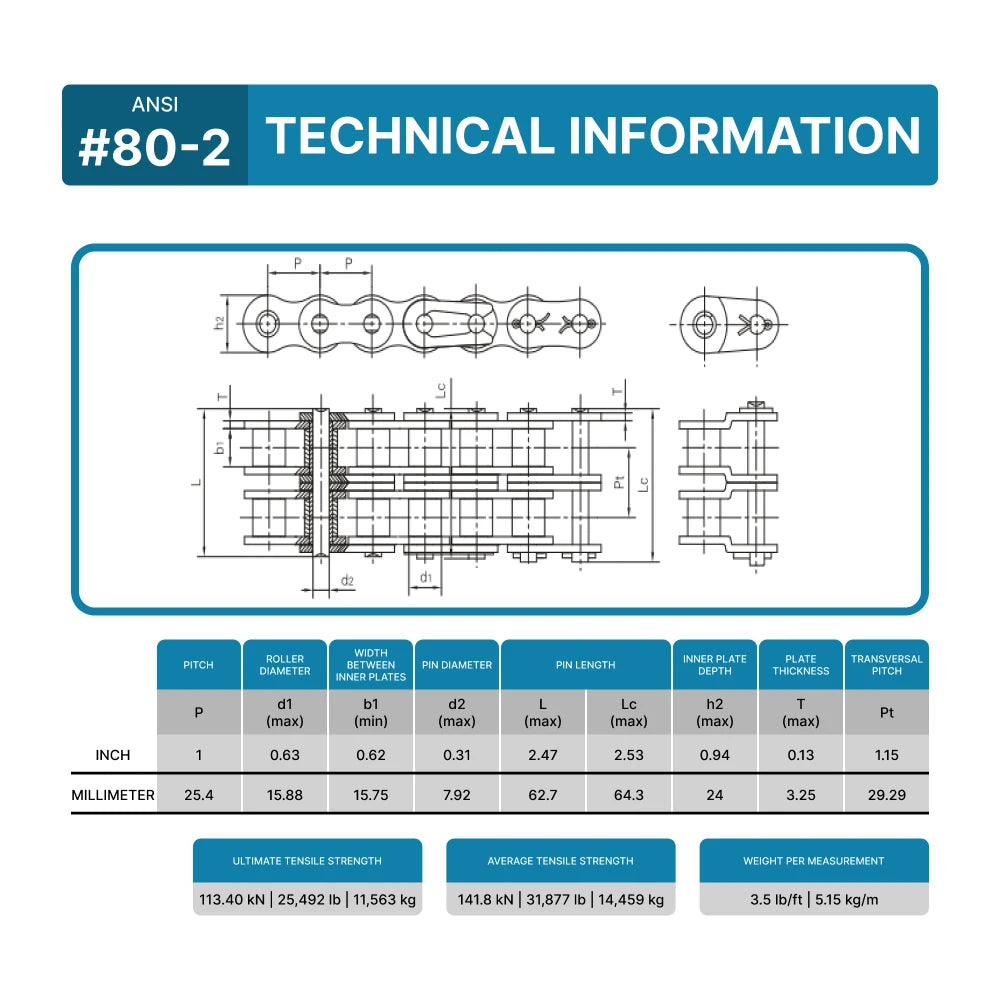

ANSI No |
#80-2 | LENGTH | 10 ft |
| PITCH | 1 inch (25.4 mm) | ROLLER DIAMETER (D1 MAX) |
0.62 inch (15.88 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.62 inch (15.75 mm) | PIN DIAMETER (D2 MAX) |
0.31 inch (7.92 mm) |
| PIN LENGTH (L MAX) |
2.46 inch (62.7 mm) | PIN LENGTH (LC MAX) |
2.53 inch (64.3 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.94 inch (24.00 mm) | PLATE THICKNESS (T MAX) |
0.12 inch (3.25 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
113.40/25773 kN/LB | WEIGHT | 5.15 lb/ft (2.336 kg/m) |
