ANSI No |

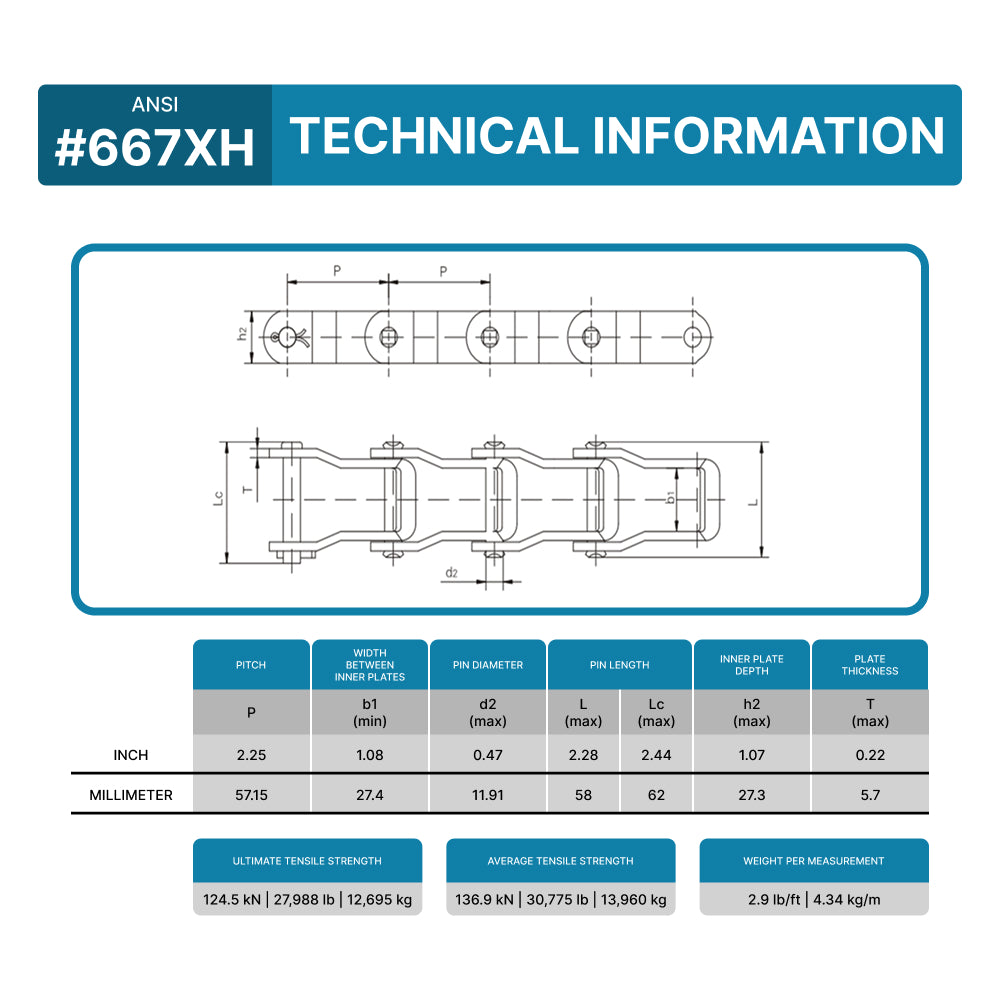

#667XH | LENGTH | 10 ft |
| PITCH | 2.25 inch (57.15 mm) | WEIGHT | 4.34 lb/ft (1.96 kg/m) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.07 inch (27.4 mm) | PIN DIAMETER (D2 MAX) |
0.46 inch (11.91mm) |
| PIN LENGTH (L MAX) |
2.28 inch (58 mm) | PIN LENGTH (LC MAX) |
2.4 inch (62 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.07 inch (27.3 mm) | PLATE THICKNESS (T MAX) |
0.22 inch (5.7 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
124.50/28295 kN/LB | AVG TENSILE STRENGTH (QMIN) |
136.9 kN |
