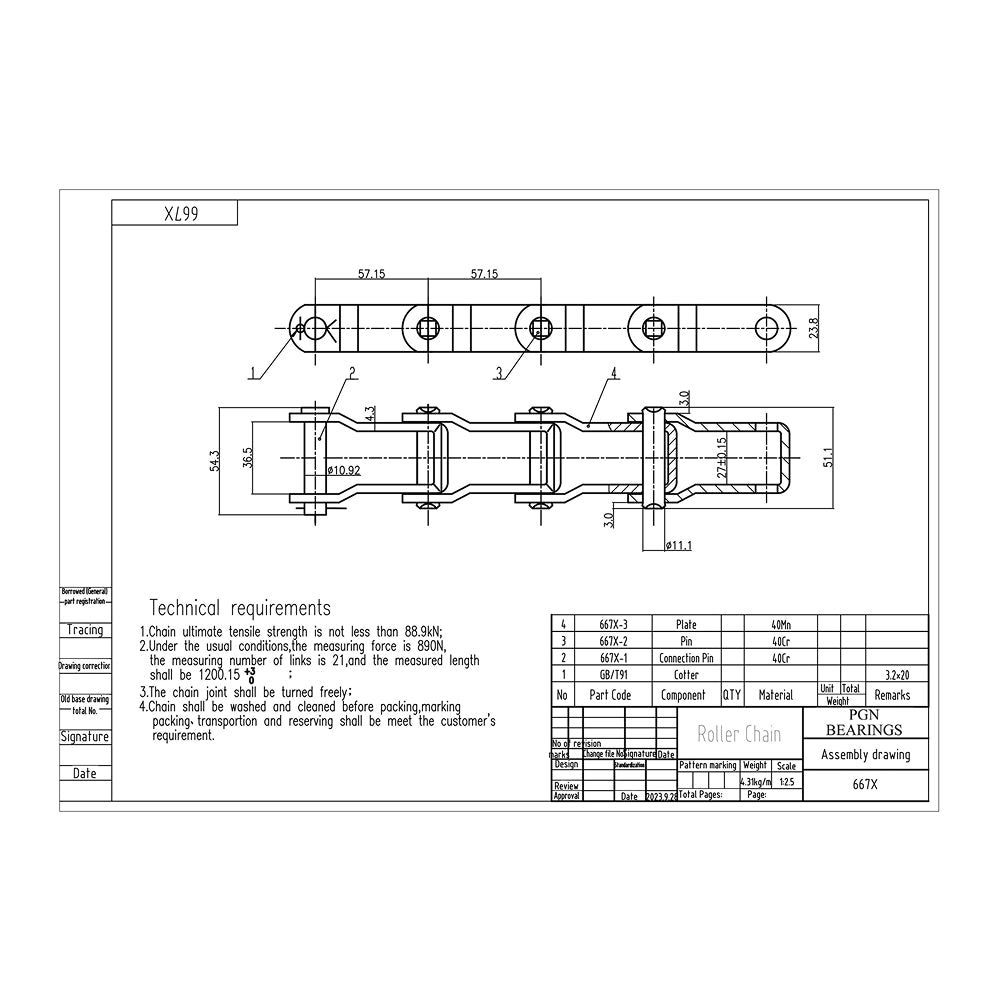

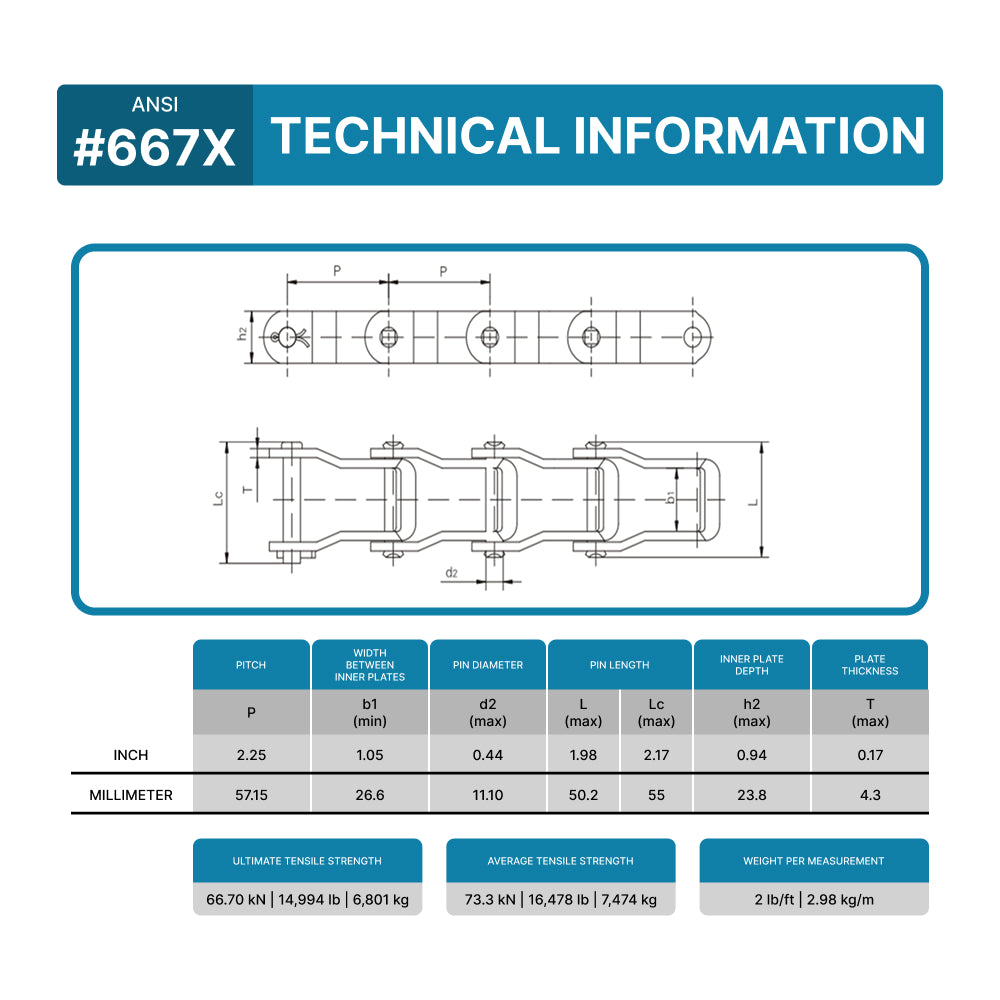

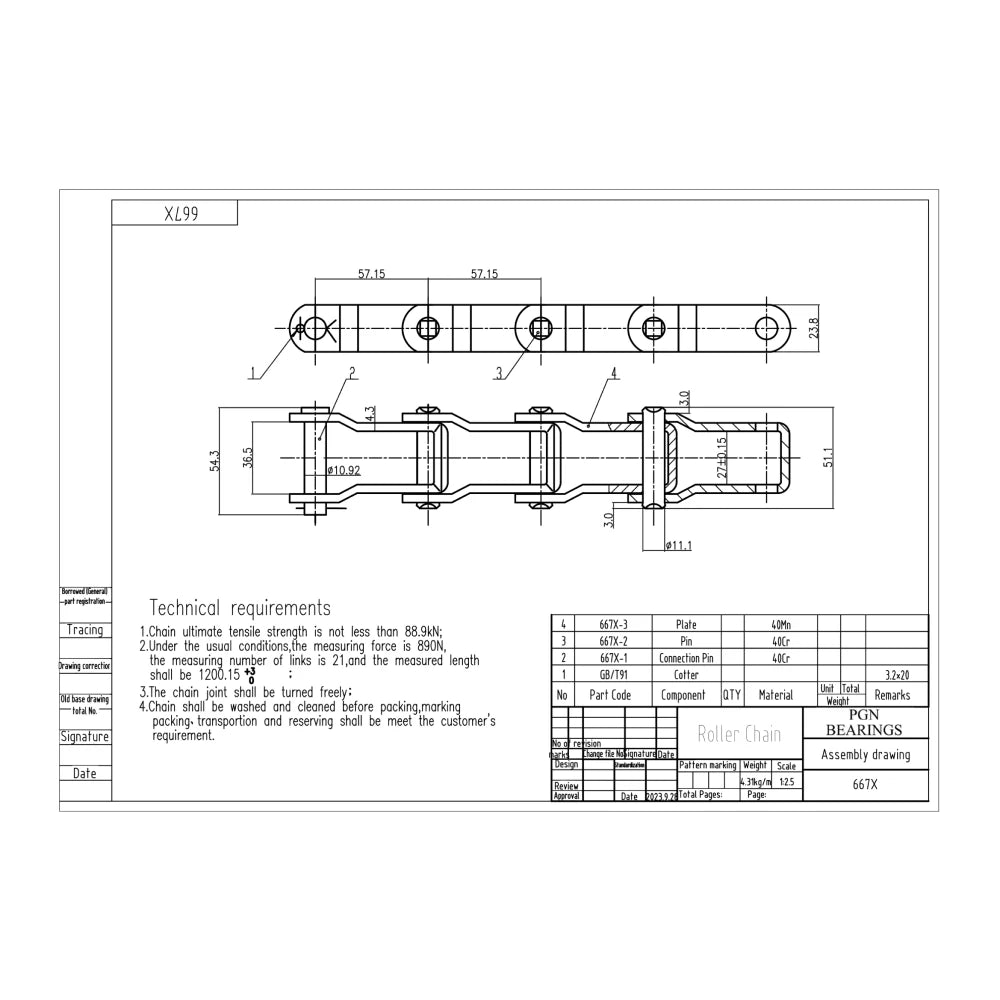

ANSI No |
#667X | LENGTH | 10 ft |
| PITCH | 2.25 inch (57.15 mm) | WEIGHT | 2.98 lb/ft (1.351 kg/m) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.04 inch (26.6 mm) | PIN DIAMETER (D2 MAX) |
0.43 inch (11.10 mm) |
| PIN LENGTH (L MAX) |
1.97 inch (50.2 mm) | PIN LENGTH (LC MAX) |
2.1 inch (55.0 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.93 inch (23.8 mm) | PLATE THICKNESS (T MAX) |
0.16 inch (4.3 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
66.70/15159 kN/LB | AVG TENSILE STRENGTH (QMIN) |
73.3 kN |
