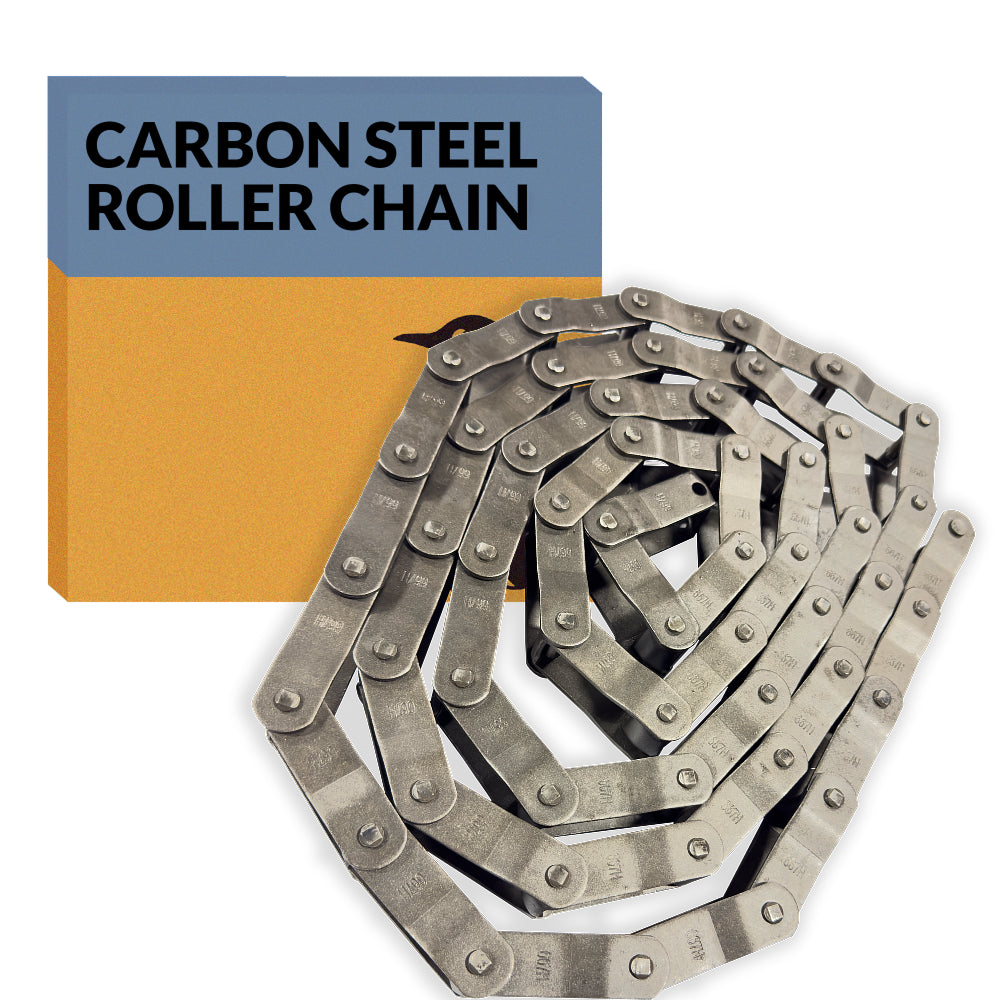

ANSI Chain No.: #667H
Lenght: 10 feet

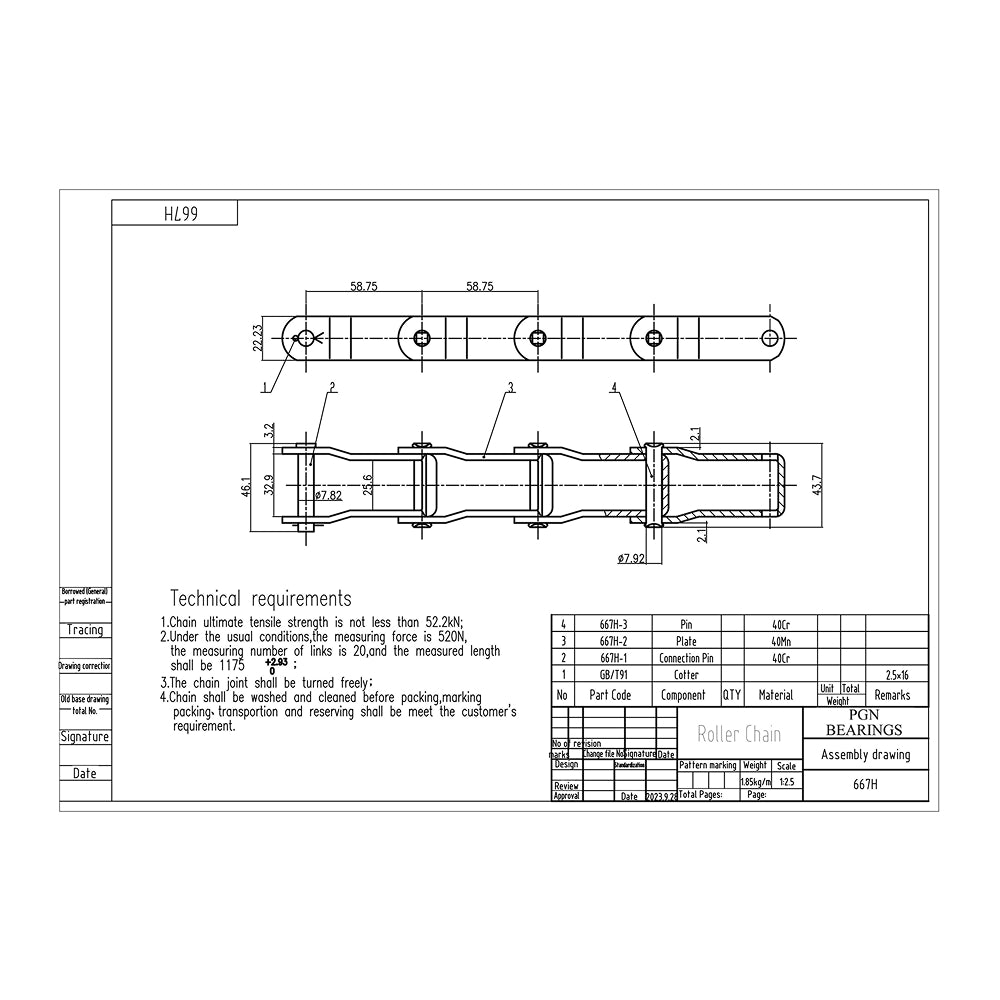

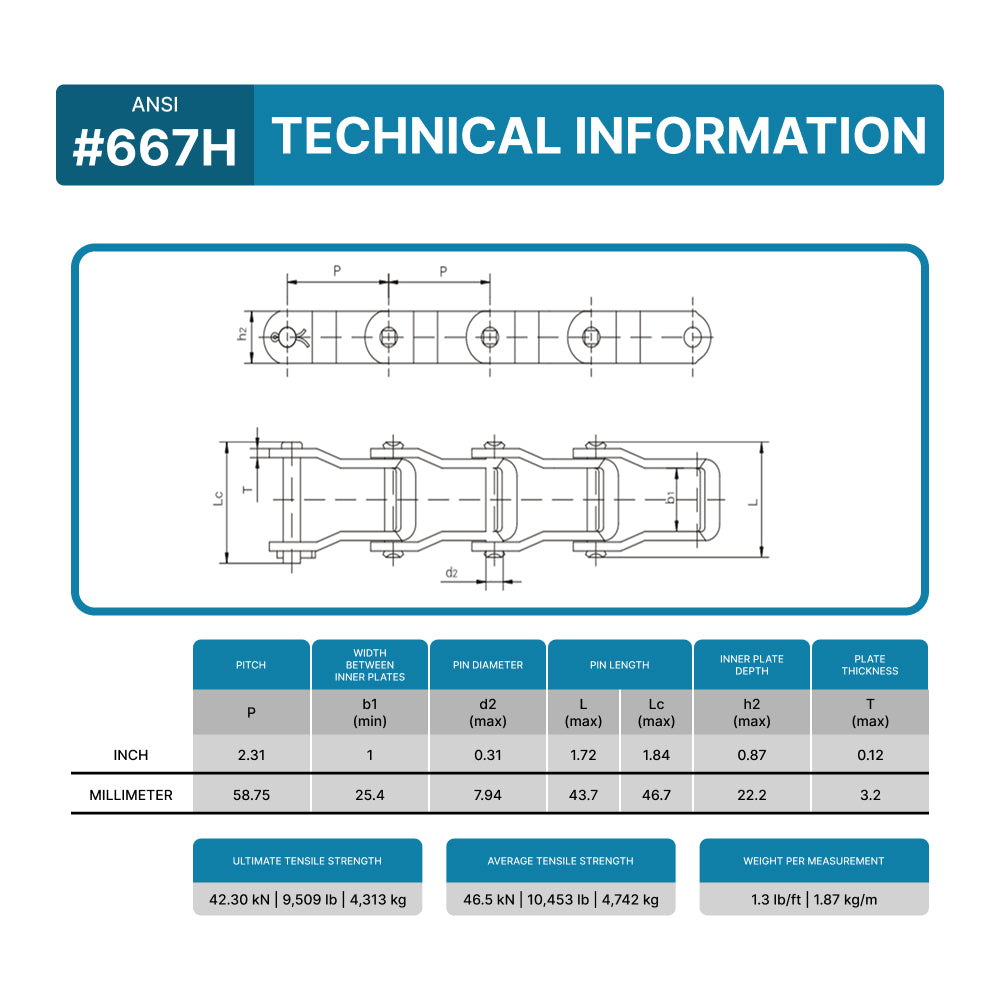

Pitch (P): 2.31 inch (58.75 mm)
Width Between Inner Plates (b1 min): 1 inch (25.4 mm)
Pin Diameter (d2 max): 0.31 inch (7.94 mm)
Pin Lenght (L max): 1.72 inch (43.7 mm)
Pin Lenght (Lc max): 1.83 inch (46.7 mm)
Inner Plate Depth (h2 max): 0.87 inch (22.2 mm)
Plate Thickness (T max): 0.12 inch (3.2 mm)
Ultimate Tensile Strenght (Q min): 42.30/9614 kN/LB
Average Tensile Strenght (Qo): 46.5 kN
Weight (q): 1.87 lb/ft (0.848 kg/m)
Lenght: 10 feet
Pitch (P): 2.31 inch (58.75 mm)
Width Between Inner Plates (b1 min): 1 inch (25.4 mm)
Pin Diameter (d2 max): 0.31 inch (7.94 mm)
Pin Lenght (L max): 1.72 inch (43.7 mm)
Pin Lenght (Lc max): 1.83 inch (46.7 mm)
Inner Plate Depth (h2 max): 0.87 inch (22.2 mm)
Plate Thickness (T max): 0.12 inch (3.2 mm)
Ultimate Tensile Strenght (Q min): 42.30/9614 kN/LB
Average Tensile Strenght (Qo): 46.5 kN
Weight (q): 1.87 lb/ft (0.848 kg/m)
