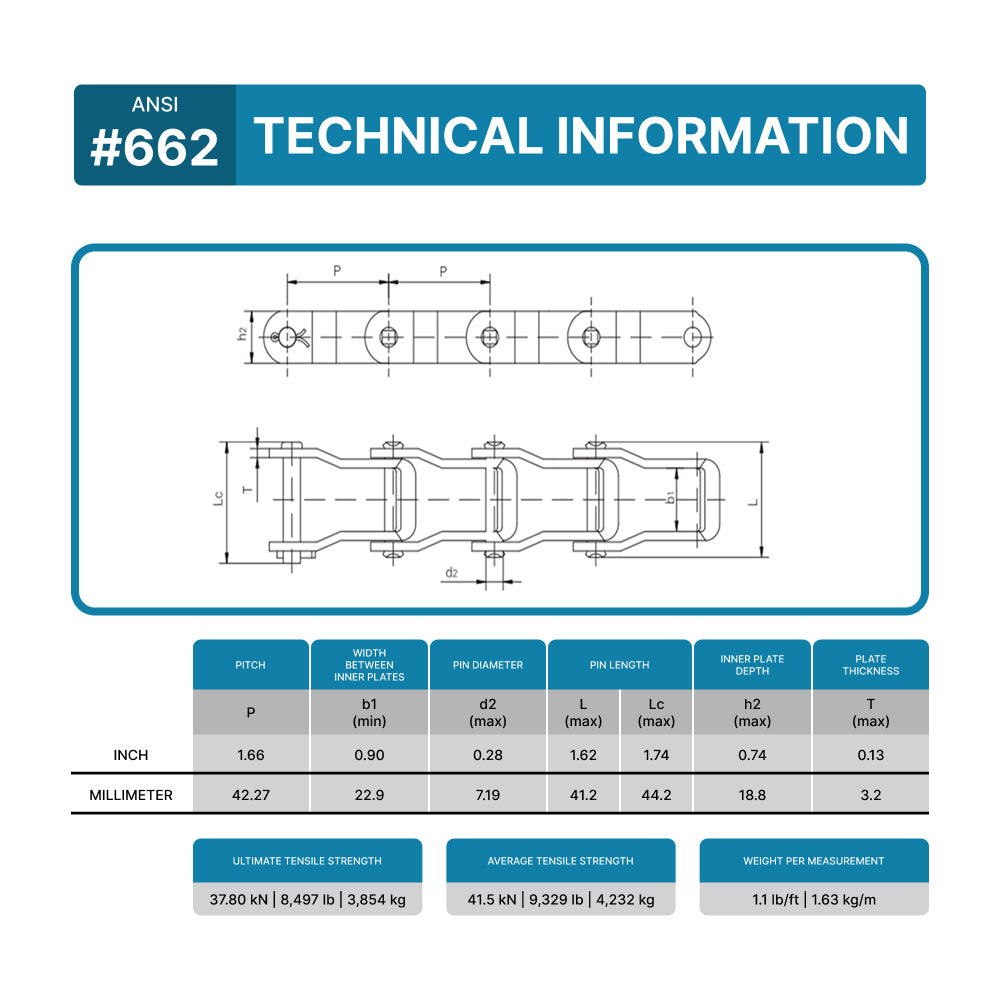

ANSI Chain No.: #662
Lenght: 10 feet
Pitch (P): 1.66 inch (42.27 mm)
Width Between Inner Plates (b1 min): 0.90 inch (22.9 mm)
Pin Diameter (d2 max): 0.28 inch (7.19 mm)
Pin Lenght (L max): 1.62 inch (41.2 mm)
Pin Lenght (Lc max): 1.74 inch (44.2 mm)
Inner Plate Depth (h2 max): 0.74 inch (18.8 mm)
Plate Thickness (T max): 0.12 inch (3.2 mm)
Ultimate Tensile Strenght (Q min): 37.80/8591 kN/LB
Average Tensile Strenght (Qo): 41.5 kN
Weight (q): 1.63 lb/ft (0.739 kg/m)
Lenght: 10 feet
Pitch (P): 1.66 inch (42.27 mm)
Width Between Inner Plates (b1 min): 0.90 inch (22.9 mm)
Pin Diameter (d2 max): 0.28 inch (7.19 mm)
Pin Lenght (L max): 1.62 inch (41.2 mm)
Pin Lenght (Lc max): 1.74 inch (44.2 mm)
Inner Plate Depth (h2 max): 0.74 inch (18.8 mm)
Plate Thickness (T max): 0.12 inch (3.2 mm)
Ultimate Tensile Strenght (Q min): 37.80/8591 kN/LB
Average Tensile Strenght (Qo): 41.5 kN
Weight (q): 1.63 lb/ft (0.739 kg/m)
