6010-2RS Ball Bearing

The 6010-2RS Ball Bearing is a deep groove ball bearing from the 6000 series engineered for industrial applications requiring high rotational efficiency, quiet operation, and dependable performance in compact high-speed equipment.

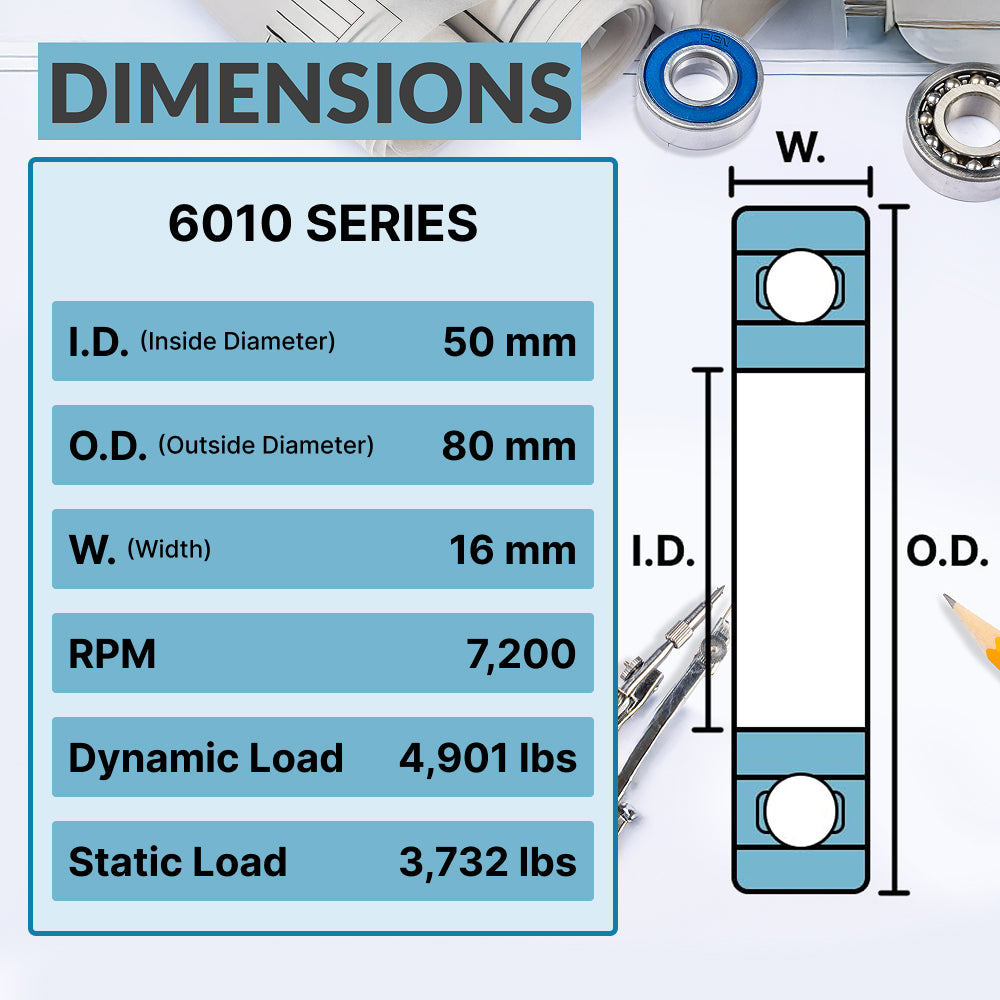

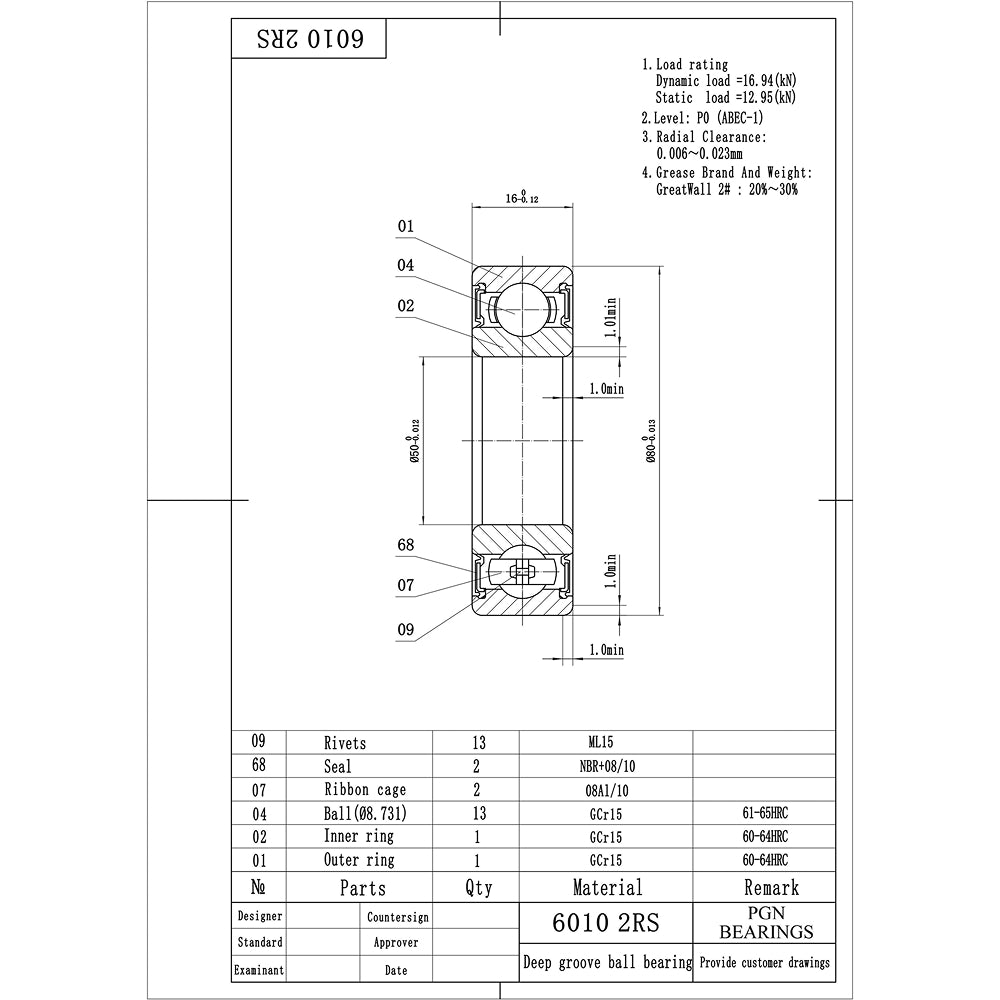

Measuring 50x80x16mm, this bearing features a slim-profile construction that offers reduced width compared to heavier bearing series. This design helps optimize internal space and reduce overall system weight in motors, automated systems, and continuous-duty industrial equipment. Manufactured from chrome steel and supplied factory pre-lubricated, the bearing uses double rubber seals to support lubrication retention and operational stability.

Applications for the 6010-2RS

The 6010-2RS is commonly used in systems requiring lower rolling resistance and continuous operation, including:

• Compact electric motors
• HVAC equipment
• Automated systems
• Packaging machinery
• Industrial fans
• Agricultural equipment
• Industrial pulleys
• Light conveyor systems

The 6000 series is recognized for balancing mechanical efficiency, reduced vibration, and space-saving installation in modern industrial applications.

Key Advantages of the 6010-2RS

Compact profile for optimized systems

Its narrow 16mm width supports installation in equipment with limited internal space.

Double rubber seals

Rubber seals help retain internal grease while reducing exposure to dust and moderate moisture.

Reduced vibration levels

Deep groove geometry supports smooth rotation and quieter operation during continuous use.

Excellent high-speed efficiency

This bearing was designed for higher RPM applications with lower operational heat generation.

Advantages of the 6000 Series

6000 series bearings are commonly selected when a system requires:

• Lightweight structure
• Reduced width
• High rotational speed
• Continuous-duty operation
• Lower friction performance

Usage Recommendations

To improve bearing service life:

• Prevent shaft misalignment
• Monitor operating temperature
• Keep the system clean
• Inspect excessive vibration
• Use proper installation practices

PGN Bearings Product Line

PGN Bearings supplies industrial components for rotating systems and mechanical power transmission applications. The product line includes ball bearings, roller chains, pillow block bearings, steel balls, and additional products designed for automation systems, electric motors, and high-speed industrial equipment.

FAQ

What does 2RS mean on a bearing?

“2RS” means rubber seals on both sides of the bearing.

What size is the 6010-2RS?

This bearing measures 50x80x16mm.

Does the 6010-2RS come pre-lubricated?

Yes. The bearing comes factory pre-lubricated.

What is the advantage of the 6000 series?

The 6000 series features a slimmer profile and reduced width for compact high-speed systems.

Is this bearing suitable for continuous-duty applications?

Yes. The 6010-2RS was developed for industrial systems operating continuously at higher speeds.
