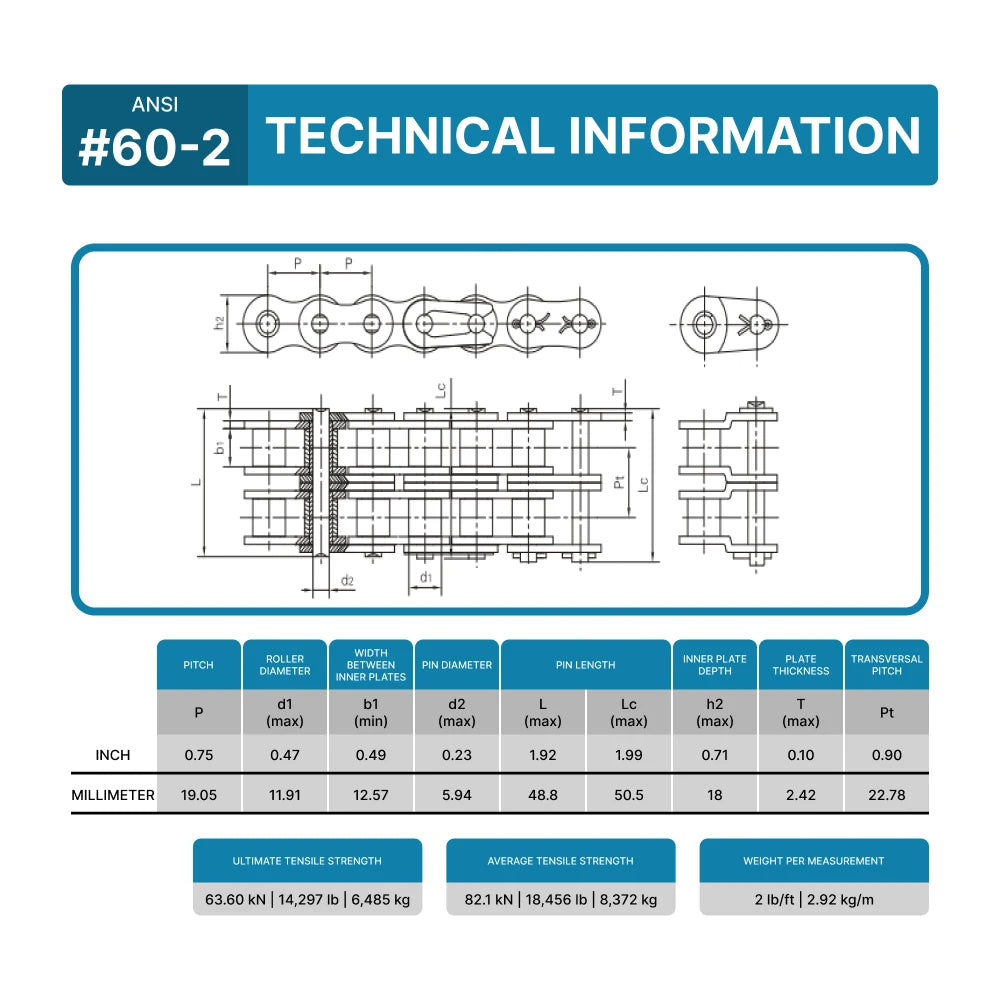

ANSI No |
#60-2 | LENGTH | 10 ft |
| PITCH | 0.75 inch (19.05 mm) | ROLLER DIAMETER (D1 MAX) |
0.46 inch (11.91 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.49 inch (12.57 mm) | PIN DIAMETER (D2 MAX) |
0.23 inch (5.94 mm) |
| PIN LENGTH (L MAX) |
1.92 inch (48.8 mm) | PIN LENGTH (LC MAX) |
1.98 inch (50.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.70 inch (18.00 mm) | PLATE THICKNESS (T MAX) |
0.09 inch (2.42 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
63.60/14455 kN/LB | WEIGHT | 2.92 lb/ft (1.324 kg/m) |
