#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link
#50 Roller Chain Offset Links - 5/8" Pitch - Half Link

#50 Roller Chain Offset Links - 5/8" Pitch - Half Link

SKU: RC-#50-OL/1
Price
$1.30
Taxes and shipping calculated at checkout
Quantity:
1
4286 in stock

Description

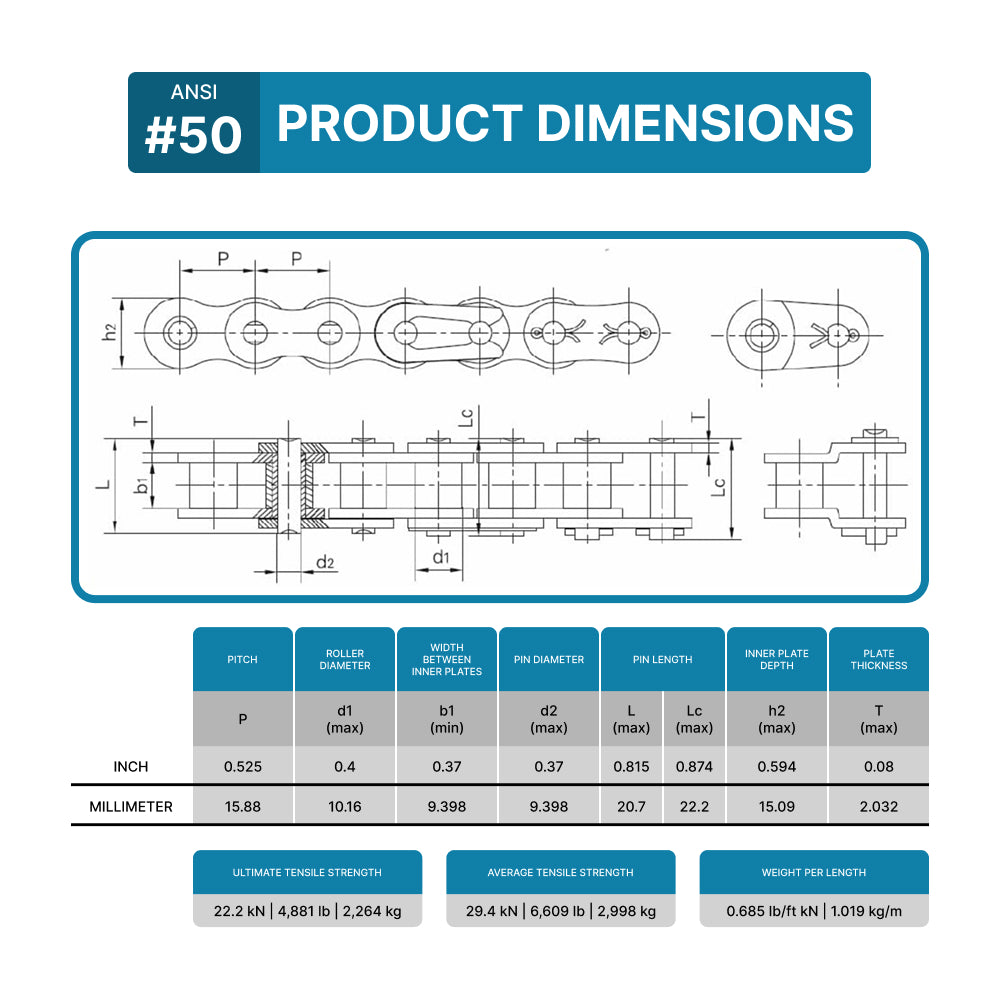

Below are the specifications for the chain that uses this half link:

ANSI CHAIN NO. #50 WEIGHT 0.685 lb/ft
(1.02 kg/m)
PITCH (P) 0.525 inch
(15.875 mm)		 ROLLER DIAMETER (D1) 0.4 inch
(10.16 mm)
WIDTH BETWEEN PLATES (B1) 0.370 inch
(9.4 mm)		 PIN DIAMETER (D2) 0.2 inch
(5.08 mm)
PIN LENGTH (L MAX) 0.815 inch
(20.70 mm)		 PIN LENGTH (LC MAX) 0.874 inch
(22.20 mm)
INNER PLATE DEPTH (H2) 0.594 inch
(15.09 mm)		 PLATE THICKNESS (T) 0.080 inch
(2.03 mm)
ULTIMATE TENSILE STRENGTH 22.20/5045 kN/LB AVERAGE TENSILE STRENGTH 29.4 kN
