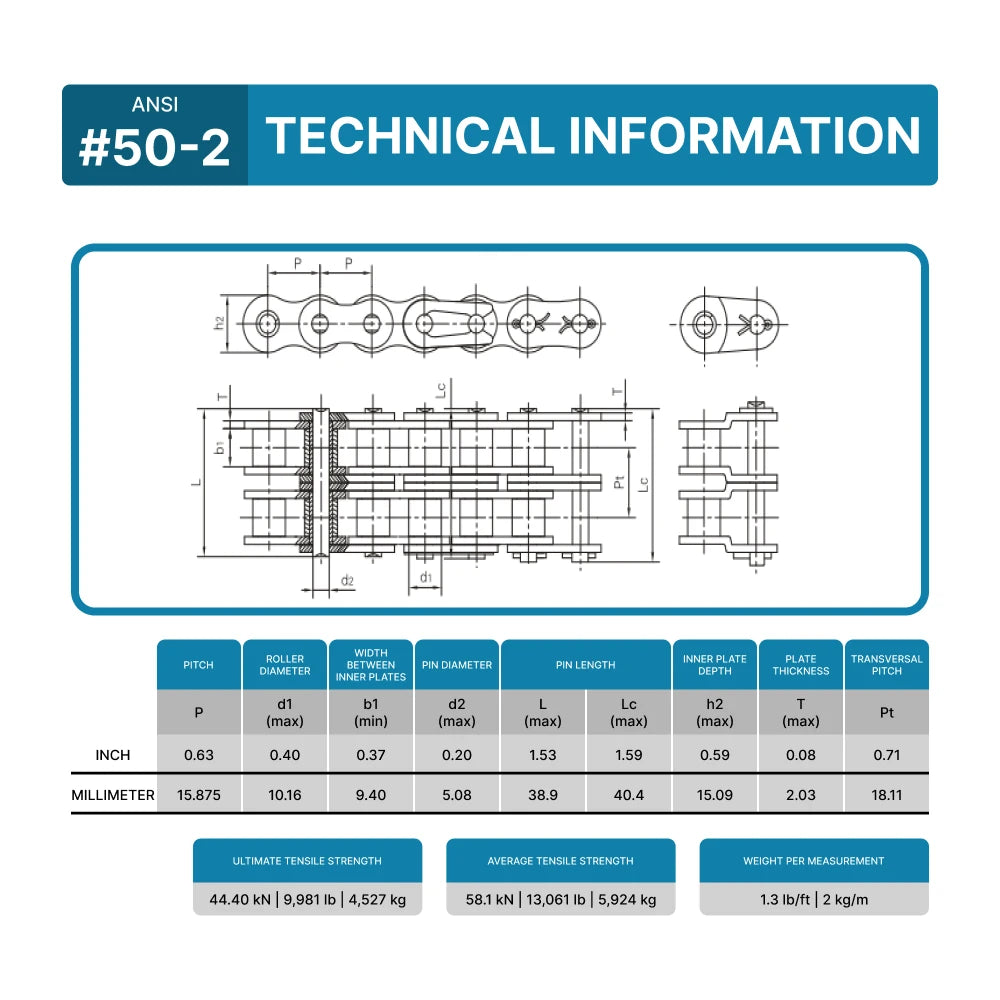

ANSI No |
#50-2 | LENGTH | 10 ft |
| PITCH | 0.62 inch (15.87 mm) | ROLLER DIAMETER (D1 MAX) |
0.4 inch (10.16 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.37 inch (9.40 mm) | PIN DIAMETER (D2 MAX) |
0.2 inch (5.08 mm) |
| PIN LENGTH (L MAX) |
1.53 inch (38.9 mm) | PIN LENGTH (LC MAX) |
1.59 inch (40.4 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.59 inch (15.09 mm) | PLATE THICKNESS (T MAX) |
0.07 inch (2.03 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
44.40/10091 kN/LB | WEIGHT | 2.00 lb/ft (0.907 kg/m) |
