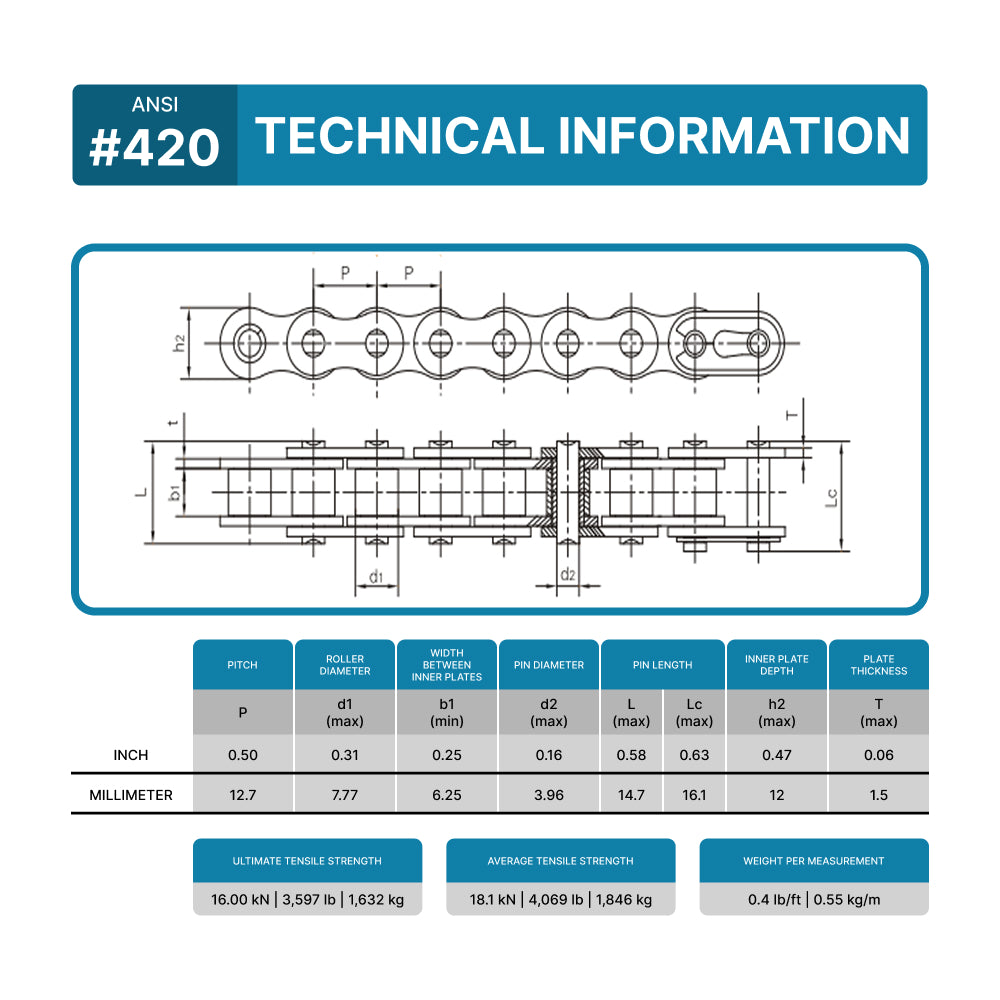

Below are the specifications for the chain that uses this half link:
|
ANSI No |
#420 | WEIGHT | 0.76 lb/ft (0.34 kg/m) |
| PITCH | 0.5 inch (12.7 mm) | ROLLER DIAMETER (D1 MAX) |
0.30 inch (7.77 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.24 inch (6.25 mm) | PIN DIAMETER (D2 MAX) |
0.15 inch (3.96 mm) |
| PIN LENGTH (L MAX) |
0.66 inch (17 mm) | PIN LENGTH (LC MAX) |
0.72 inch (18.4 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.47 inch (12 mm) | PLATE THICKNESS (T MAX) |
0.07 inch (2.03 mm) |
