#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link
#40 Roller Chain Offset Links - 1/2" Pitch - Half Link

#40 Roller Chain Offset Links - 1/2" Pitch - Half Link

SKU: RC-#40-OL/1
Price
$0.98
Taxes and shipping calculated at checkout
Quantity:
1
1995 in stock

Description

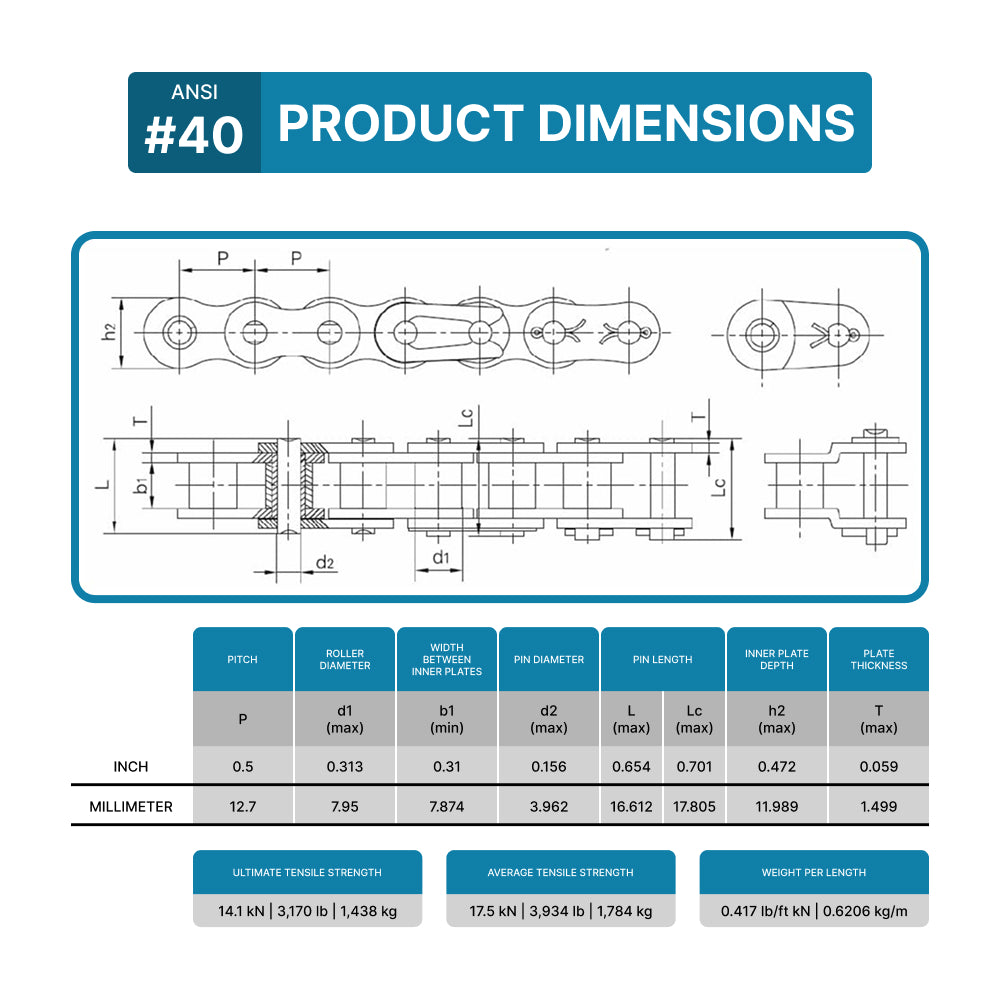

Below are the specifications for the chain that uses this half link:

ANSI No

 #40 WEIGHT 0.417 lb/ft (0.62 kg/m)
PITCH 0.5 in (12.7 mm) ROLLER DIAMETER
(D1 MAX) 		 0.313 in (7.95 mm)
WIDTH BETWEEN PLATES
(B1 MIN)		 0.310 in (7.85 mm) PIN DIAMETER
(D2 MAX)		 0.156 in (3.96 mm)
PIN LENGTH
(L MAX)		 0.654 in (16.60 mm) PIN LENGTH
(LC MAX)		 0.701 in (17.80 mm)
INNER PLATE DEPTH
(H2 MAX)		 0.472 in (12.0 mm) PLATE THICKNESS
(T MAX)		 0.059 in (1.50 mm)
