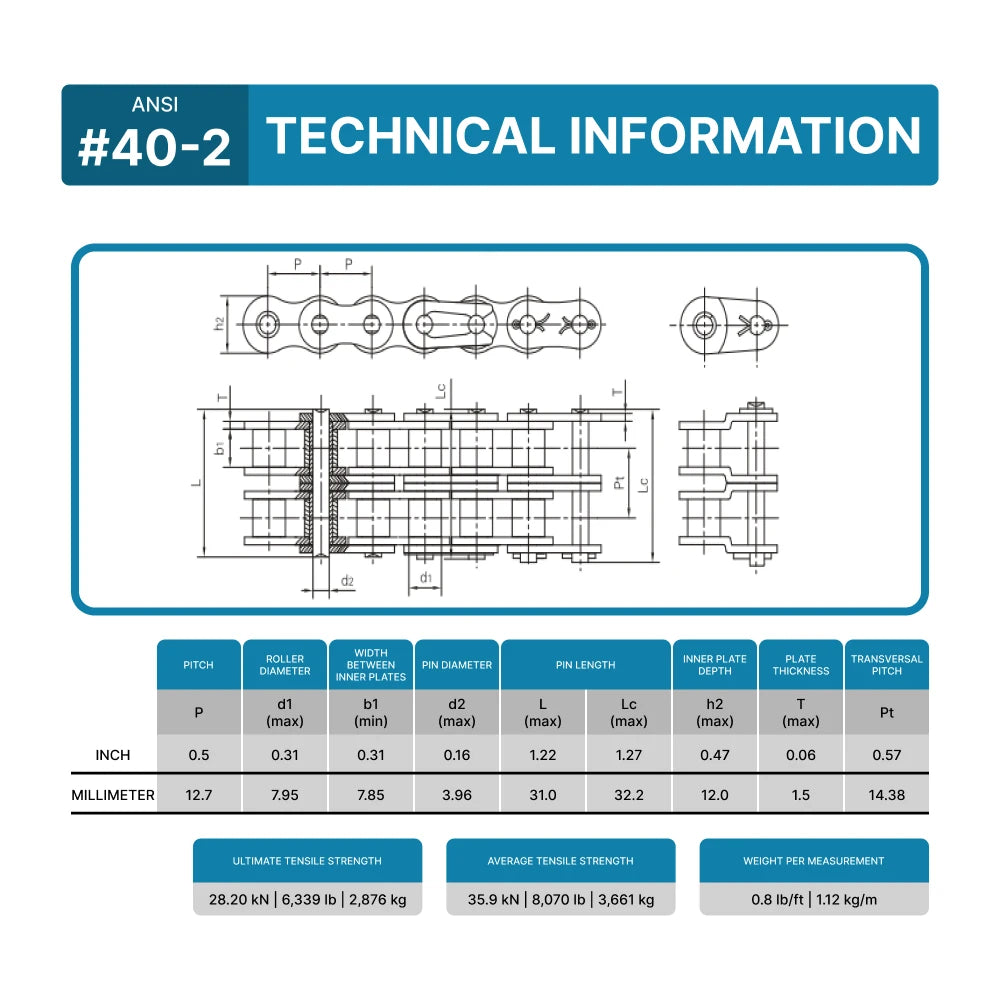

ANSI No |
#40-2 | LENGTH | 10 ft |
| PITCH | 0.5 inch (12.70 mm) | ROLLER DIAMETER (D1 MAX) |
0.31 inch (7.95 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.30 inch (7.85 mm) | PIN DIAMETER (D2 MAX) |
0.15 inch (3.96 mm) |
| PIN LENGTH (L MAX) |
1.22 inch (31.0 mm) | PIN LENGTH (LC MAX) |
1.26 inch (32.2 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.47 inch (12.00 mm) | PLATE THICKNESS (T MAX) |
0.05 inch (1.50 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
28.20/6409 kN/LB | WEIGHT | 1.12 lb/ft (0.508 kg/m) |
