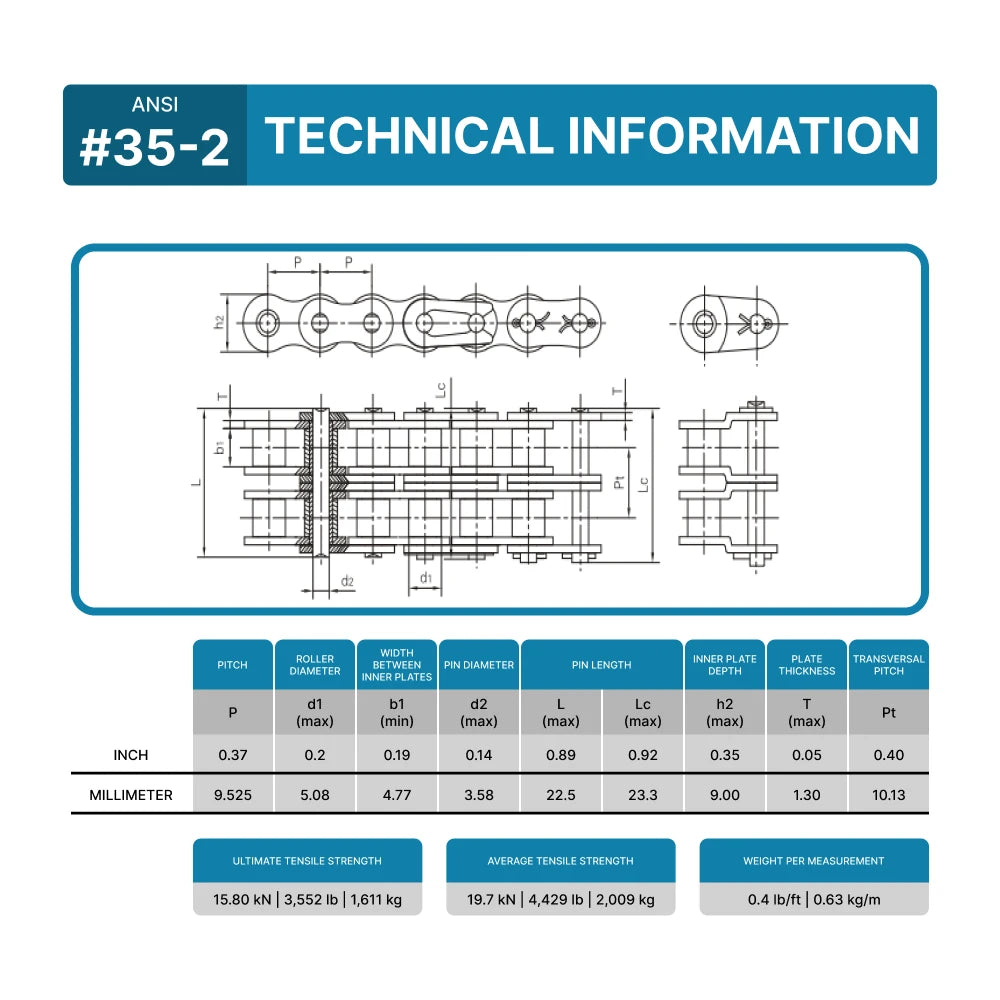

ANSI No |
#35-2 | LENGTH | 10 ft |
| PITCH | 0.37 inch (9.52 mm) | ROLLER DIAMETER (D1 MAX) |
0.2 inch (5.08 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.18 inch (4.77 mm) | PIN DIAMETER (D2 MAX) |
0.14 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.88 inch (22.5 mm) | PIN LENGTH (LC MAX) |
0.91 inch (23.3 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.35 inch (9.00 mm) | PLATE THICKNESS (T MAX) |
0.05 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
15.80/3591 kN/LB | WEIGHT | 0.63 lb/ft (0.28 kg/m) |
