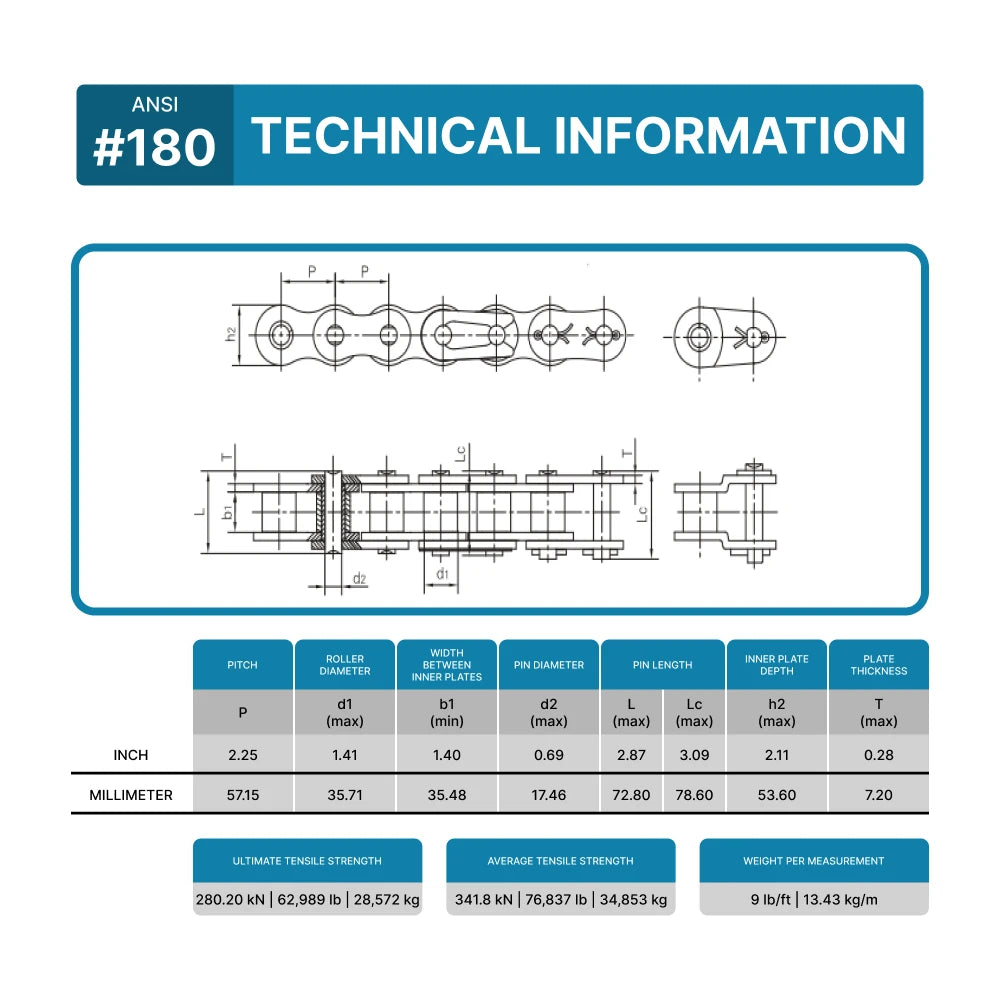

ANSI No |
#180 | LENGTH | 10 ft |
| PITCH | 2.25 inch (57.15 mm) | ROLLER DIAMETER (D1 MAX) |
1.40 inch (35.71 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.88 inch (35.48 mm) | PIN DIAMETER (D2 MAX) |
0.68 inch (17.46 mm) |
| PIN LENGTH (L MAX) |
2.86 inch (72.80 mm) | PIN LENGTH (LC MAX) |
3.09 inch (78.60 mm) |
| INNER PLATE DEPTH (H2 MAX) |
2.11 inch (53.60 mm) | PLATE THICKNESS (T MAX) |
0.28 inch (7.20 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
280.20/63682 kN/LB | WEIGHT | 13.45 lb/ft (6.10 kg/m) |
