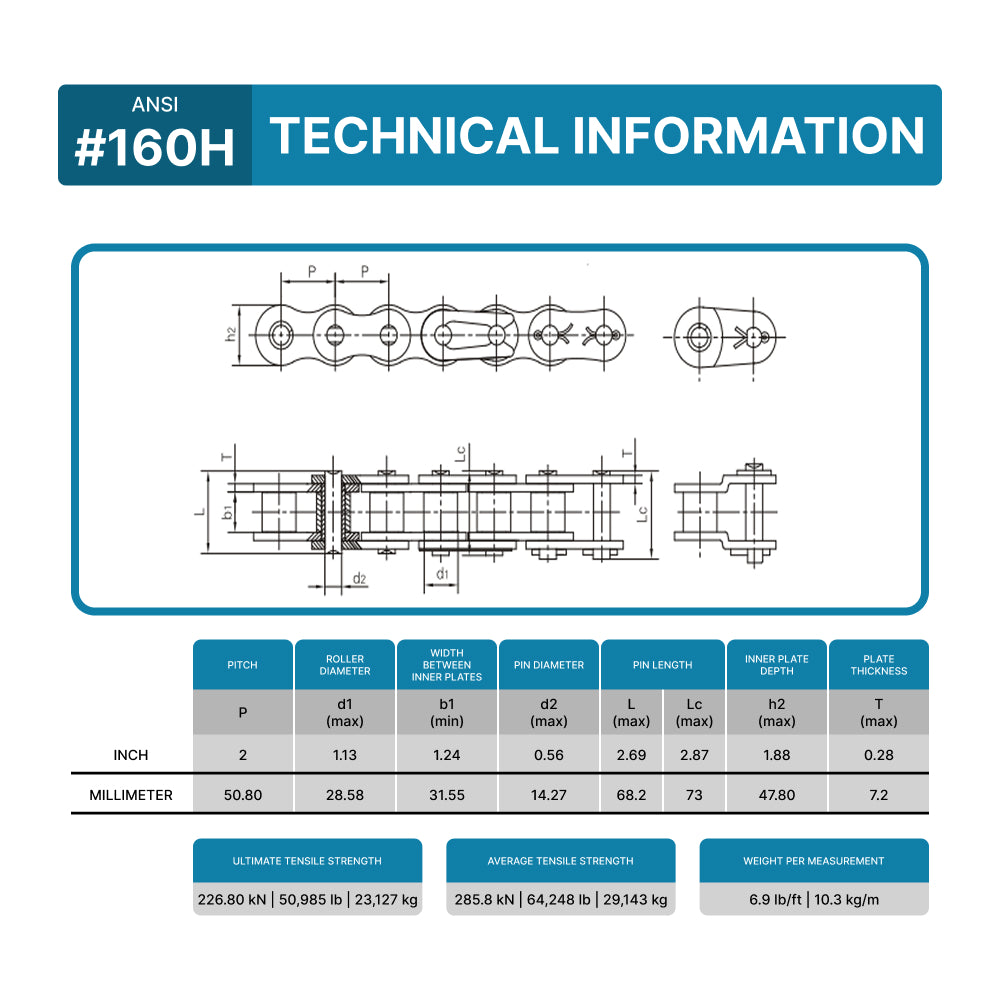

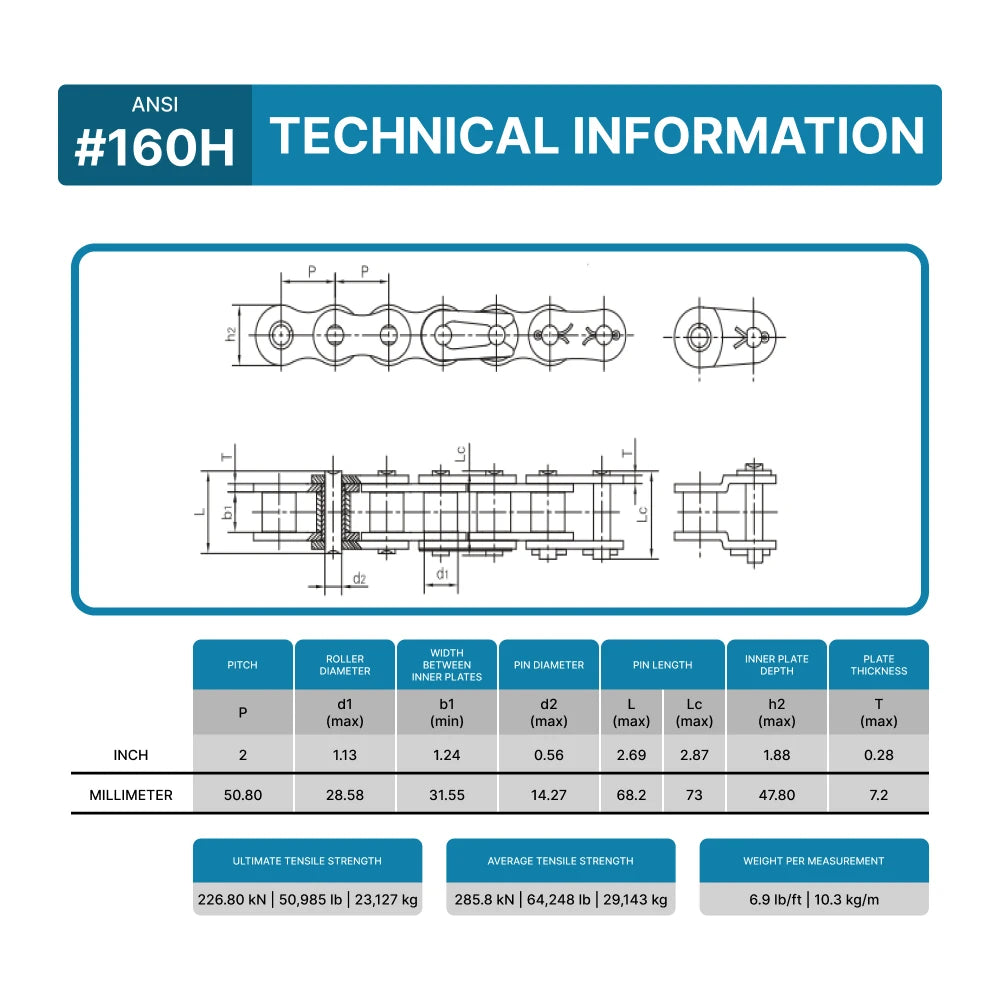

ANSI No |
#160H | LENGTH | 10 ft |
| PITCH | 2 inch (50.80 mm) | ROLLER DIAMETER (D1 MAX) |
1.12 inch (28.58 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.24 inch (31.55 mm) | PIN DIAMETER (D2 MAX) |
0.56 inch (14.27 mm) |
| PIN LENGTH (L MAX) |
2.69 inch (68.2 mm) | PIN LENGTH (LC MAX) |
2.87 inch (68.2 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.88 inch (47.80 mm) | PLATE THICKNESS (T MAX) |
0.28 inch (7.2 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
226.80/64248 kN/LB | WEIGHT | 10.10 lb/ft (4.5 kg/m) |
