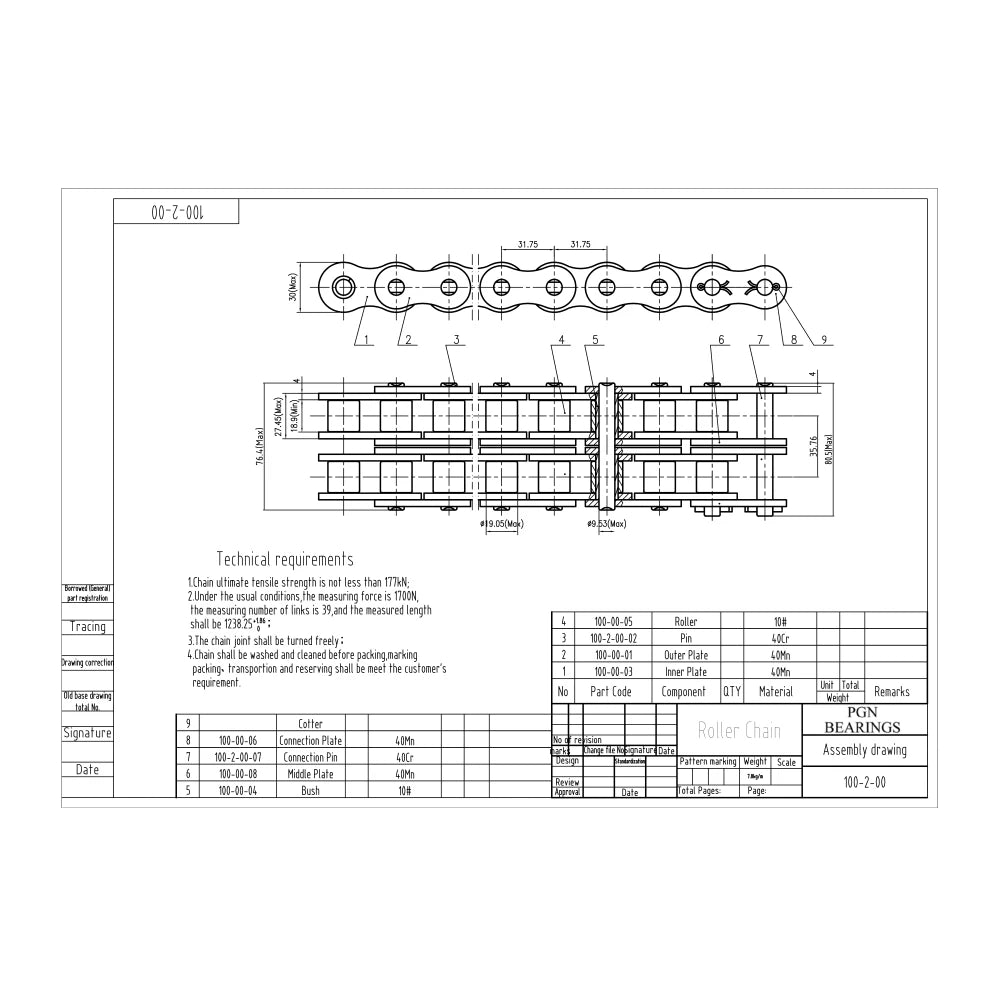

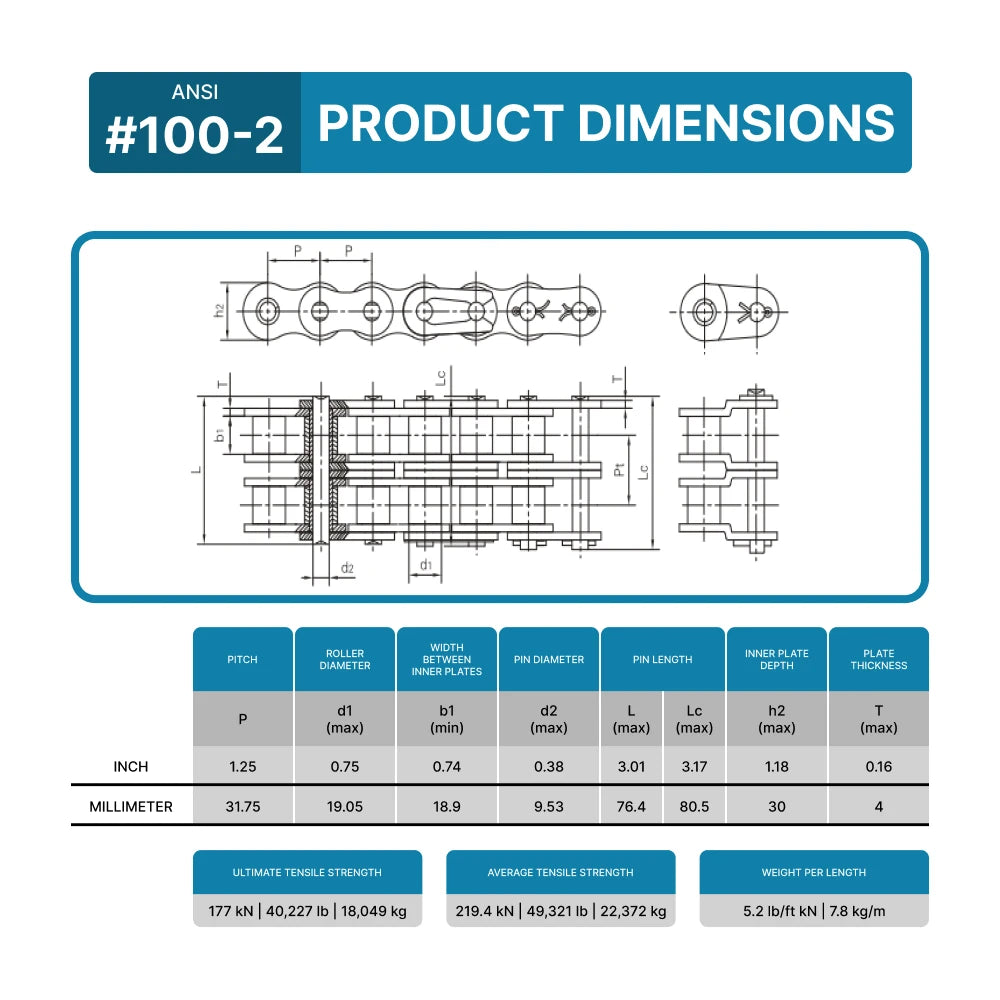

ANSI No |
#100-2 | LENGTH | 10 ft |
| PITCH | 1.25 inch (31.75 mm) | ROLLER DIAMETER (D1 MAX) |
0.75 inch (19.05 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.74 inch (18.9 mm) | PIN DIAMETER (D2 MAX) |
0.38 inch (9.53 mm) |
| PIN LENGTH (L MAX) |
3.01 inch (76.4 mm) | PIN LENGTH (LC MAX) |
3.17 inch (80.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.18 inch (30 mm) | PLATE THICKNESS (T MAX) |
0.16 inch (4 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
177/40,227 kN/LB | WEIGHT | 5.2 lb/ft (7.8 kg/m) |
