6202-2RS Flanged Ball Bearing

The 6202-2RS Flanged Ball Bearing is a flanged deep groove ball bearing designed for light-duty rolling equipment and wheel applications requiring stable installation, smooth rotation, and easy replacement in utility systems.

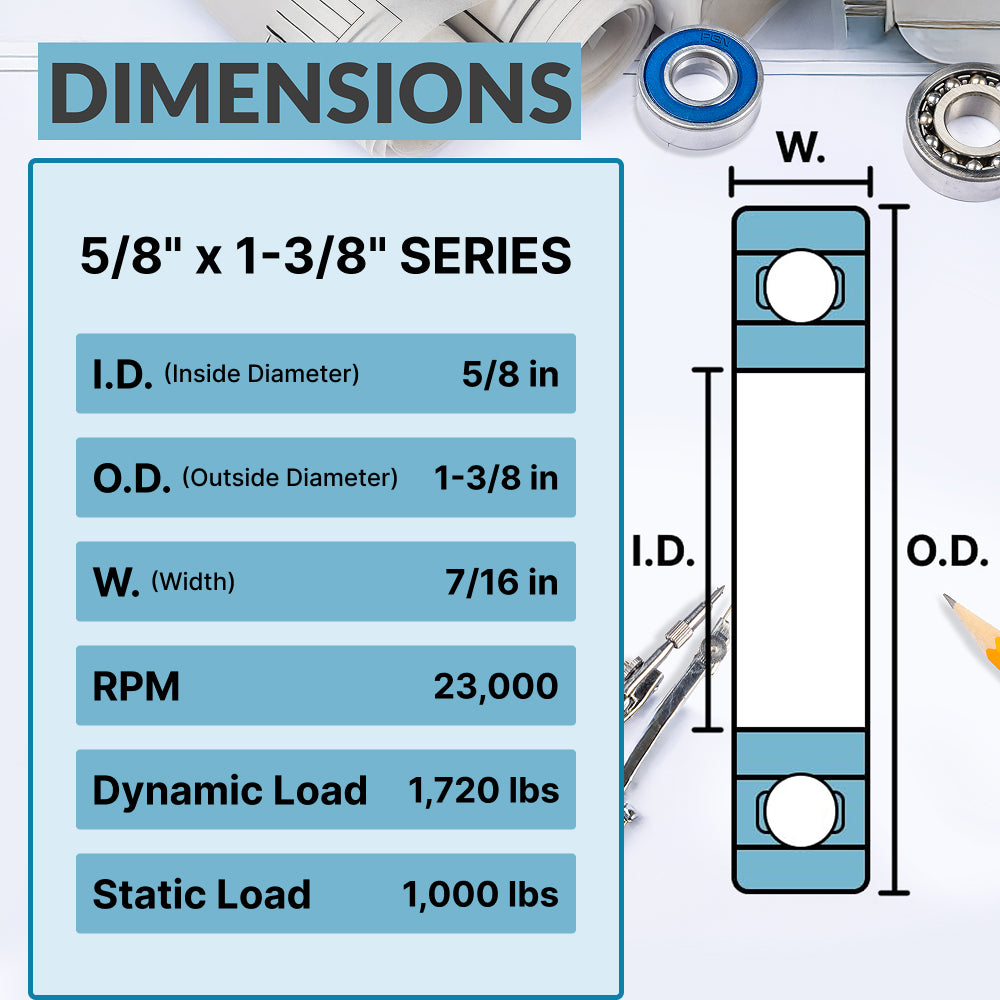

With dimensions of 5/8" x 1-3/8" and a width of 7/16", this bearing is manufactured from chrome steel and supplied factory pre-lubricated to provide efficient operation in wheels and rolling assemblies. The integrated flange helps maintain lateral positioning and simplifies installation in compact wheel hubs.

Applications for the 6202-2RS Flanged

This bearing is commonly used in rolling equipment and utility wheel systems, including:

• Lawn mower wheels
• Wheelbarrows
• Garden carts
• Hand trucks
• Pressure washers
• Utility carts
• Air compressors
• Rolling support systems

Flanged bearings are widely selected when a system requires improved lateral alignment and simplified installation inside compact wheel hubs.

Features of the 6202-2RS Flanged Ball Bearing

Integrated flange for improved positioning

The flange helps maintain correct bearing alignment inside the wheel hub during operation.

Double rubber seals

The 2RS configuration uses rubber seals on both sides to help retain lubrication while reducing exposure to dust and moderate moisture.

Smooth wheel operation

Deep groove geometry supports stable rotation, lower vibration, and efficient rolling performance in continuous-use applications.

Chrome steel construction

Chrome steel provides dependable mechanical strength and durability for utility equipment and light outdoor applications.

High-speed capability

This model supports up to 23,000 RPM, making it suitable for fast continuous movement systems.

When to Use a Flanged Bearing

Flanged bearings are commonly recommended for:

• Industrial wheels
• Lawn mower wheels
• Utility equipment
• Compact rolling systems
• Applications requiring improved lateral bearing retention

Usage Recommendations

To improve bearing service life:

• Check wheel alignment
• Avoid excessive impacts
• Keep the shaft clean
• Monitor uneven wear
• Use proper installation methods

PGN Bearings Product Line

PGN Bearings supplies industrial components for rotating and rolling mechanical applications. The product line includes ball bearings, flanged bearings, roller chains, pillow block bearings, steel balls, and additional products designed for dependable operation and long-term reliability.

FAQ

What is a flanged ball bearing?

A flanged ball bearing includes an integrated flange that helps support positioning and lateral retention during installation.

What size is the 6202-2RS Flanged?

This bearing features a 5/8" inner diameter and 1-3/8" outer diameter.

Can this bearing be used on lawn mowers?

Yes. This model is commonly used in lawn mower wheels, carts, and hand trucks.

Does the bearing come pre-lubricated?

Yes. The bearing comes factory pre-lubricated.

What is the advantage of the flange?

The flange helps stabilize the bearing inside the housing and simplifies installation in compact wheel hubs.
