ANSI Chain No.: #BL546
Lenght: 10 feet

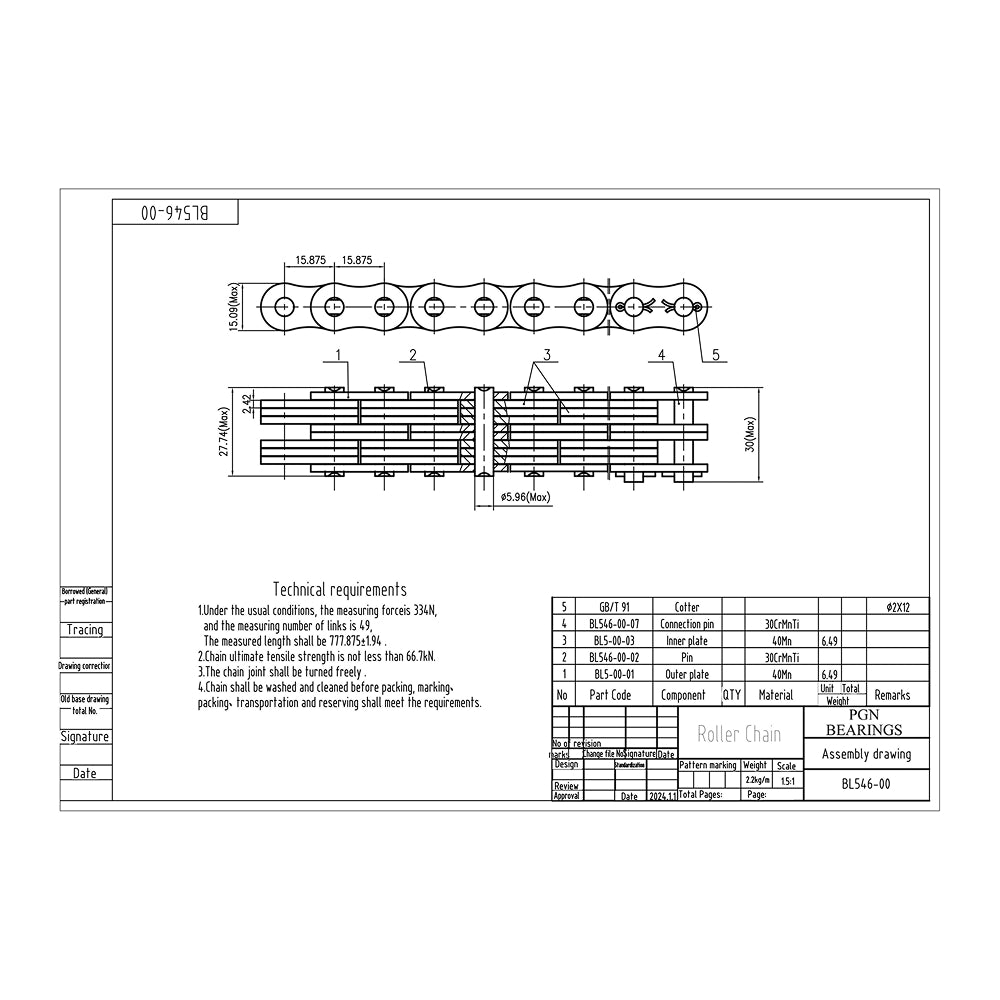

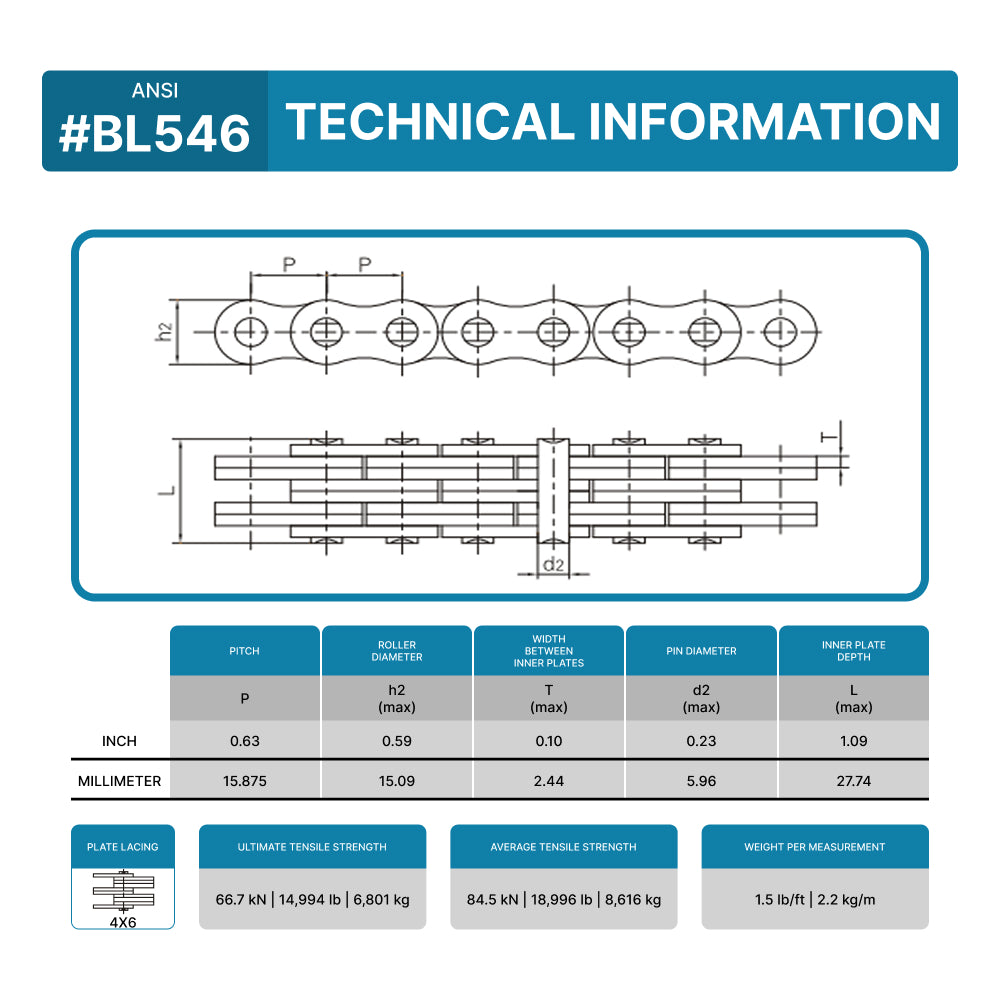

Pitch (P): 0.63 inch (15.87 mm)
Plate Lacing: 4x6
Inner Plate Depth (h2 max): 0.59 inch (15.09 mm)
Plate Thickness (T max): 0.10 inch (2.44 mm)
Pin Diameter (d2 max): 0.23 inch (5.96 mm)
Pin Lenght (L max): 1.09 inch (27.74 mm)
Ultimate Tensile Strenght (Q min): 66.7/14,994 kN/LB
Average Tensile Strenght (Qo): 84.5 kN
Weight (q): 1.5 lb/ft (2.2 kg/m)
Lenght: 10 feet
Pitch (P): 0.63 inch (15.87 mm)
Plate Lacing: 4x6
Inner Plate Depth (h2 max): 0.59 inch (15.09 mm)
Plate Thickness (T max): 0.10 inch (2.44 mm)
Pin Diameter (d2 max): 0.23 inch (5.96 mm)
Pin Lenght (L max): 1.09 inch (27.74 mm)
Ultimate Tensile Strenght (Q min): 66.7/14,994 kN/LB
Average Tensile Strenght (Qo): 84.5 kN
Weight (q): 1.5 lb/ft (2.2 kg/m)
