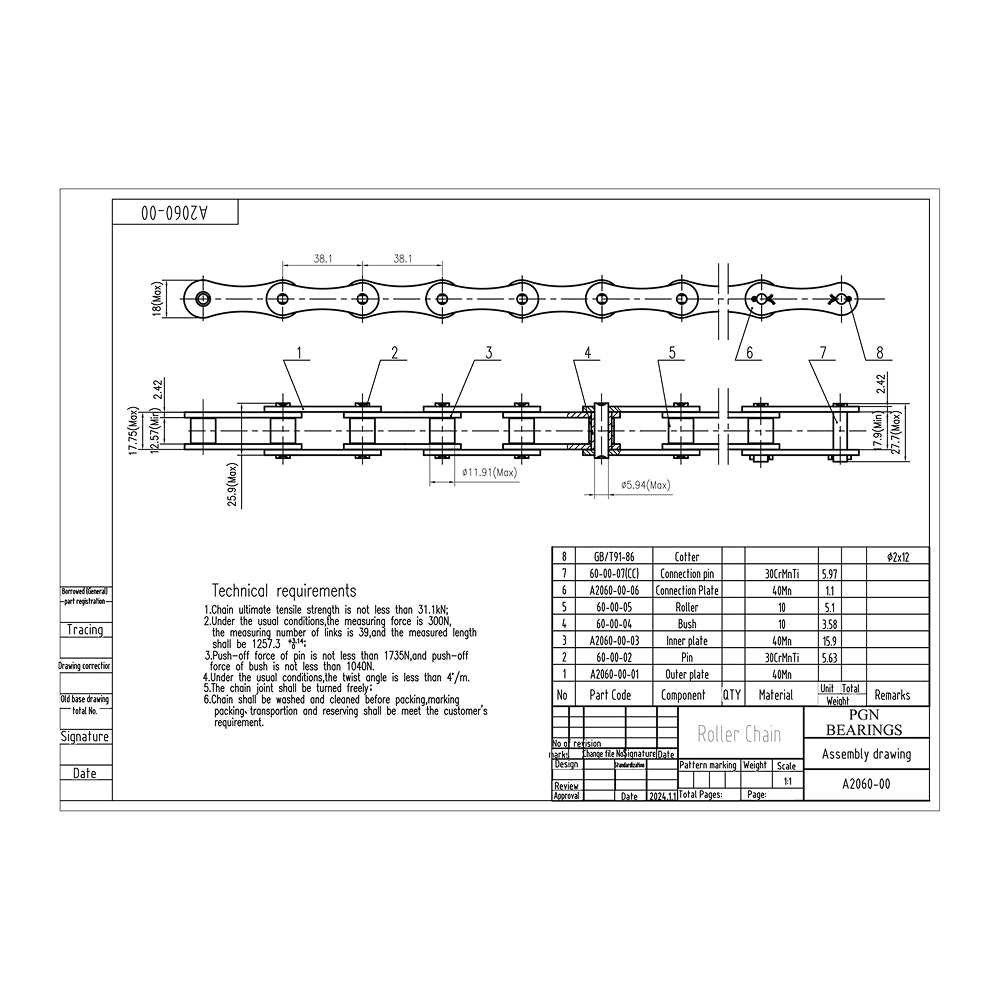

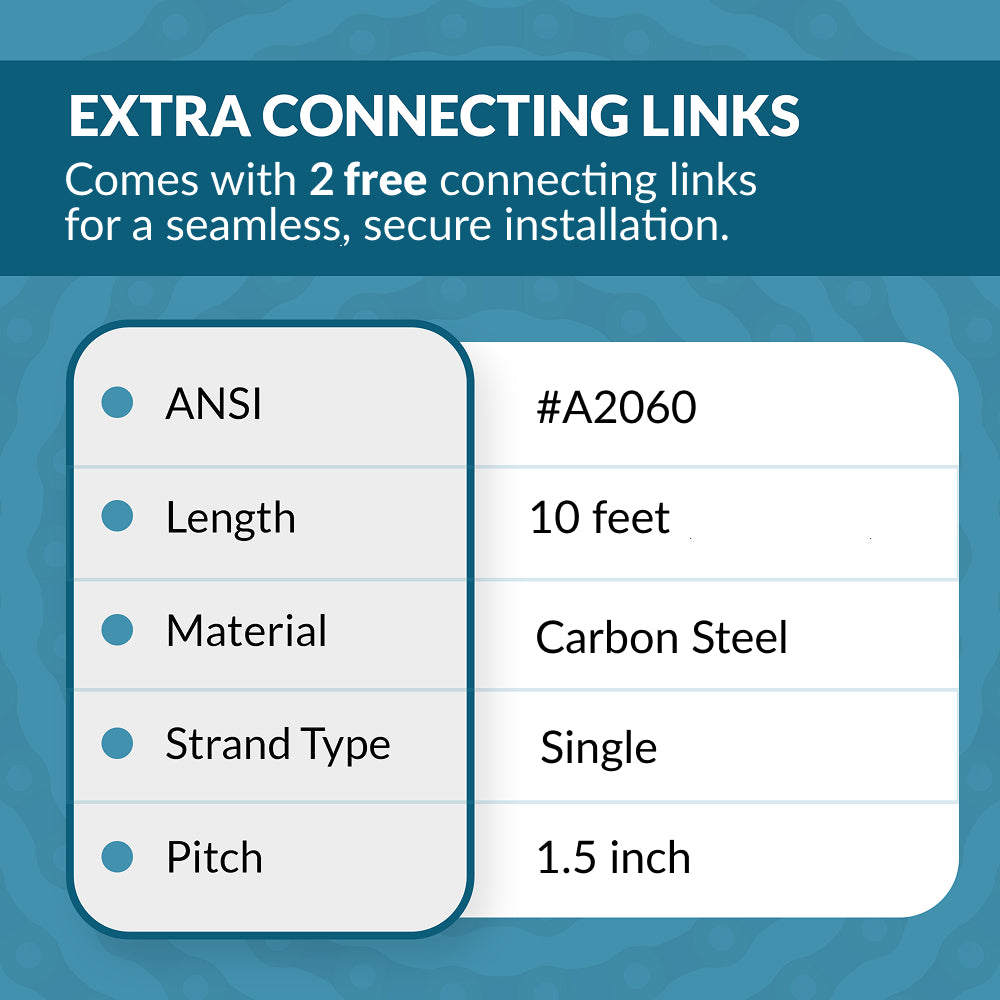

ANSI Chain No.: #A2060
Lenght: 10 feet

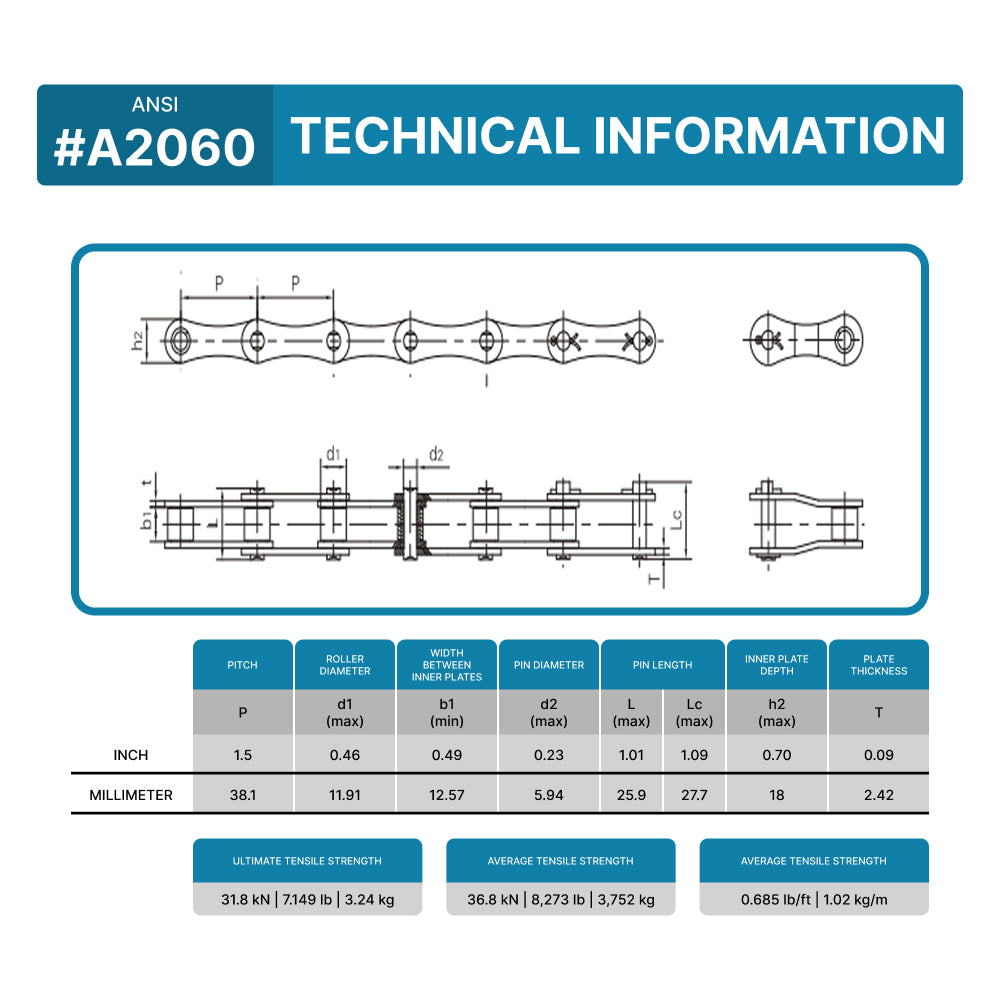

Pitch (P): 1.5 inch (38.1 mm)
Roller Diameter (d1 max): 0.469 inch (11.91 mm)
Width Between Inner Plates (b1 min): 0.495 inch (12.57 mm)
Pin Diameter (d2 max): 0.234 inch (5.94 mm)
Pin Lenght (L max): 1.02 inch (25.9 mm)
Pin Lenght (Lc max): 1.091 inch (27.7 mm)
Inner Plate Depth (h2 max): 0.709 inch (18 mm)
Plate Thickness (T): 0.095 inch (2.42 mm)
Ultimate Tensile Strenght (Q min): 31.8/7,149 kN/LB
Average Tensile Strenght (Qo): 36.8 kN
Weight (q): 1.02 lb/ft (0.685 kg/m)
Lenght: 10 feet
Pitch (P): 1.5 inch (38.1 mm)
Roller Diameter (d1 max): 0.469 inch (11.91 mm)
Width Between Inner Plates (b1 min): 0.495 inch (12.57 mm)
Pin Diameter (d2 max): 0.234 inch (5.94 mm)
Pin Lenght (L max): 1.02 inch (25.9 mm)
Pin Lenght (Lc max): 1.091 inch (27.7 mm)
Inner Plate Depth (h2 max): 0.709 inch (18 mm)
Plate Thickness (T): 0.095 inch (2.42 mm)
Ultimate Tensile Strenght (Q min): 31.8/7,149 kN/LB
Average Tensile Strenght (Qo): 36.8 kN
Weight (q): 1.02 lb/ft (0.685 kg/m)
