#A2050 Conveyor Roller Chain x 10 Feet + 2 Connecting Link

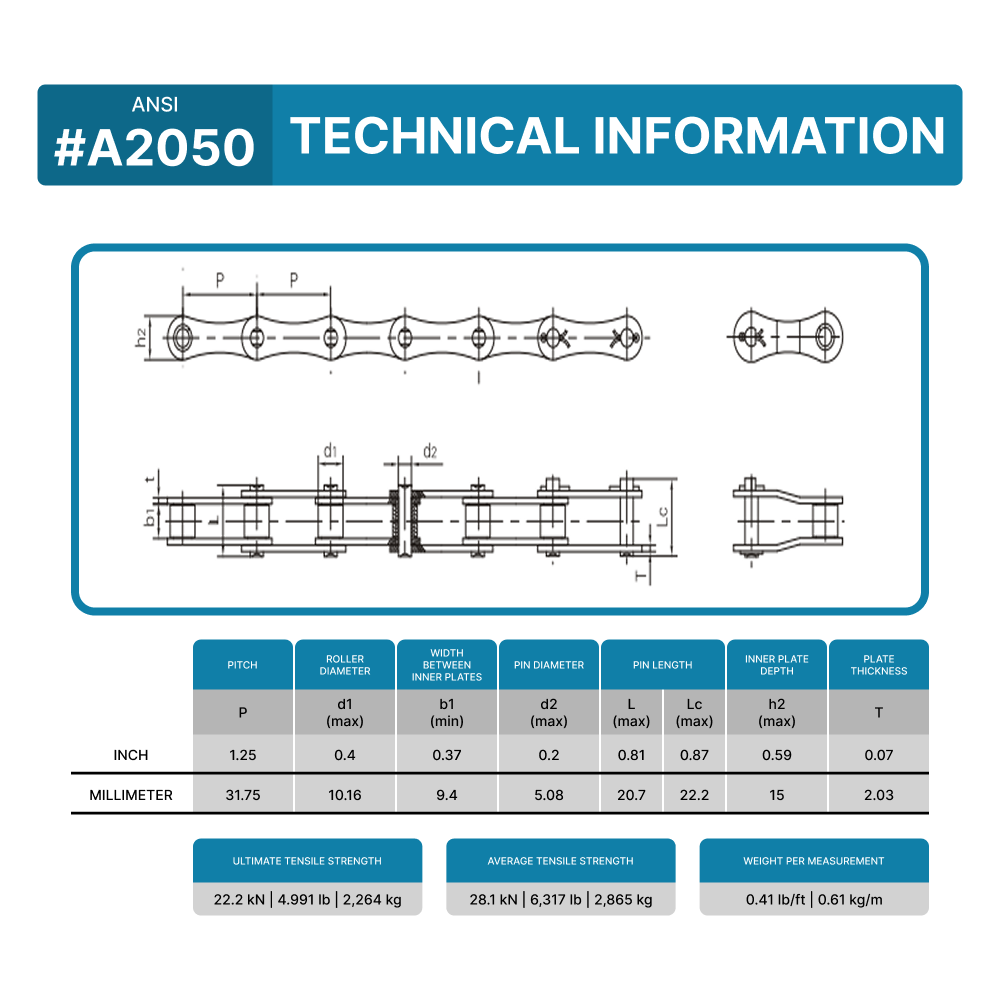

ANSI Chain No.: #A2050
Lenght: 10 feet

Pitch (P): 1.25 inch (31.75 mm)
Roller Diameter (d1 max): 0.4 inch (10.16 mm)
Width Between Inner Plates (b1 min): 0.37 inch (9.4 mm)
Pin Diameter (d2 max): 0.2 inch (5.08 mm)
Pin Lenght (L max): 0.81 inch (20.7 mm)
Pin Lenght (Lc max): 0.87 inch (22.2 mm)
Inner Plate Depth (h2 max): 0.59 inch (15 mm)
Plate Thickness (T): 0.08 inch (2.03 mm)
Ultimate Tensile Strenght (Q min): 22.2/4,991 kN/LB
Average Tensile Strenght (Qo): 28.1 kN
Weight (q): 0.61 lb/ft (0.04 kg/m)
