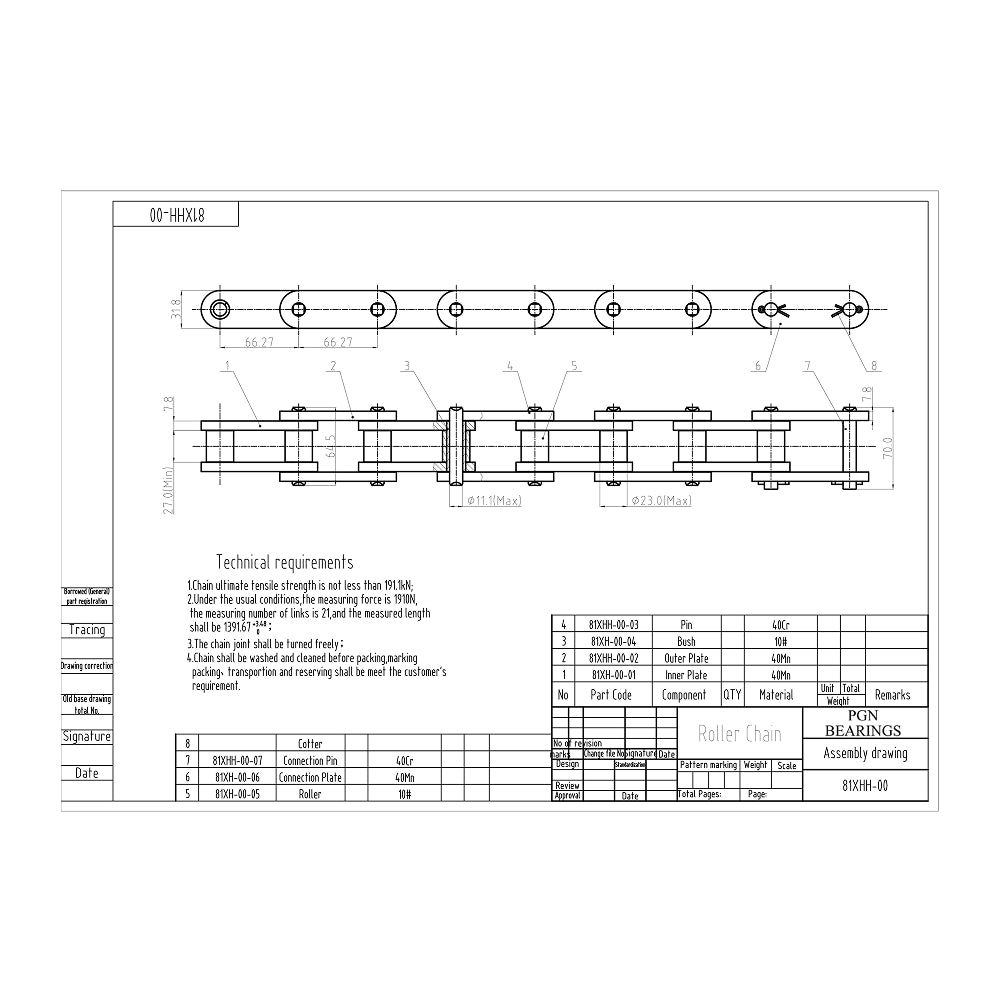

"#81XHH Carbon Steel Roller Chain x 10 feet

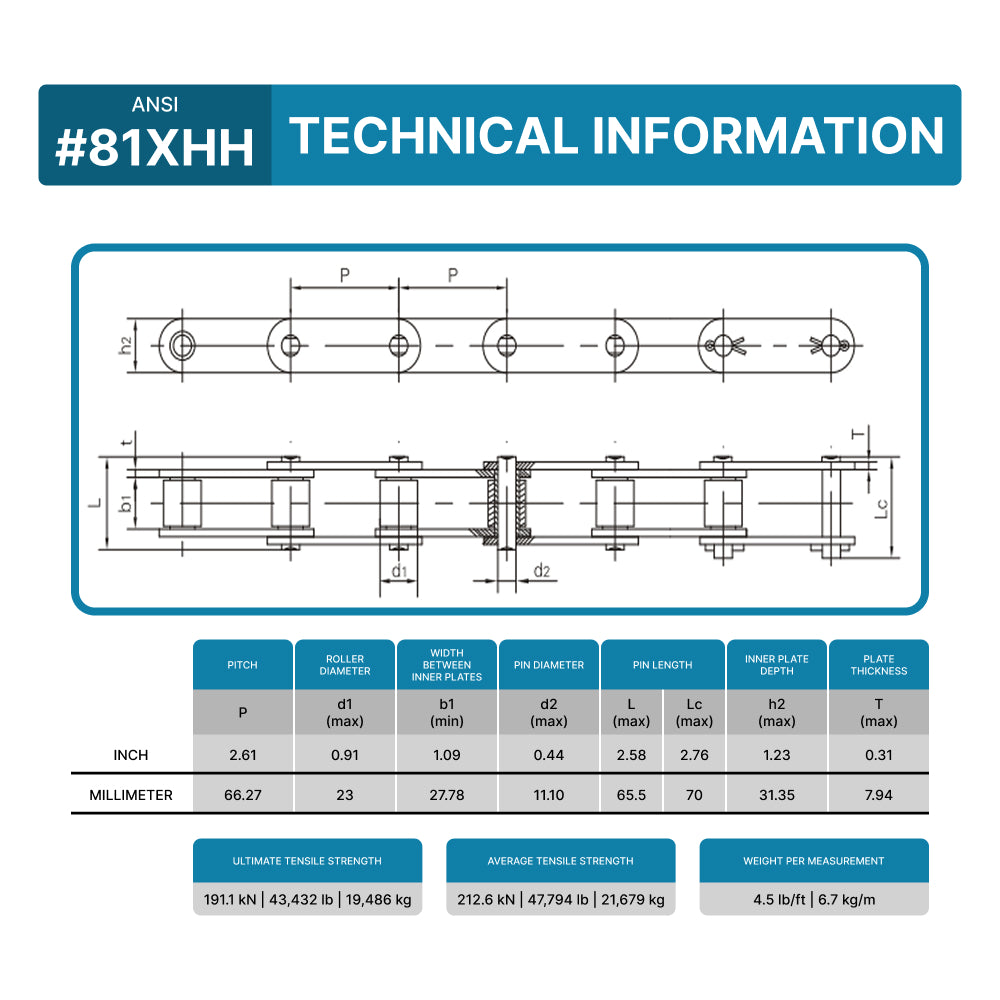

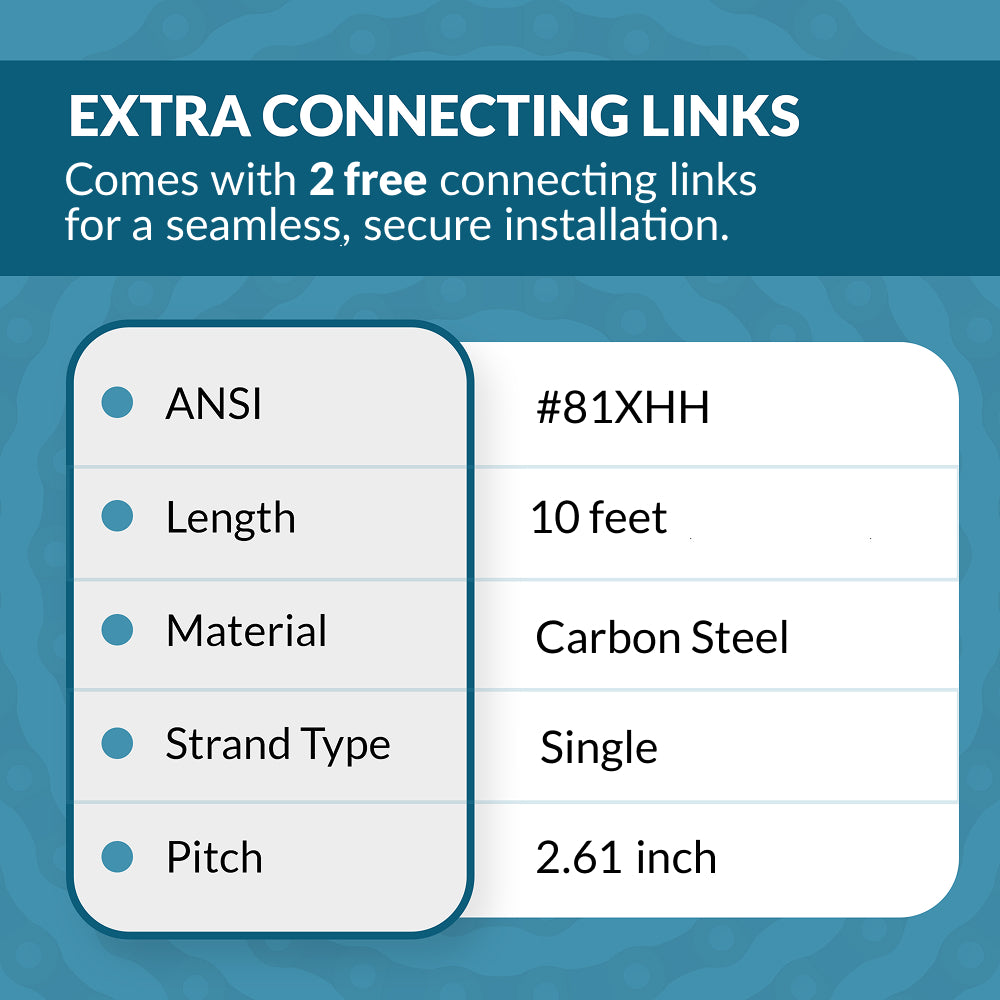

ANSI Chain No.: #81XHH
Length: 10 feet
Pitch (P): 2.61 inch (66.27 mm)
Roller Diameter (d1 max): 0.91 inch (23 mm)
Width Between Inner Plates (b1 min): 1.09 inch (27.78 mm)
Pin Diameter (d2 max): 0.44 inch (11.10 mm)
Pin Length (L max): 2.58 inch (65.5 mm)
Pin Length (Lc max): 2.76 inch (70 mm)
Inner Plate Depth (h2 max): 1.23 inch (31.35 mm)
Plate Thickness (T max): 0.31 inch (7.94 mm)
Ultimate Tensile Strenght (Q min): 191.1/43,432 kN/LB
Average Tensile Strenght (Qo): 212.6 kN
Weight (q): 4.5 lb/ft (6.7 kg/m) "
ANSI Chain No.: #81XHH
Length: 10 feet
Pitch (P): 2.61 inch (66.27 mm)
Roller Diameter (d1 max): 0.91 inch (23 mm)
Width Between Inner Plates (b1 min): 1.09 inch (27.78 mm)
Pin Diameter (d2 max): 0.44 inch (11.10 mm)
Pin Length (L max): 2.58 inch (65.5 mm)
Pin Length (Lc max): 2.76 inch (70 mm)
Inner Plate Depth (h2 max): 1.23 inch (31.35 mm)
Plate Thickness (T max): 0.31 inch (7.94 mm)
Ultimate Tensile Strenght (Q min): 191.1/43,432 kN/LB
Average Tensile Strenght (Qo): 212.6 kN
Weight (q): 4.5 lb/ft (6.7 kg/m) "
