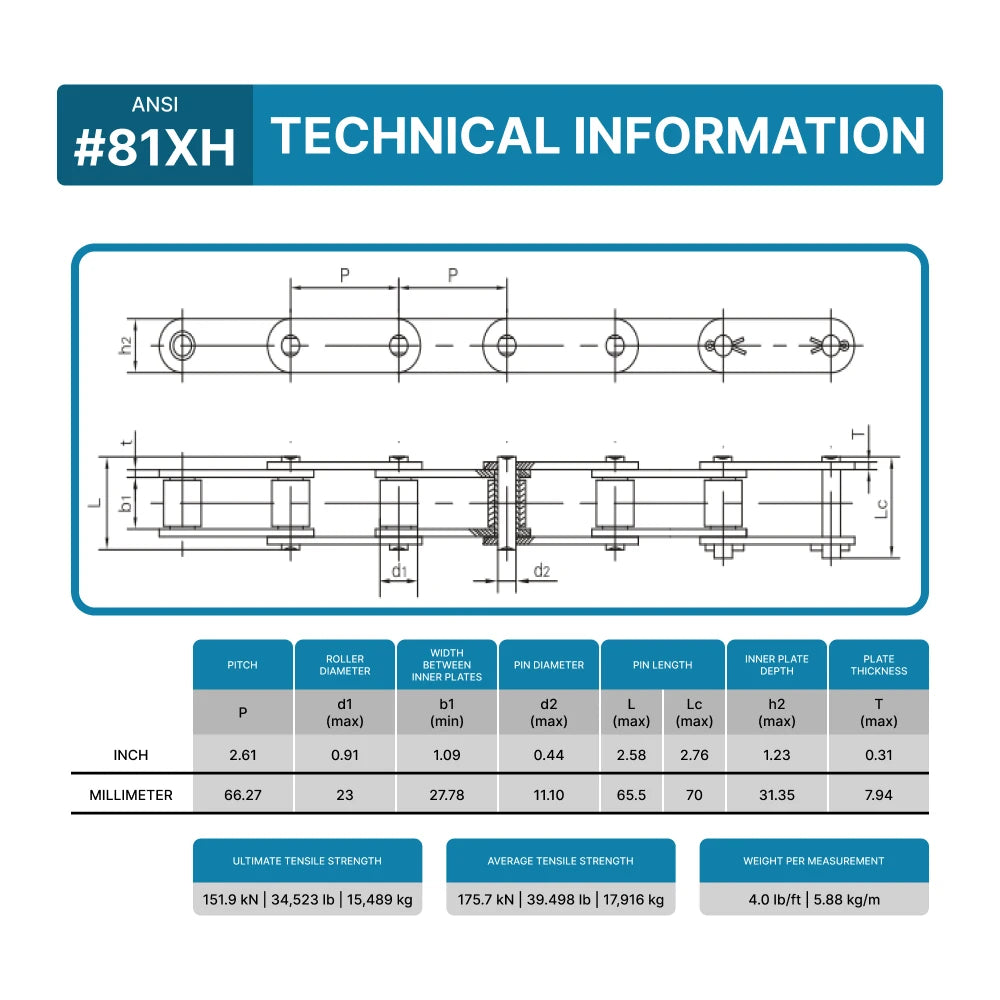

ANSI No |
#81XH | LENGTH | 10 ft |
| PITCH | 2.61 inch (66.27 mm) | ROLLER DIAMETER (D1 MAX) |
0.91 inch (23 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.09 inch (27.78 mm) | PIN DIAMETER (D2 MAX) |
0.44 inch (11.10 mm) |
| PIN LENGTH (L MAX) |
2.58 inch (65.5 mm) | PIN LENGTH (LC MAX) |
2.76 inch (70 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.23 inch (31.35 mm) | PLATE THICKNESS (T MAX) |
0.31 inch (7.94 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
151.9/34,523 kN/LB | WEIGHT | 4.0 lb/ft (5.88 kg/m) |
