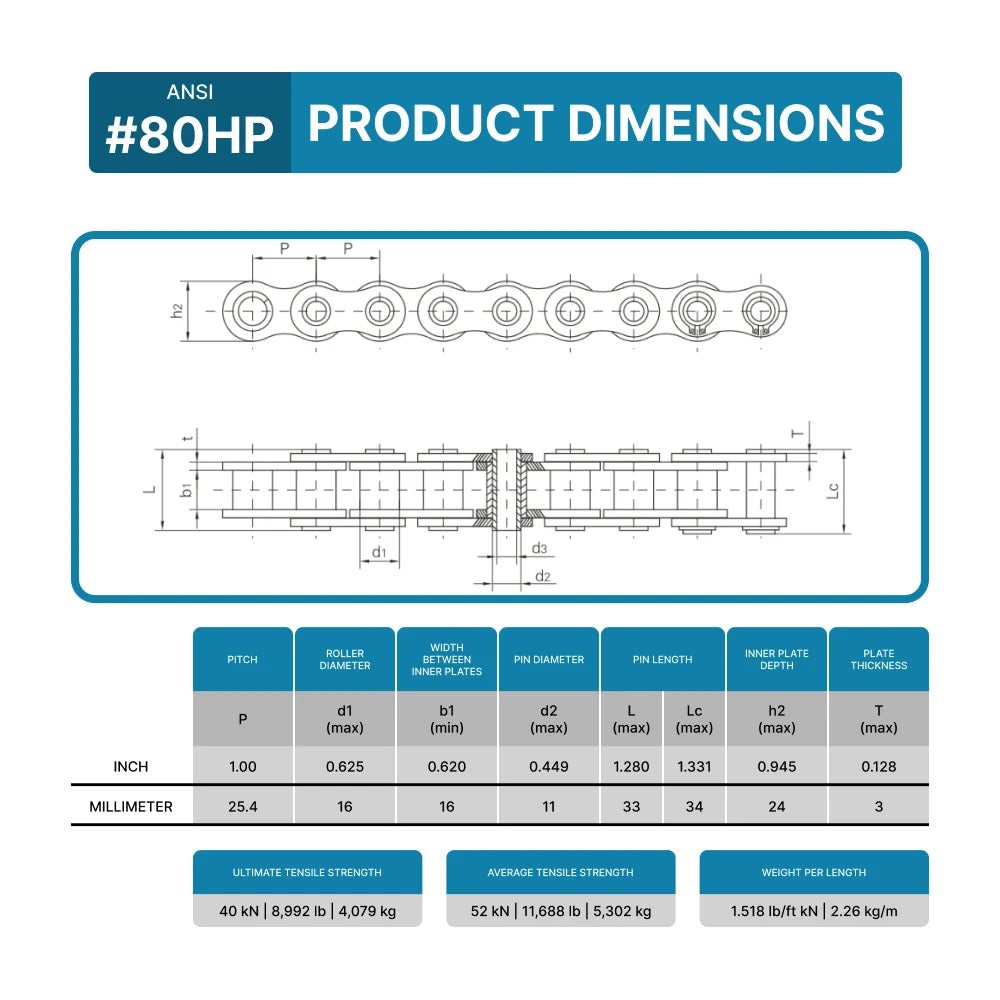

ANSI No |
#80HP | LENGTH | 10 ft |
| PITCH | 1.00 inch (25.4 mm) | ROLLER DIAMETER (D1 MAX) |
0.625 inch (16 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.620 inch (16 mm) | PIN DIAMETER (D2 MAX) |
0.449 inch (11 mm) |
| PIN LENGTH (L MAX) |
1.280 inch (33 mm) | PIN LENGTH (LC MAX) |
1.331 inch (34 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.945 inch (24 mm) | PLATE THICKNESS (T MAX) |
0.128 inch (3 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
40/8,992 kN/LB | WEIGHT | 1.518 lb/ft (2.26 kg/m) |
Read More
80HP Hollow Pin Roller Chain: Versatile Solution for Industrial Systems
The 80HP hollow pin roller chain is designed for applications that require both power transmission and system customization.
In addition, its hollow pin design allows attachments to be installed directly into the chain.
Another key advantage is flexibility. The 80HP hollow pin roller chain works well in conveyors and automation systems.
This results in improved efficiency and adaptability.
What is an 80HP Hollow Pin Chain?
The 80HP hollow pin roller chain is an ANSI #80 chain with hollow pins.
These hollow pins allow rods and attachments to be inserted directly into the chain.
It follows ANSI standards, ensuring compatibility with #80 sprockets.
This makes it ideal for both transmission and conveyor systems.
Where is it used?
The 80HP hollow pin roller chain is used in:
-
Conveyor systems
-
Packaging equipment
-
Automation lines
-
Material handling
Its hollow pins enable custom attachments.
Key Benefits
High versatility
Allows attachment integration.
ANSI compatibility
Works with standard sprockets.
Strong performance
Handles industrial loads.
Customization ready
Ideal for engineered systems.

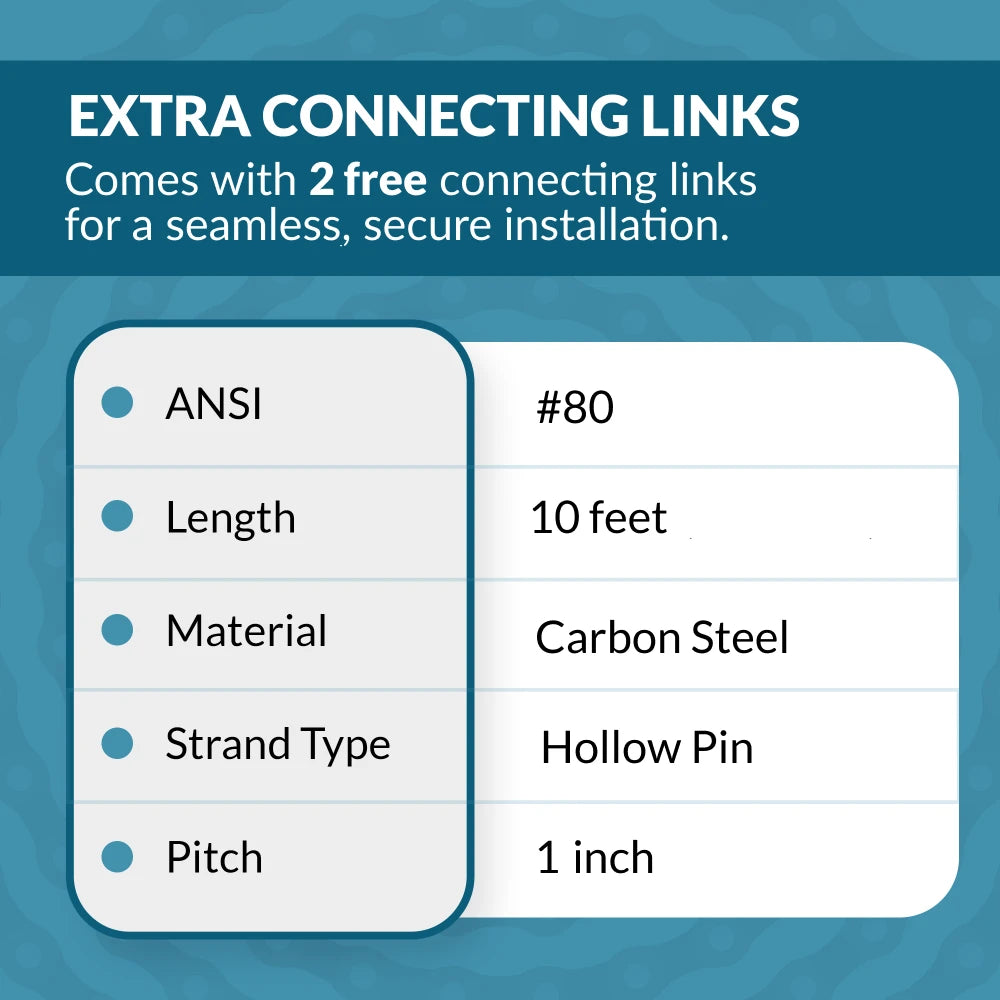

Technical Specifications
-
Standard: ANSI #80HP
-
Pitch: 1.00”
-
Type: Hollow pin roller chain
-
Material: Carbon steel
-
Length: 10FT
Average tensile strength is around 11,000 lbs.
How to Choose the Right Chain
Check if attachments are required.
Confirm sprocket compatibility.
Evaluate load conditions.
These steps ensure proper selection.
Maintenance Tips
Lubricate regularly.
Check alignment.
Inspect hollow pins.
These steps extend lifespan.
Why Choose PGN Bearings?
ANSI-compliant products.
Durable construction.
Fast shipping.
Technical support.
