ANSI No |

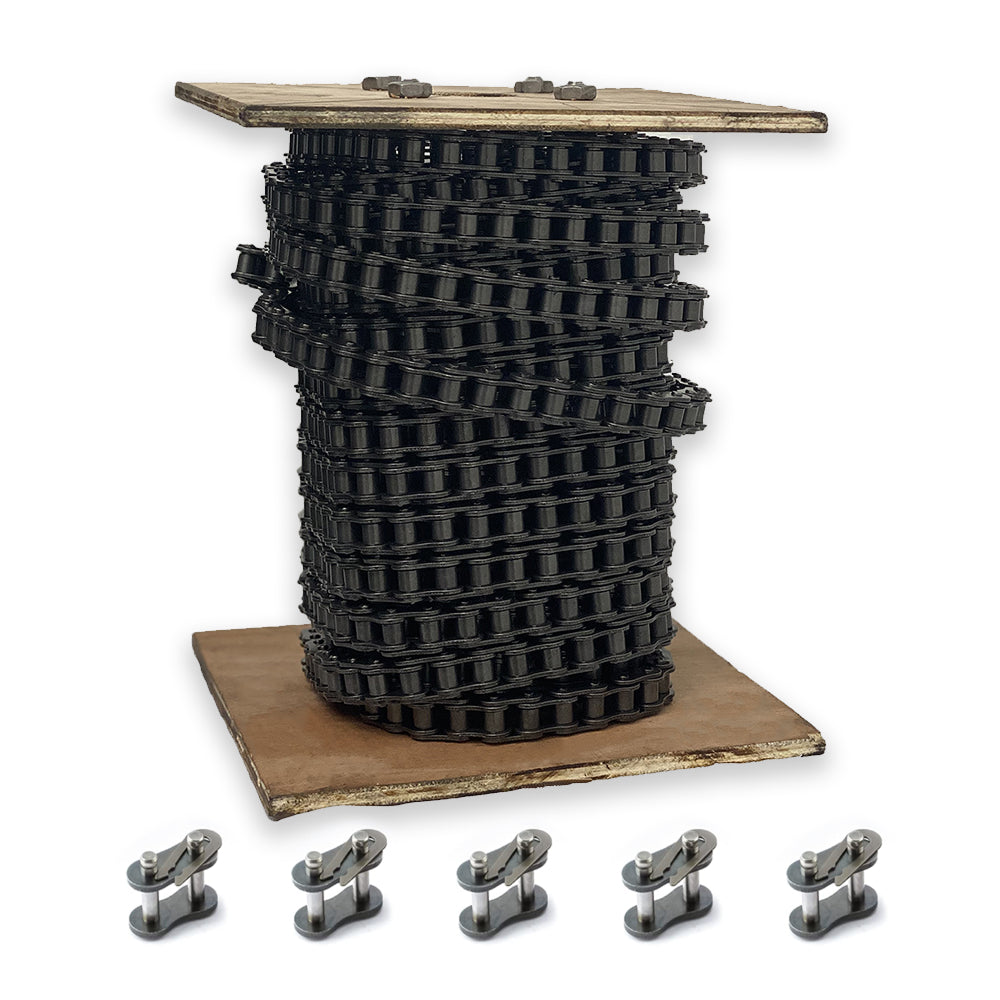

#80H | LENGTH | 50 ft |

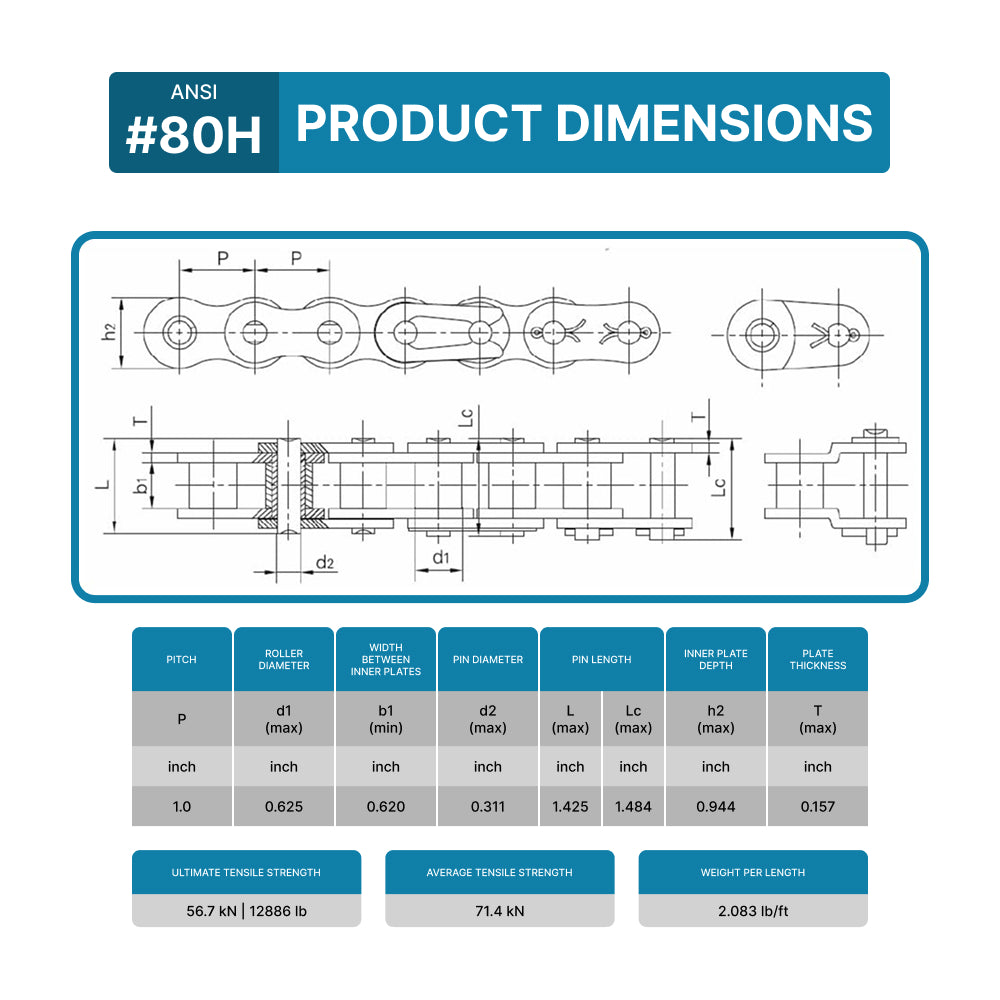

| PITCH | 1.0 inch (25.400 mm) | ROLLER DIAMETER (D1 MAX) |
0.625 inch (15.88 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.620 inch (15.75 mm) | PIN DIAMETER (D2 MAX) |
0.311 inch (7.92 mm) |
| PIN LENGTH (L MAX) |
1.425 inch (36.20 mm) | PIN LENGTH (LC MAX) |
1.484 inch (37.70 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.944 inch (24.00 mm) | PLATE THICKNESS (T MAX) |
0.157 inch (4.00 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
56.70/12886 kN/LB | WEIGHT | 2.083 lb/ft (3.1 kg/m) |
