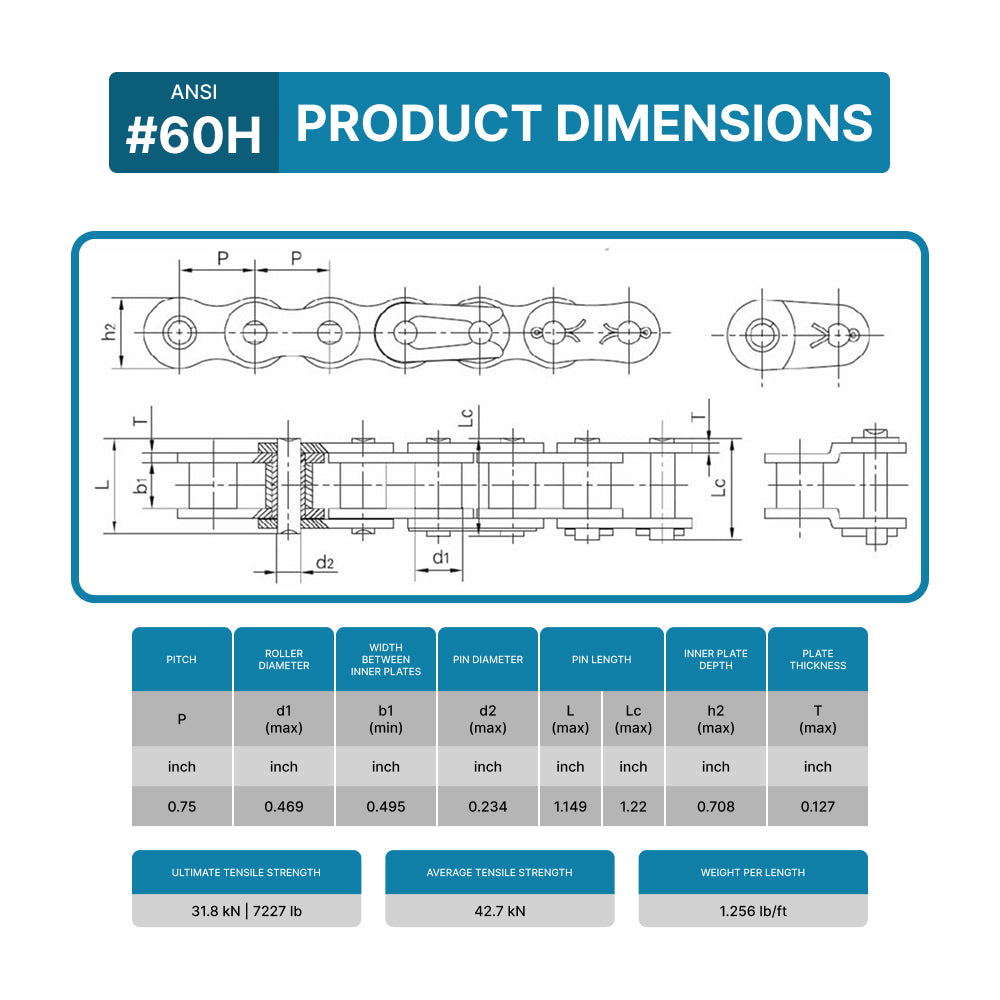

ANSI No |
#60H | LENGTH | 10 ft |
| PITCH | 0.75 inch (19.050 mm) | ROLLER DIAMETER (D1 MAX) |
0.469 inch (11.91 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.495 inch (12.57 mm) | PIN DIAMETER (D2 MAX) |
0.234 inch (5.94 mm) |
| PIN LENGTH (L MAX) |
1.149 inch (29.2 mm) |
PIN LENGTH (LC MAX) |
1.22 inch (31.0 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.708 inch (18.00 mm) | PLATE THICKNESS (T MAX) |
0.127 inch (3.25 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
31.80/7227 kN/LB | WEIGHT | 1.256 lb/ft (1.87 kg/m) |
