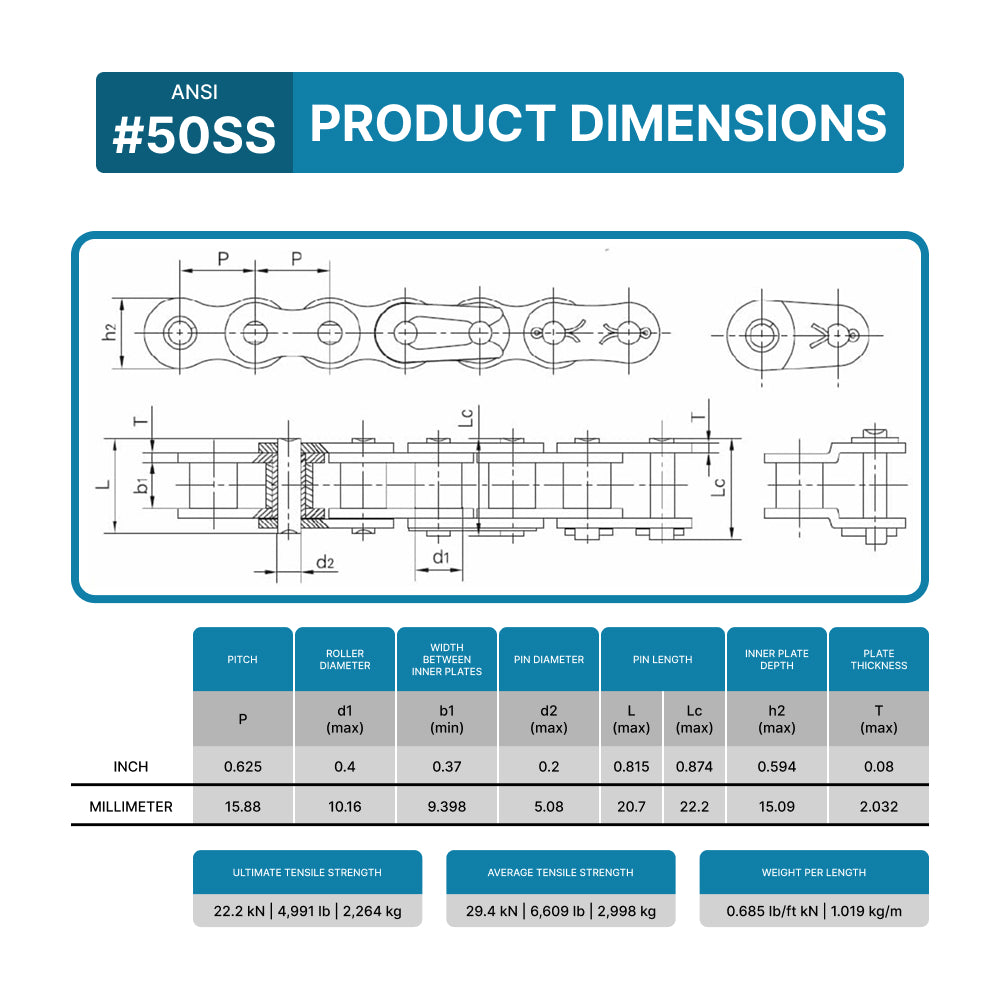

ANSI No |
#50 | LENGTH | 10 ft |
| PITCH | 0.625 inch (15.875 mm) | ROLLER DIAMETER (D1 MAX) |
0.4 inch (10.16 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.370 inch (9.4 mm) | PIN DIAMETER (D2 MAX) |
0.2 inch (5.08 mm) |
| PIN LENGTH (L MAX) |
0.815 inch (20.70 mm) | PIN LENGTH (LC MAX) |
0.874 inch (22.20 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.594 inch (15.09 mm) | PLATE THICKNESS (T MAX) |
0.080 inch (2.03 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
22.20/5045 kN/LB | WEIGHT | 0.685 lb/ft (1.02 kg/m) |
