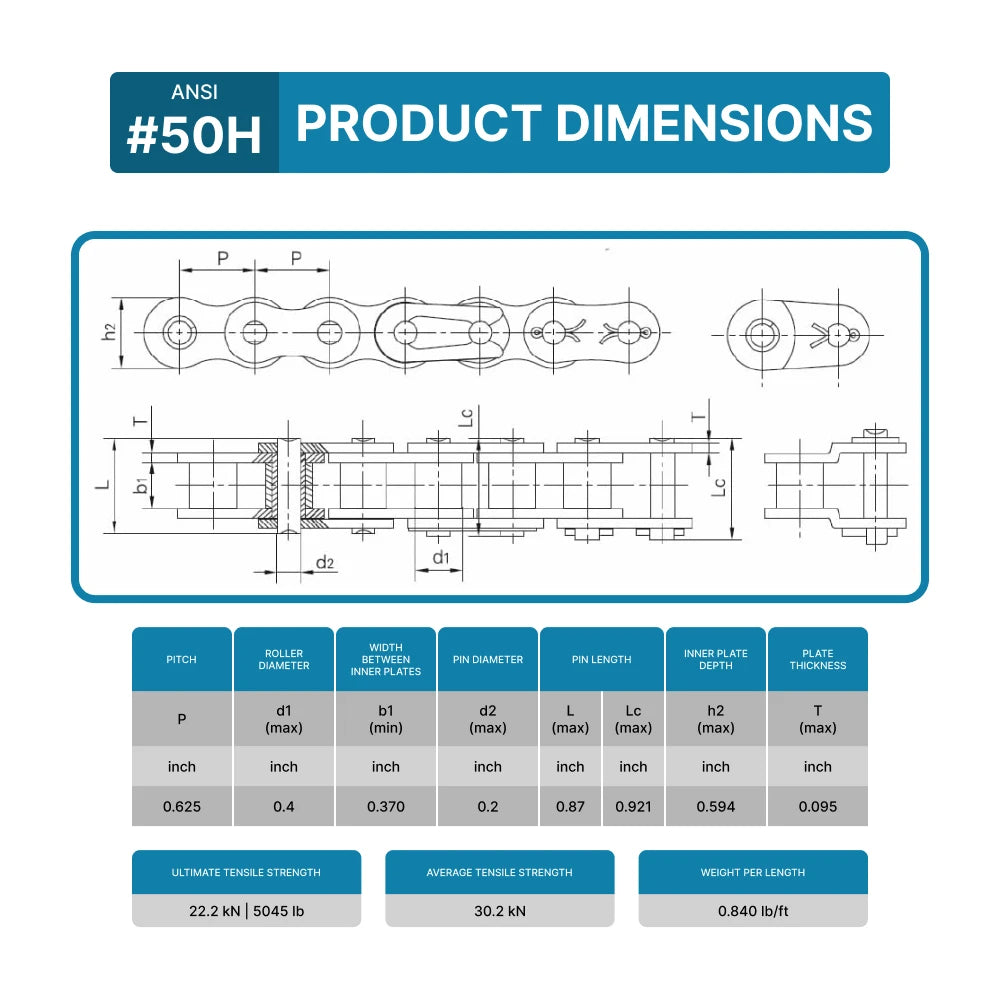

ANSI No |
#50H | LENGTH | 10 ft |
| PITCH | 0.625 inch (15.875 mm) | ROLLER DIAMETER (D1 MAX) |
0.4 inch (10.16 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.37 inch (9.398 mm) | PIN DIAMETER (D2 MAX) |
0.2 inch (5.08 mm) |
| PIN LENGTH (L MAX) |
0.87 inch (22.098 mm) | PIN LENGTH (LC MAX) |
0.921 inch (23.393 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.594 inch (15.087 mm) | PLATE THICKNESS (T MAX) |
0.095 inch (2.413 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
22.2/5045 kN/LB | WEIGHT | 0.84 lb/ft (1.25 kg/m) |
