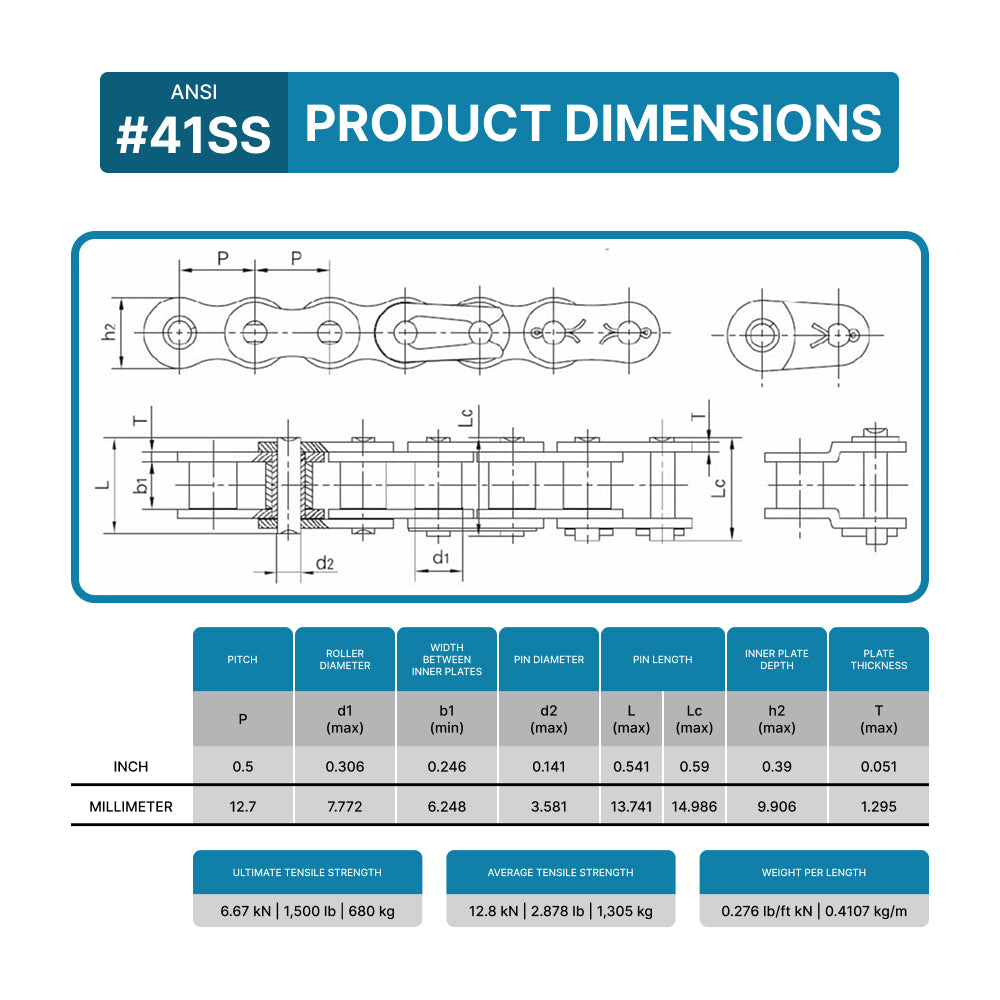

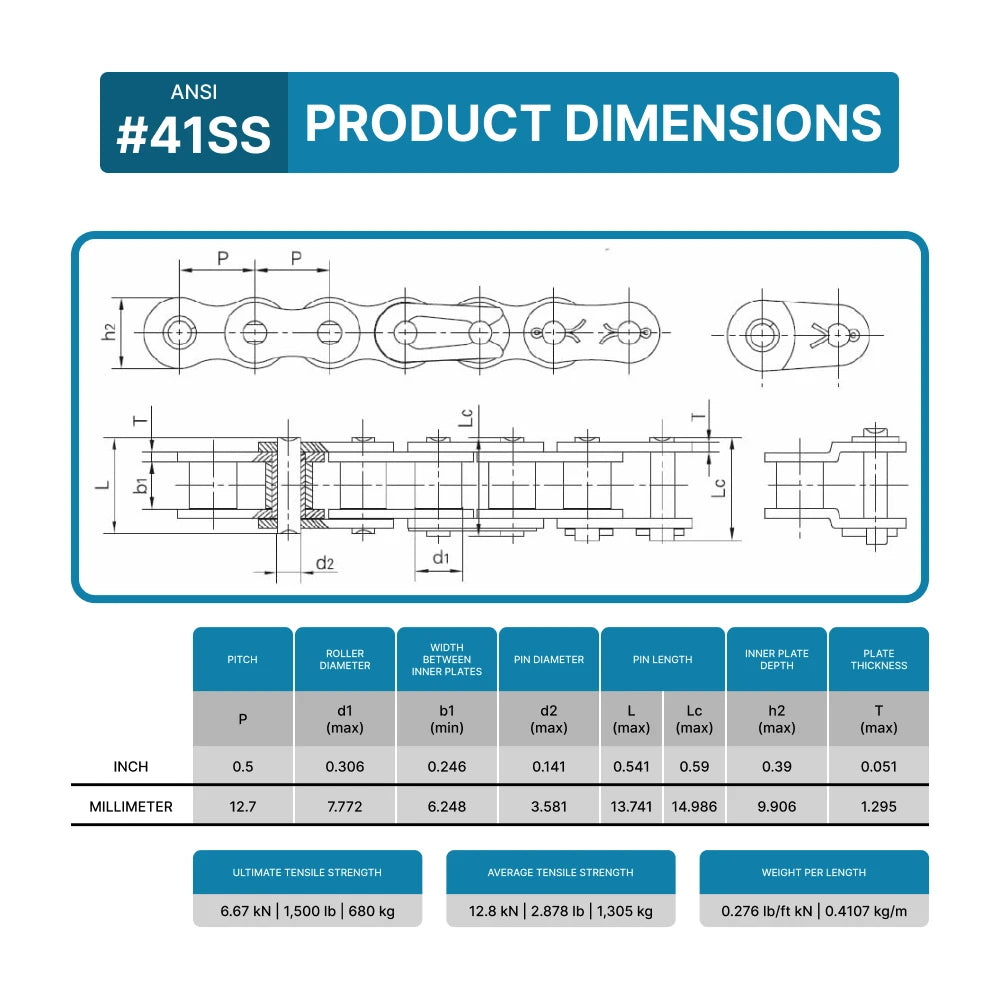

ANSI No |
#41SS | MATERIAL | Stainless Steel |
| PITCH | 0.5 inch (12.7 mm) | ROLLER DIAMETER (D1 MAX) |
0.306 inch (7.77 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.246 inch (6.25 mm) | PIN DIAMETER (D2 MAX) |
0.141 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.541 inch (13.75 mm) | PIN LENGTH (LC MAX) |
0.590 inch (15.00 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.390 inch (9.91 mm) | PLATE THICKNESS (T MAX) |
0.051 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
6.67/1516 kN/LB | WEIGHT | 0.276 lb/ft (0.41 kg/m) |
Read More
#41 Stainless Steel Connecting Link: Precision for Compact Chain Systems
The #41 stainless steel connecting link is designed to join chains quickly and securely. It is ideal for compact systems that require precision.
In addition, stainless steel provides excellent corrosion resistance. Therefore, it performs well in harsh environments.
Another key advantage is reliability. The #41 stainless steel connecting link maintains system stability during operation.
This results in less downtime and improved efficiency.
H2: What is a #41 Stainless Steel Connecting Link?
The #41 stainless steel connecting link is used to connect the ends of ANSI #41 chains.
It is also known as a master link. It allows quick installation without complex tools.
In practice, it ensures continuous motion transfer.
Its stainless steel construction improves durability and corrosion resistance.
What is it used for?
The #41 stainless steel connecting link is used to connect or repair chains.
It also allows quick adjustments.
It performs well in corrosive environments.
Its main function is to maintain system continuity.
Key Benefits
Corrosion resistance
Stainless steel prevents rust.
Easy installation
Quick assembly without tools.
Secure connection
Stable operation under load.
Compact application
Ideal for smaller chain systems.
Technical Specifications
-
Material: Stainless steel
-
Pitch: 0.5”
-
Compatibility: ANSI #41 chain
-
Application: Connection and repair
-
Use: Compact power transmission systems
How to Choose the Right Link
Check chain standard first.
Choose stainless steel for harsh environments.
Match application requirements.
This ensures safe operation.
Maintenance Tips
Install clip correctly.
Lubricate regularly.
Inspect frequently.
These steps improve lifespan.
PGN Connecting Link Line
Explore: https://pgnbearings.com/collections/connecting-links
#40 Connecting Link
Light-duty applications
#41 Stainless Steel Connecting Link
Compact and corrosion-resistant
#50 Stainless Steel Connecting Link
Higher load capacity
#60 Stainless Steel Connecting Link
Heavy-duty use
