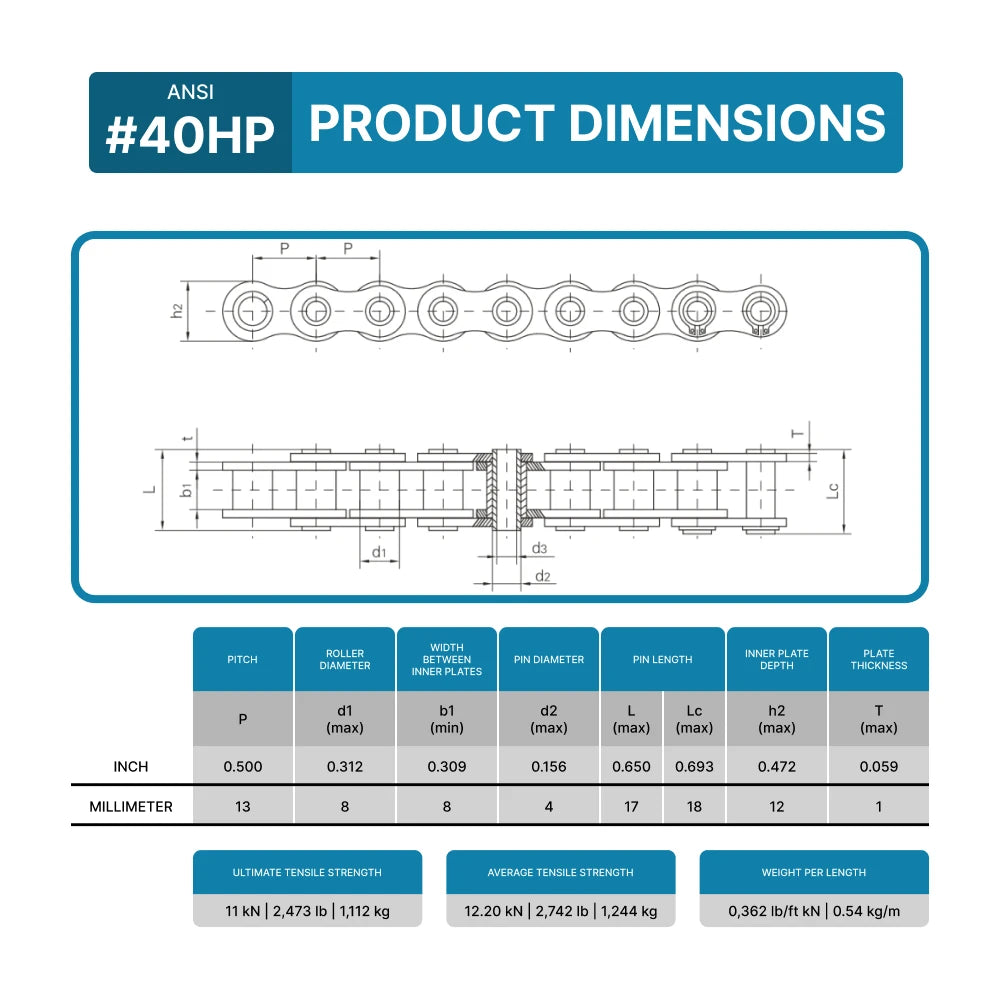

ANSI No |
#40HP | LENGTH | 10 ft |
| PITCH | 0.500 inch (13 mm) | ROLLER DIAMETER (D1 MAX) |
0.312 inch (8 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.309 inch (8 mm) | PIN DIAMETER (D2 MAX) |
0.156 inch (4 mm) |
| PIN LENGTH (L MAX) |
0.650 inch (17 mm) | PIN LENGTH (LC MAX) |
0.693 inch (18 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.472 inch (12 mm) | PLATE THICKNESS (T MAX) |
0.059 inch (1 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
11/2,473 kN/LB | WEIGHT | 0.362 lb/ft (0.54 kg/m) |
Read More
40HP Hollow Pin Roller Chain: Precision and Efficiency for Light Applications
The 40HP hollow pin roller chain is designed for applications that require precision, flexibility, and smooth operation.
In addition, its hollow pin design allows direct integration of attachments.
Another key advantage is efficiency. The 40HP hollow pin roller chain performs well in high-cycle operations.
This results in reduced wear and improved performance.
What is a 40HP Hollow Pin Chain?
The 40HP hollow pin roller chain is an ANSI #40 chain with hollow pins.
These pins allow rods and attachments to be inserted directly.
It follows ANSI standards, ensuring compatibility with #40 sprockets.
This makes it ideal for light transmission and automation systems.
Where is it used?
The 40HP hollow pin roller chain is used in:
-
Compact automation systems
-
Light packaging equipment
-
Assembly lines
-
Low-load conveyors
Its design allows easy customization.
Key Benefits
Precision performance
Ideal for repetitive systems.
Customization capability
Supports attachment integration.
ANSI compatibility
Works with standard sprockets.
Lightweight efficiency
Optimized for low-load applications.
How to Choose the Right Chain
Check attachment requirements.
Confirm sprocket compatibility.
Evaluate load conditions.
These steps ensure proper selection.
Maintenance Tips
Lubricate regularly.
Check alignment.
Inspect hollow pins.
These steps extend lifespan.
Why Choose PGN Bearings?
ANSI-compliant products.
Reliable performance.
Fast shipping.
Technical support.
