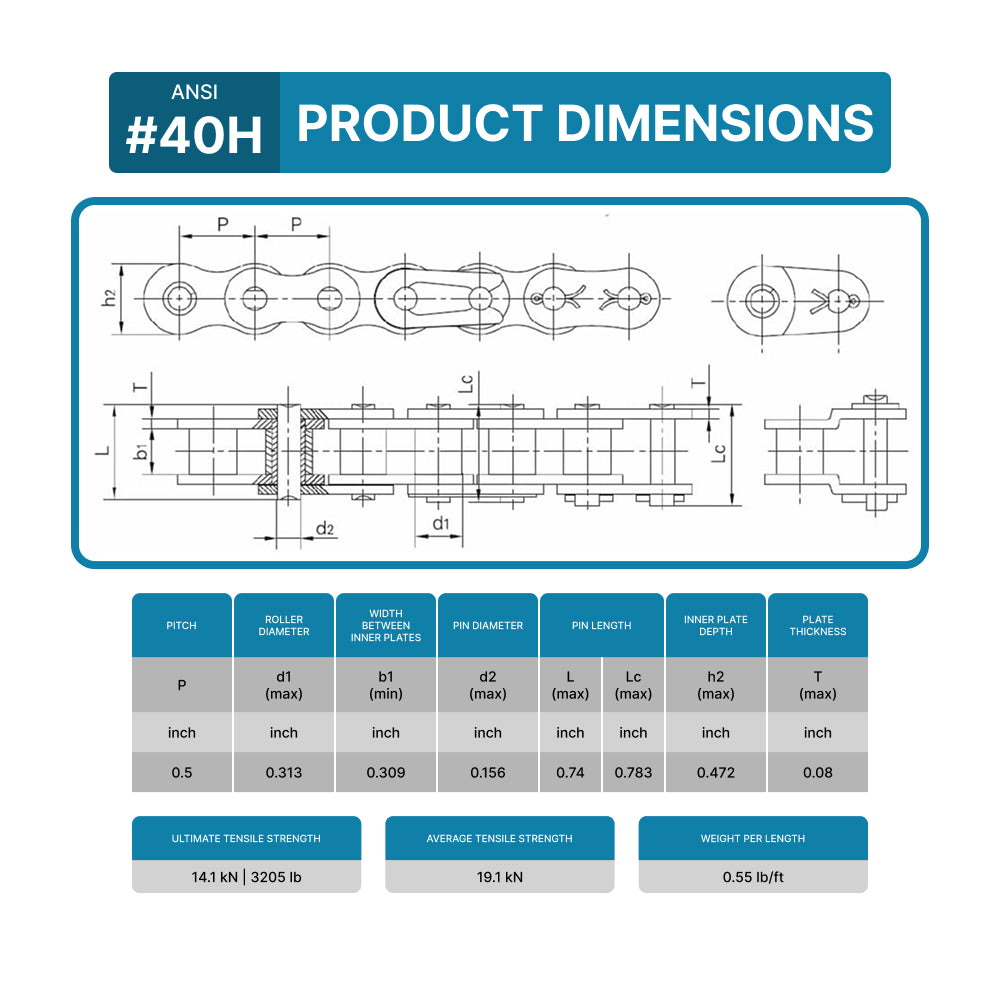

ANSI No |
#40H | LENGTH | 10 ft |
| PITCH | 0.50 inch (12.7 mm) | ROLLER DIAMETER (D1 MAX) |
0.313 inch (7.95 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.309 inch (7.85 mm) | PIN DIAMETER (D2 MAX) |
0.156 inch (3.96 mm) |
| PIN LENGTH (L MAX) |
0.74 inch (18.80 mm) | PIN LENGTH (LC MAX) |
0.783 inch (19.9 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.472 inch (12.0 mm) | PLATE THICKNESS (T MAX) |
0.08 inch (2.03 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
14.1/3205 kN/LB | WEIGHT | 0.55 lb/ft (0.82 kg/m) |
