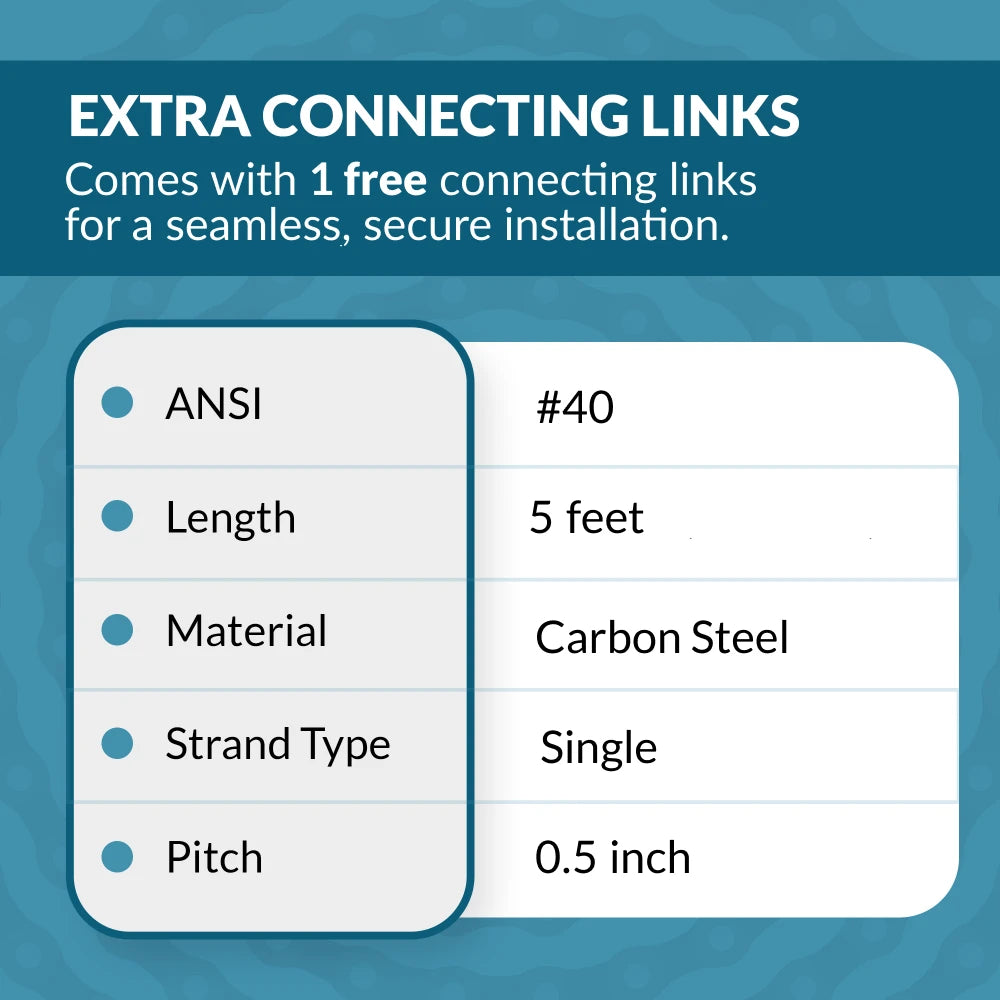

#40 Roller Chain x 5 feet
| ANSI CHAIN NO. | #40 | LENGTH | 5 ft |
| PITCH (P) | 0.5 in (12.7 mm) | ROLLER DIAMETER (d1 max) | 0.313 in (7.95 mm) |
| WIDTH BETWEEN INNER PLATES (b1 min) | 0.310 in (7.85 mm) | PIN DIAMETER (d2 max) | 0.156 in (3.96 mm) |
| PIN LENGTH (L max) | 0.654 in (16.60 mm) | PIN LENGTH (Lc max) | 0.701 in (17.80 mm) |
| INNER PLATE DEPTH (h2 max) | 0.472 in (12.0 mm) | PLATE THICKNESS (T max) | 0.059 in (1.50 mm) |
| ULTIMATE TENSILE STRENGTH (Q min) | 14.10 kN / 3,205 lb | AVERAGE TENSILE STRENGTH (Qo) | 17.5 kN |
| WEIGHT (q) | 0.417 lb/ft (0.62 kg/m) |
