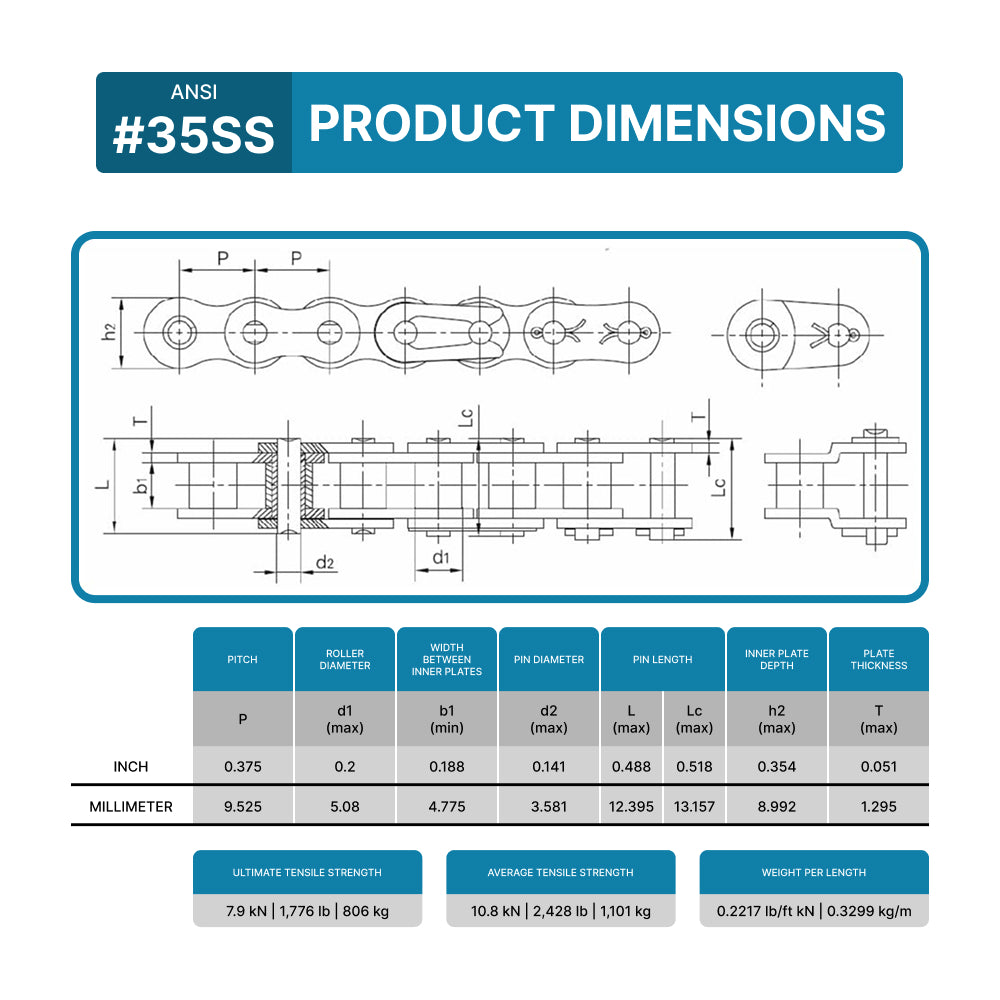

ANSI No |
#35SS | MATERIAL | Stainless Steel |
| PITCH | 0.375 inch (9.525 mm) | ROLLER DIAMETER (D1 MAX) |
0.2 inch (5.08 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.188 inch (4.77 mm) | PIN DIAMETER (D2 MAX) |
0.141 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.488 inch (12.40 mm) | PIN LENGTH (LC MAX) |
0.518 inch (13.17 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.354 inch (9.0 mm) | PLATE THICKNESS (T MAX) |
0.051 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
7.90/1795 kN/LB | WEIGHT | 0.221749 lb/ft (0.33 kg/m) |
Read More

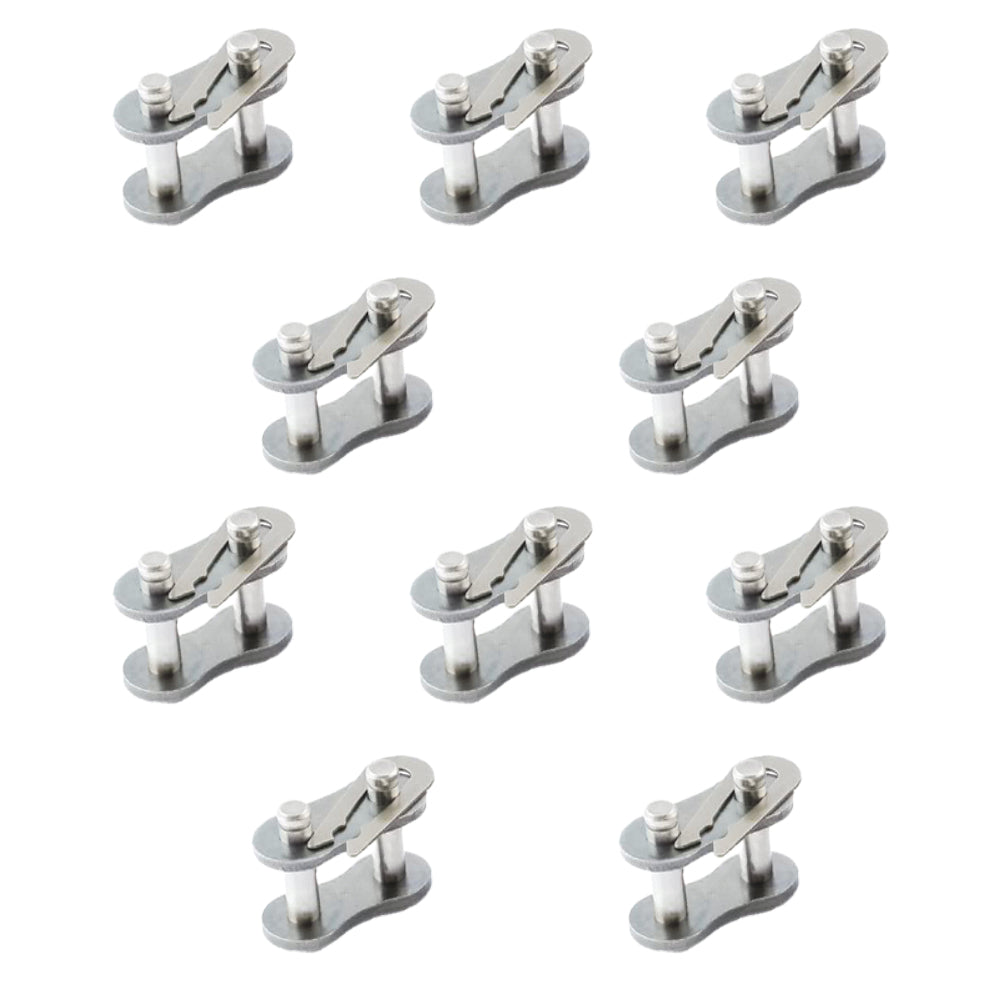

#35 Stainless Steel Connecting Link: Precision for Lightweight Chain Systems
The #35 stainless steel connecting link is designed to connect lightweight chains with safety and ease. It is ideal for compact systems that require precision.
In addition, stainless steel provides excellent corrosion resistance. Therefore, it performs well in harsh environments.
Another key advantage is ease of installation. The #35 stainless steel connecting link allows quick assembly without complex tools.
In daily use, this results in improved efficiency and reduced downtime.
What is a #35 Stainless Steel Connecting Link?
The #35 stainless steel connecting link is used to connect the ends of ANSI #35 chains.
It is also known as a master link. It enables quick assembly and disassembly.
In practice, it ensures continuous motion transfer.
Its stainless steel construction improves durability and corrosion resistance.
What is it used for?
The #35 stainless steel connecting link is used to connect or repair chains.
It also allows quick adjustments.
It performs well in corrosive environments.
Its main function is to maintain system continuity.
Key Benefits
Corrosion resistance
Stainless steel prevents rust.
Easy installation
Quick and simple setup.
Secure connection
Ensures stable operation.
Lightweight applications
Ideal for compact systems.
Technical Specifications
-
Material: Stainless steel
-
Pitch: 0.375”
-
Compatibility: ANSI #35 chain
-
Application: Connection and repair
-
Use: Lightweight transmission systems
How to Choose the Right Link
Check chain standard first.
Choose stainless steel for corrosive environments.
Match application requirements.
This ensures safe operation.
Maintenance Tips
Install clip correctly.
Lubricate regularly.
Inspect frequently.
These steps extend lifespan.
PGN Connecting Link Line
Explore: https://pgnbearings.com/collections/connecting-links
#35 Stainless Steel Connecting Link
Light-duty precision systems
#40 Stainless Steel Connecting Link
Compact and durable
#50 Stainless Steel Connecting Link
Higher load capacity
#60 Stainless Steel Connecting Link
Heavy-duty environments
Why Choose PGN Bearings?
ANSI-compliant products.
High-quality stainless steel.
Fast shipping.
Technical support.
