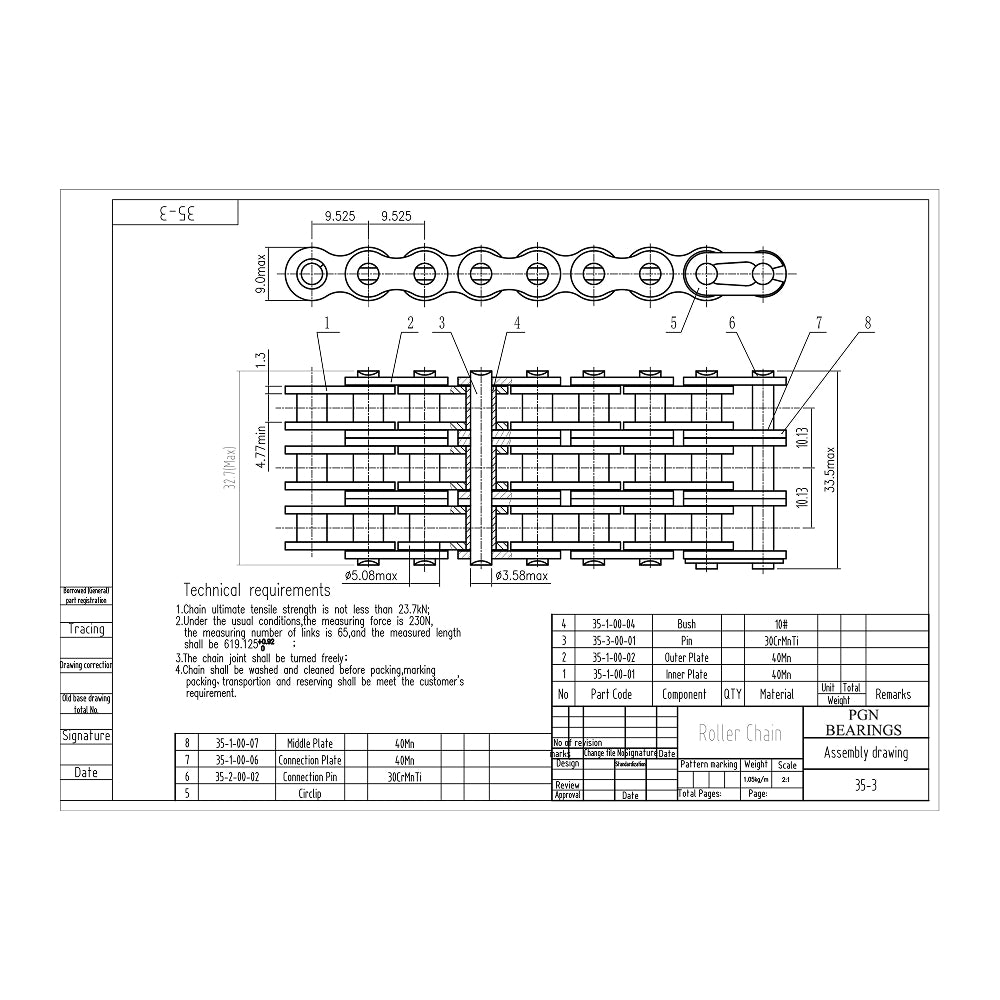

"#35-3 Carbon Steel Roller Chain x 10 feet
ANSI Chain No.: #35-3
Length: 10 feet
Pitch (P): 0.38 inch (9.525 mm)
Roller Diameter (d1 max): 0.2 inch (5.08 mm)
Width Between Inner Plates (b1 min): 0.19 inch (4.77 mm)
Pin Diameter (d2 max): 0.14 inch (3.58 mm)
Pin Length (L max): 1.29 inch (32.7 mm)
Pin Length (Lc max): 1.32 inch (33.5 mm)
Inner Plate Depth (h2 max): 0.35 inch (9 mm)
Plate Thickness (T max): 0.05 inch (1.3 mm)
Ultimate Tensile Strenght (Q min): 23.7/5,386 kN/LB
Average Tensile Strenght (Qo): 28.6 kN
Weight (q): 0.7 lb/ft (1.5 kg/m) "
ANSI Chain No.: #35-3
Length: 10 feet
Pitch (P): 0.38 inch (9.525 mm)
Roller Diameter (d1 max): 0.2 inch (5.08 mm)
Width Between Inner Plates (b1 min): 0.19 inch (4.77 mm)
Pin Diameter (d2 max): 0.14 inch (3.58 mm)
Pin Length (L max): 1.29 inch (32.7 mm)
Pin Length (Lc max): 1.32 inch (33.5 mm)
Inner Plate Depth (h2 max): 0.35 inch (9 mm)
Plate Thickness (T max): 0.05 inch (1.3 mm)
Ultimate Tensile Strenght (Q min): 23.7/5,386 kN/LB
Average Tensile Strenght (Qo): 28.6 kN
Weight (q): 0.7 lb/ft (1.5 kg/m) "
