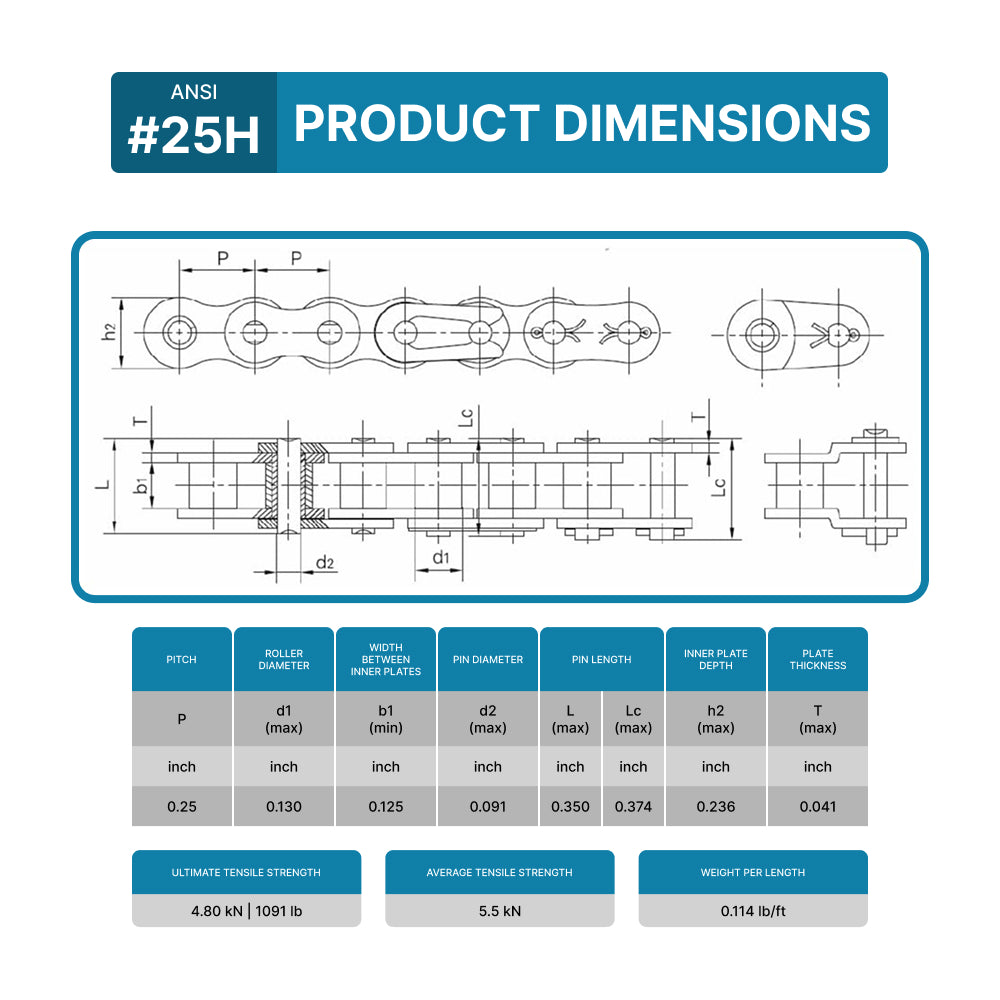

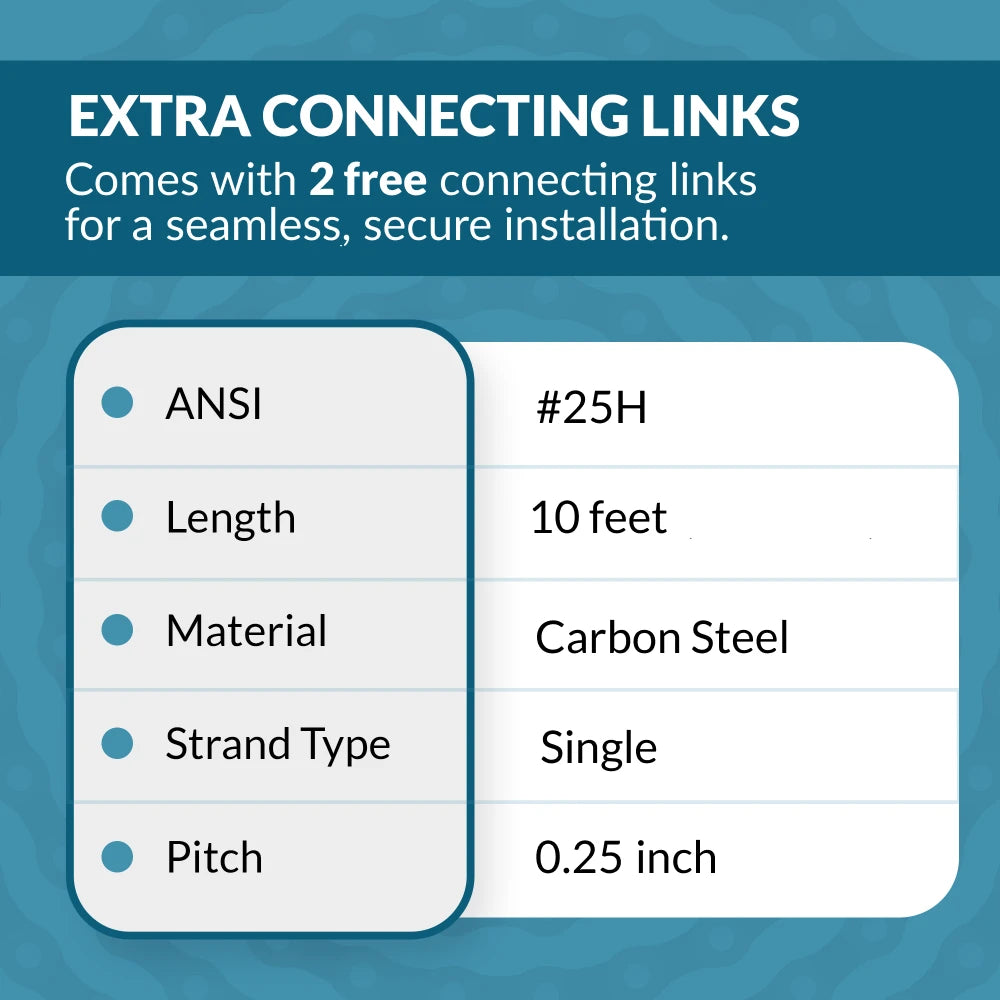

ANSI No |
#25H | LENGTH | 10 ft |
| PITCH | 0.25 inch (6.350 mm) | ROLLER DIAMETER (D1 MAX) |
0.130 inch (3.30 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.125 inch (3.18 mm) | PIN DIAMETER (D2 MAX) |
0.091 inch (2.31 mm) |
| PIN LENGTH (L MAX) |
0.350 inch (8.90 mm) |
PIN LENGTH (LC MAX) |
0.374 inch (9.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.236 inch (6.0 mm) | PLATE THICKNESS (T MAX) |
0.041 inch (1.04 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
4.80/1091 kN/LB | WEIGHT | 0.114 lb/ft (0.17 kg/m) |
