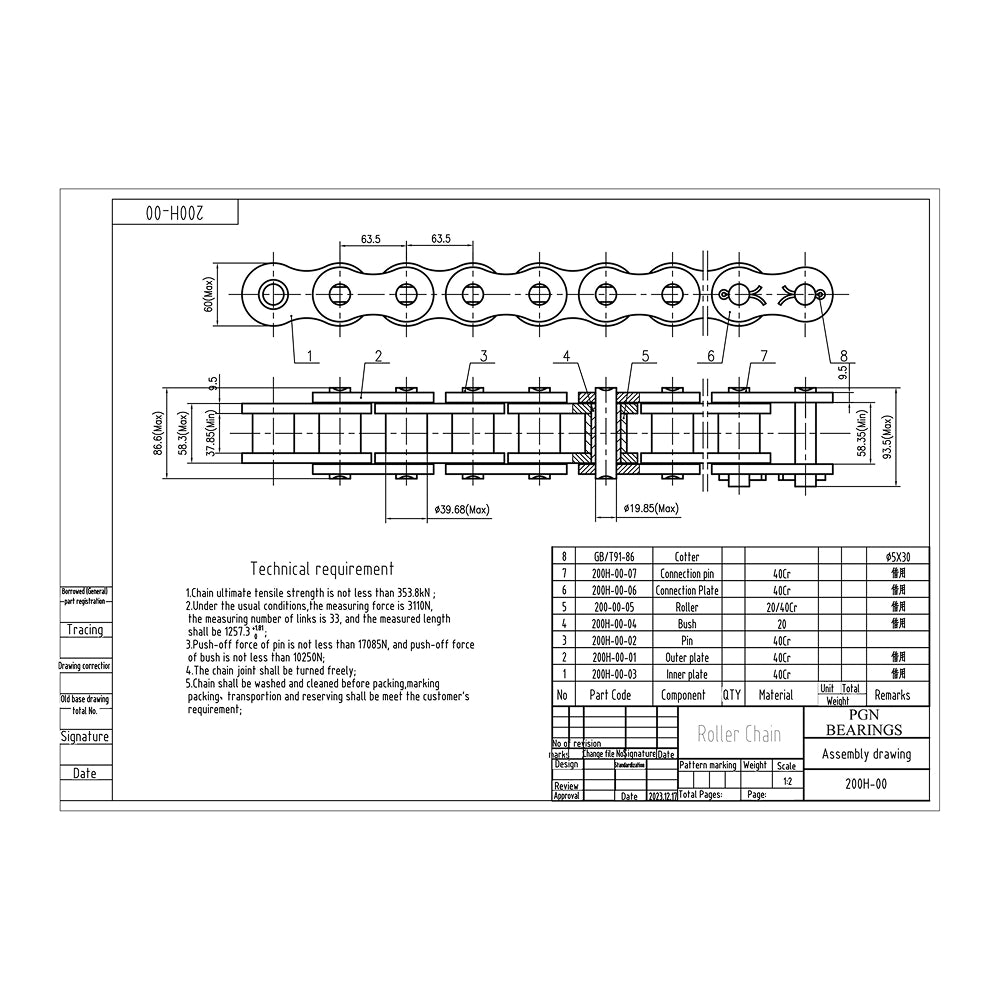

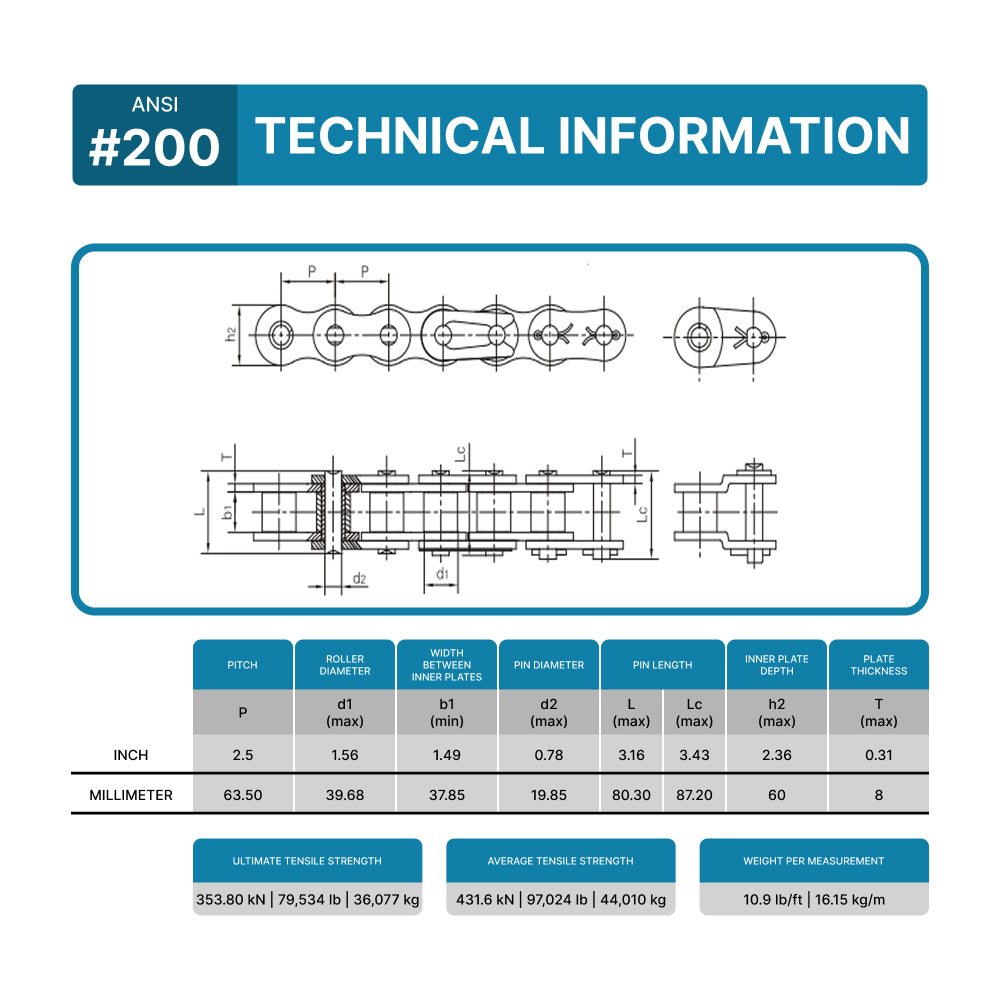

ANSI No |
#200H | LENGTH | 10 ft |
| PITCH | 2.5 inch (63.50 mm) | ROLLER DIAMETER (D1 MAX) |
1.56 inch (39.68 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.49 inch (37.85 mm) | PIN DIAMETER (D2 MAX) |
0.78 inch (19.85 mm) |
| PIN LENGTH (L MAX) |
3.41 inch (86.6 mm) | PIN LENGTH (LC MAX) |
3.68 inch (93.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
2.36 inch (60.00 mm) | PLATE THICKNESS (T MAX) |
0.37 inch (9.5 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
353.80/79,534 kN/LB | WEIGHT | 13.2 lb/ft (19.6 kg/m) |
