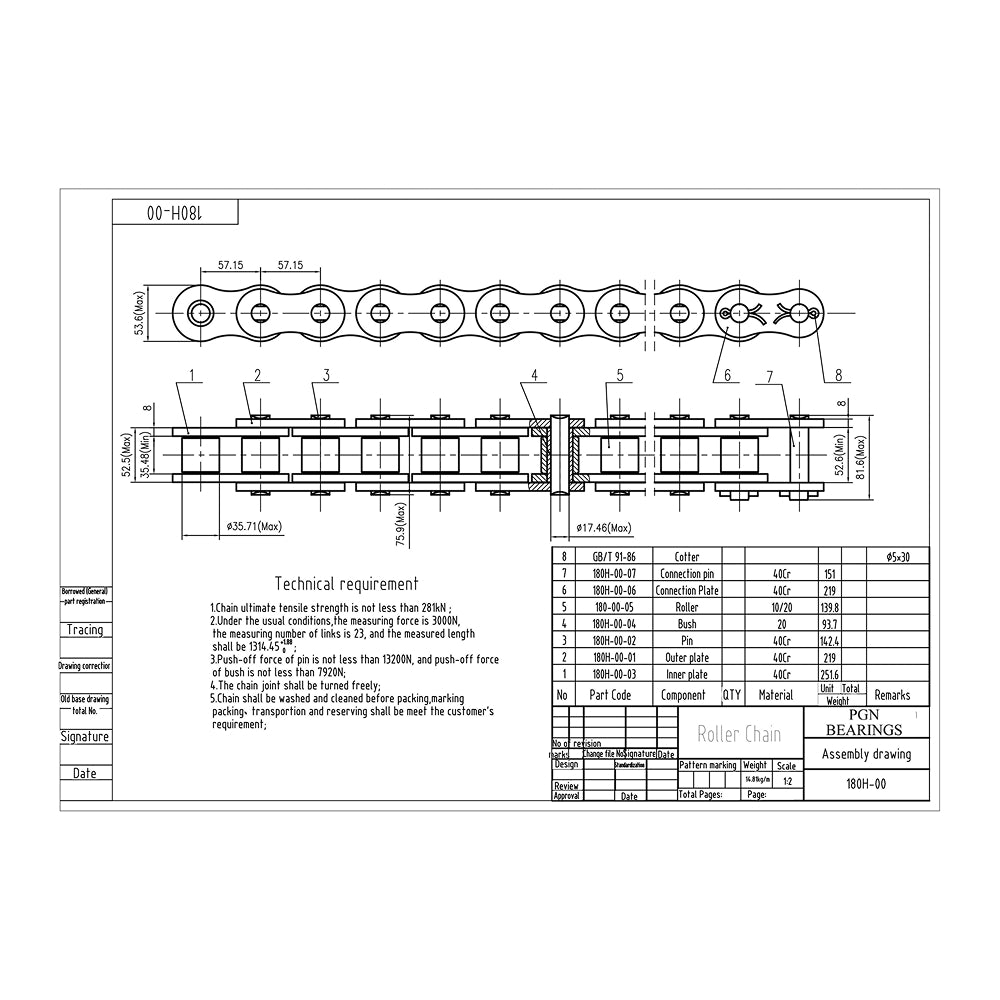

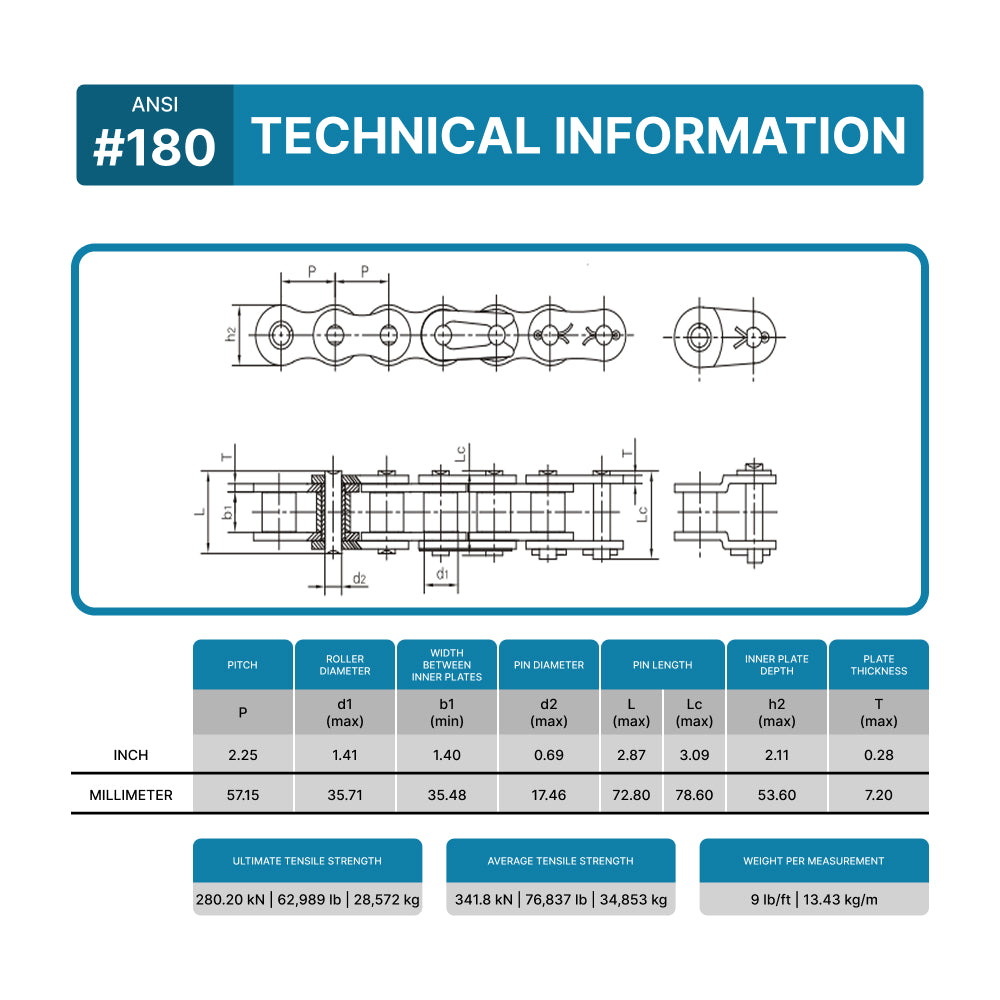

ANSI Chain No.: #180H
Lenght: 10 feet
Pitch (P): 2.25 inch (57.15 mm)
Roller Diameter (d1 max): 1.41 inch (35.71 mm)
Width Between Inner Plates (b1 min): 1.40 inch (35.48 mm)
Pin Diameter (d2 max): 0.69 inch (17.46 mm)
Pin Lenght (L max): 2.99 inch (75.9 mm)
Pin Lenght (Lc max): 3.21 inch (81.60 mm)
Inner Plate Depth (h2 max): 2.11 inch (53.60 mm)
Plate Thickness (T max): 0.31 inch (8 mm)
Ultimate Tensile Strenght (Q min): 280.20/63682 kN/LB
Average Tensile Strenght (Qo): 341.8 kN
Weight (q): 10 lb/ft (14.83 kg/m)
Lenght: 10 feet
Pitch (P): 2.25 inch (57.15 mm)
Roller Diameter (d1 max): 1.41 inch (35.71 mm)
Width Between Inner Plates (b1 min): 1.40 inch (35.48 mm)
Pin Diameter (d2 max): 0.69 inch (17.46 mm)
Pin Lenght (L max): 2.99 inch (75.9 mm)
Pin Lenght (Lc max): 3.21 inch (81.60 mm)
Inner Plate Depth (h2 max): 2.11 inch (53.60 mm)
Plate Thickness (T max): 0.31 inch (8 mm)
Ultimate Tensile Strenght (Q min): 280.20/63682 kN/LB
Average Tensile Strenght (Qo): 341.8 kN
Weight (q): 10 lb/ft (14.83 kg/m)
