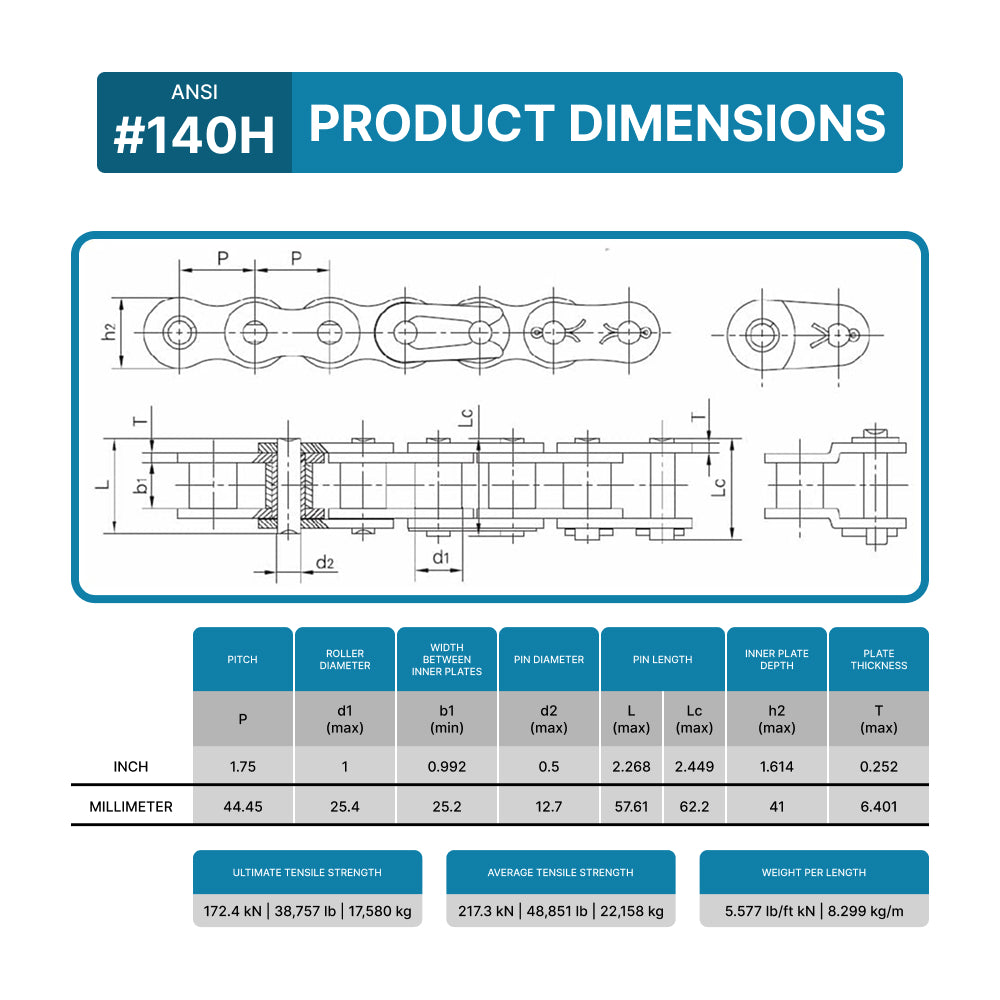

ANSI No |
#140H | LENGTH | 10 ft |
| PITCH | 1.75 inch (44.45 mm) | ROLLER DIAMETER (D1 MAX) |
1 inch (25.4 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.992 inch (25.22 mm) | PIN DIAMETER (D2 MAX) |
0.5 inch (12.7 mm) |
| PIN LENGTH (L MAX) |
2.268 inch (57.6 mm) | PIN LENGTH (LC MAX) |
2.449 inch (62.2 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.614 inch (41.0 mm) | PLATE THICKNESS (T MAX) |
0.252 inch (6.40 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
172.4/39182 kN/LB | WEIGHT | 5.577 lb/ft (8.3 kg/m) |
