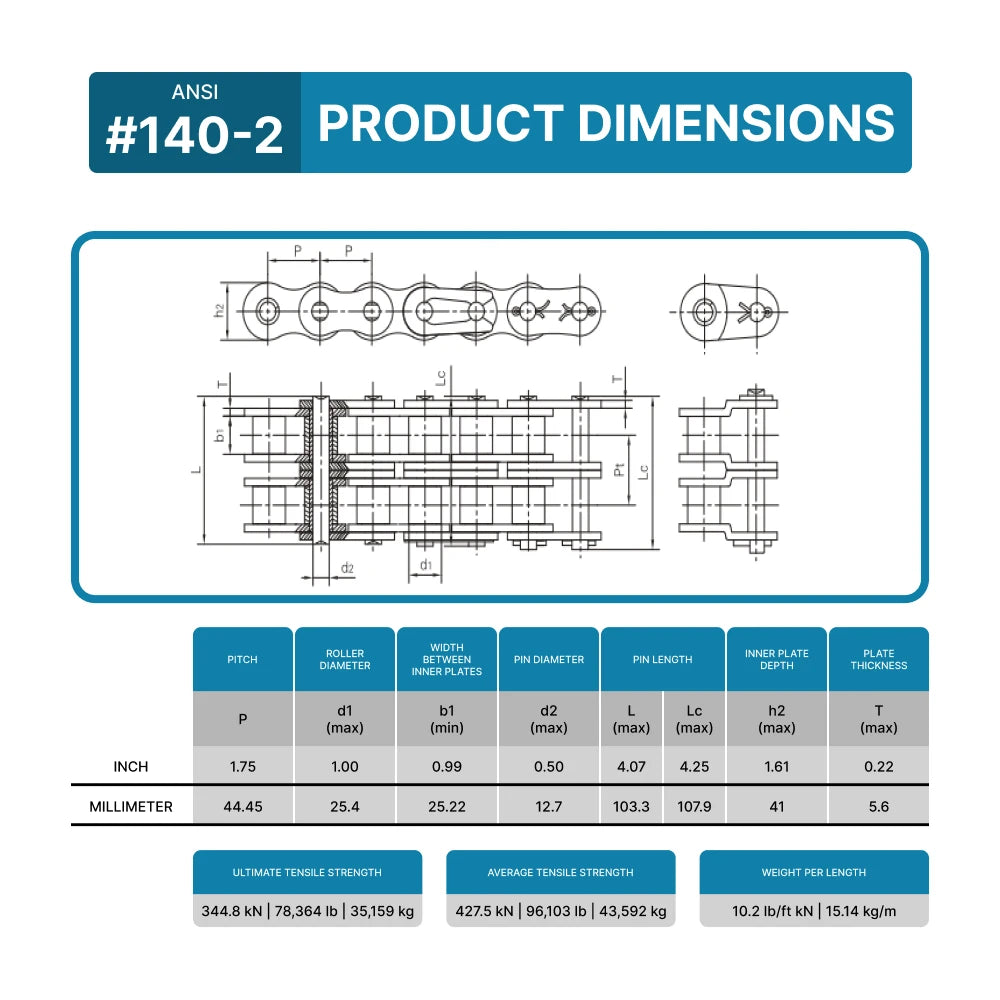

ANSI No |
#140-2 | LENGTH | 10 ft |
| PITCH | 1.75 inch (44.45 mm) | ROLLER DIAMETER (D1 MAX) |
1.00 inch (25.4 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.99 inch (25.22 mm) | PIN DIAMETER (D2 MAX) |
0.50 inch (12.7 mm) |
| PIN LENGTH (L MAX) |
4.07 inch (103.3 mm) | PIN LENGTH (LC MAX) |
4.25 inch (107.9 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.61 inch (41 mm) | PLATE THICKNESS (T MAX) |
0.22 inch (5.6 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
344.8/78,364 kN/LB | WEIGHT | 10.2 lb/ft (15.14 kg/m) |
